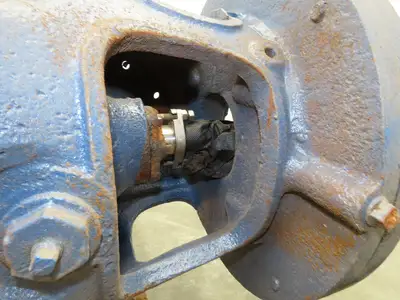

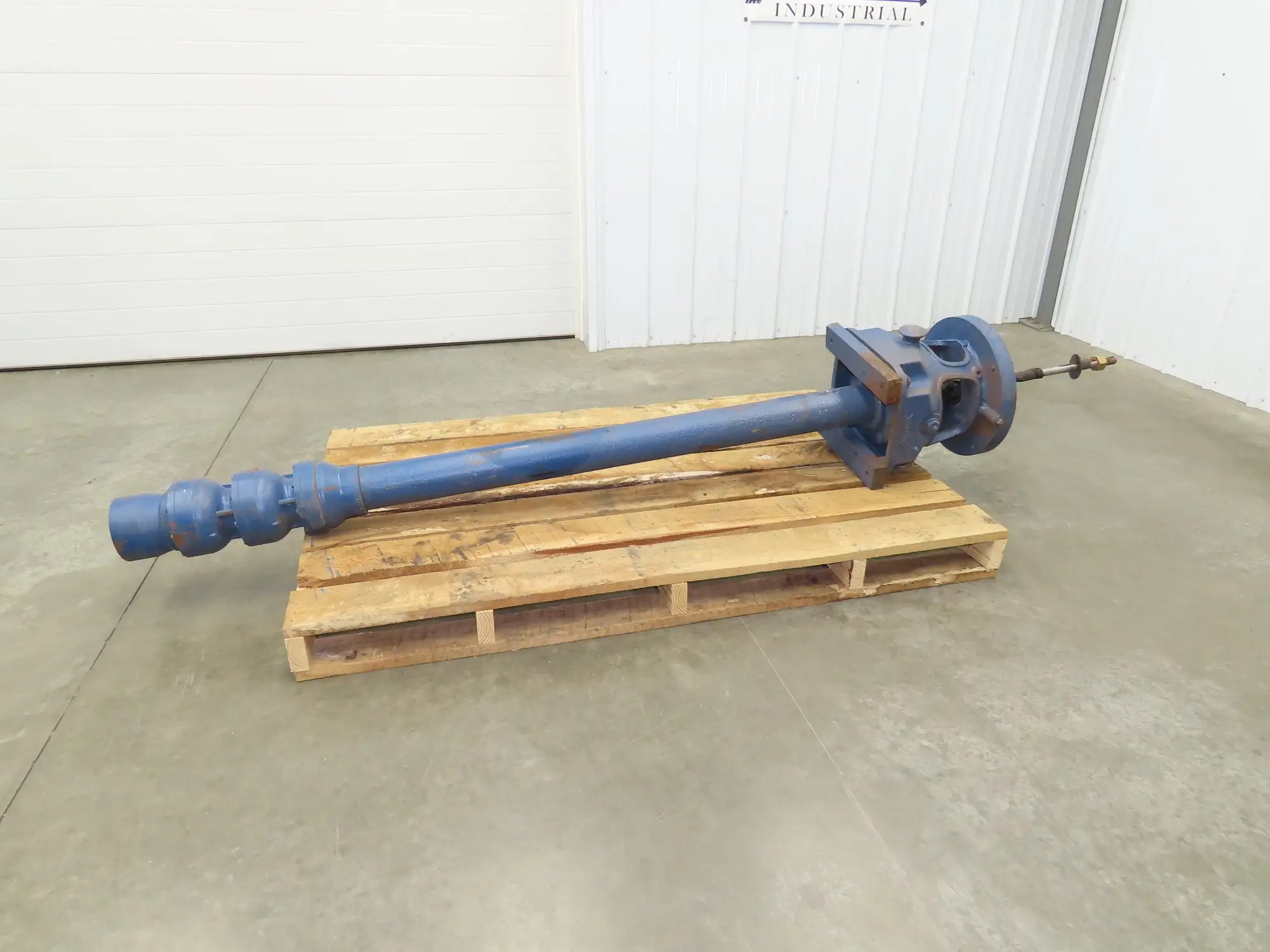

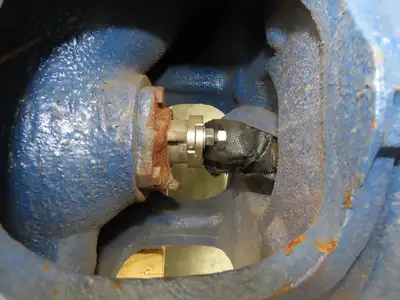

Vertical Turbine Pump 3-Stage 76"L Immersion 92"OAL (Rebuilt)

USD $2,849.99
1 available
Overview
Stock #:
305599
Specifications

Motor Specs: No motor, 1" shaft dia x 20-1/2" Length from mounting flange. Fits 184TP Motor Size.
Pump Type and Construction: Vertical Turbine Immersion Pump
Intake Size: 5-1/2" ID Threaded

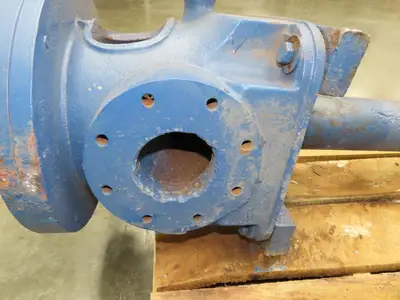

Discharge Size: 4" (9" Flange OD)
Immersion Depth (Length from flange to bottom of intake): 76-1/2" (14-1/4" Mounting flange)
Pump was rebuilt and not used since then.
Pump only, no motor.
92" Length from motor flange to end of pump.  Shaft extends 20-1/2" from mounting flange.
