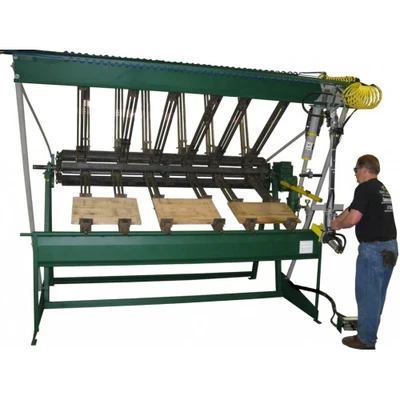

NEW TAYLOR CLASSIC CLAMP CARRIER

Simple Operation
Faster Uniform Clamping
Expandable
Economical
Available in Pneumatic & Hydraulic

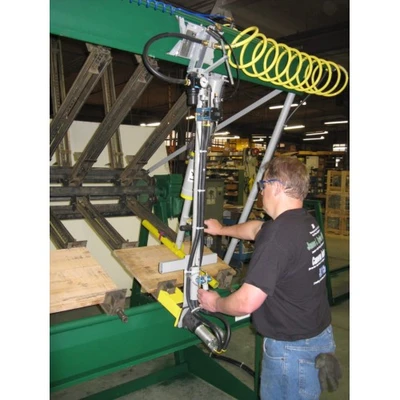

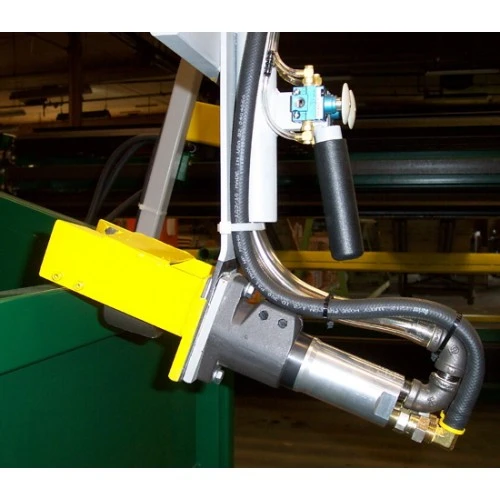

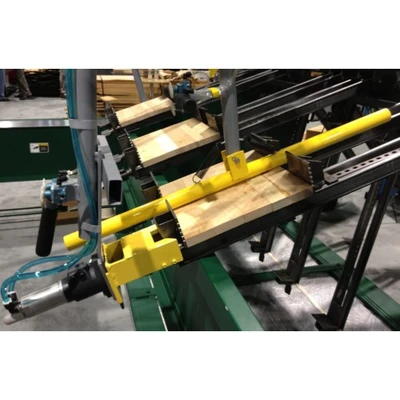

The Classic Clamp Carrier is our most versatile line of clamp carriers. Sizes range from 6 to 80 sections with widths up to 20-1/2' (6M) wide. Most machines are equipped with Hydraulic or Pneumatic Air Motor Drive for rotation, Clamp Tightener and Panel Flattener. The smaller machines work well with the Plate Spreader (manual glue applicator). As with all Taylor Clamp Carriers, smaller machines can be expanded as production requirements grow. The Classic Clamp Carrier is an ideal clamping system when a wide variety of products are to be glued.
Production :
Production is based on cycle time and panel size. Assuming that each section is curing 3 panels whose dimensions are 24" x 24" (60cm x 60cm) and assuming a cycle time of 2 minutes, production per shift equals :
One Panel :
= 4 ft2 (.36M2)
One Section :
=12 ft2 (1.1M2)
One Cycle :
= 2 minutes
= 30 cycles/hour=210 cycles/shift
Production output :
=12 ft2 x 210 cycles or 2520 ft2/shift
=1.1 M2 x 210 cycles or 231 M2/shift
