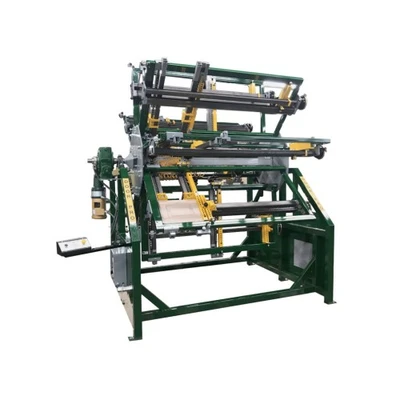

NEW JLT SECTION MITER DOOR PRO

The JLT 8 Section Miter Door Pro Clamp is designed for the medium to large door shop that clamps either large door production runs or a kitchen at a time. All clamps and clamping bars easily reposition for changing door sizes.
The (8) Section Taylor Door Pro clamping system is designed for the medium to large door shop that clamps either large door production runs or a kitchen at a time. Our design lends itself to fast changeovers, so switching from Door to Door easy and efficient. This will keep a high production rate in a one piece workflow style of manufacturing.
How it Works:

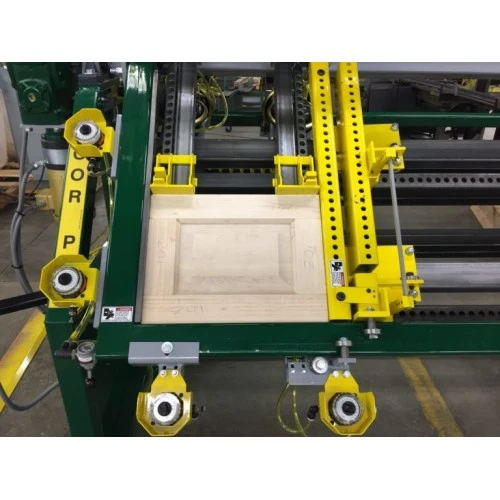

In a typical large door shop glue is applied and components assembled on an assembly table by an Operator. The door is placed in a section and clamps adjusted by a 2nd operator. The cylinders are activated by one valve which first creates side pressure pushing the door to the left side square, a second later the vertical clamps are activated to create pressure on the glue joints. The first operator works on the next batch of parts by applying glue and loosely assembling the door while the second operator quality checks the door under pressure and wipes away any excess glue.
A motor drive is used to rotate the next section. The cured door is removed and new components are placed in that section for clamping. Our (8) section Door Pro can produce up to 400+ doors in an 8 hour shift. This equates to approximately 1 minutes per door and a clamping time of 8 minutes.
