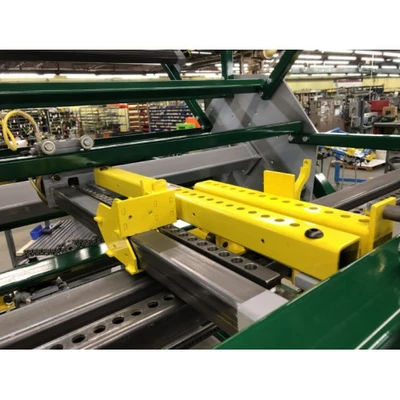

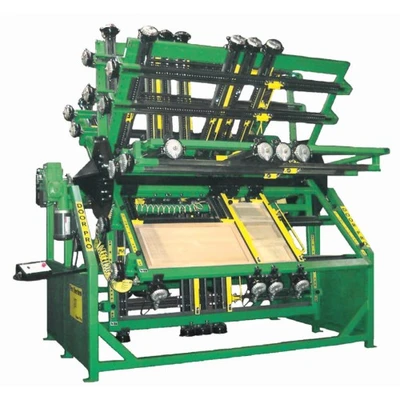

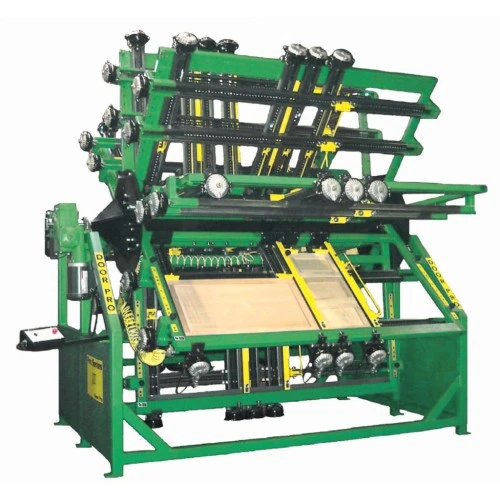

NEW JLT SECTION LARGE CAPACITY DOOR PRO

How it Works:
In a typical door shop glue is applied to multiple parts and components assembled on an assembly table. The doors are placed in a section and clamps adjusted. The cylinders are activated by one valve which first creates side pressure pushing the door to the left side square, a second later the vertical clamps are activated to create pressure on the glue joints.
A motor drive is used to rotate the next section. The cured door is removed and new components are placed in that section for clamping. Our (5) section Door Pro can produce up to 300+ doors in an (8) hour shift. This equates to approximately 2.5 minutes per section and a clamping time of (12) minutes

Features:

Benefits
