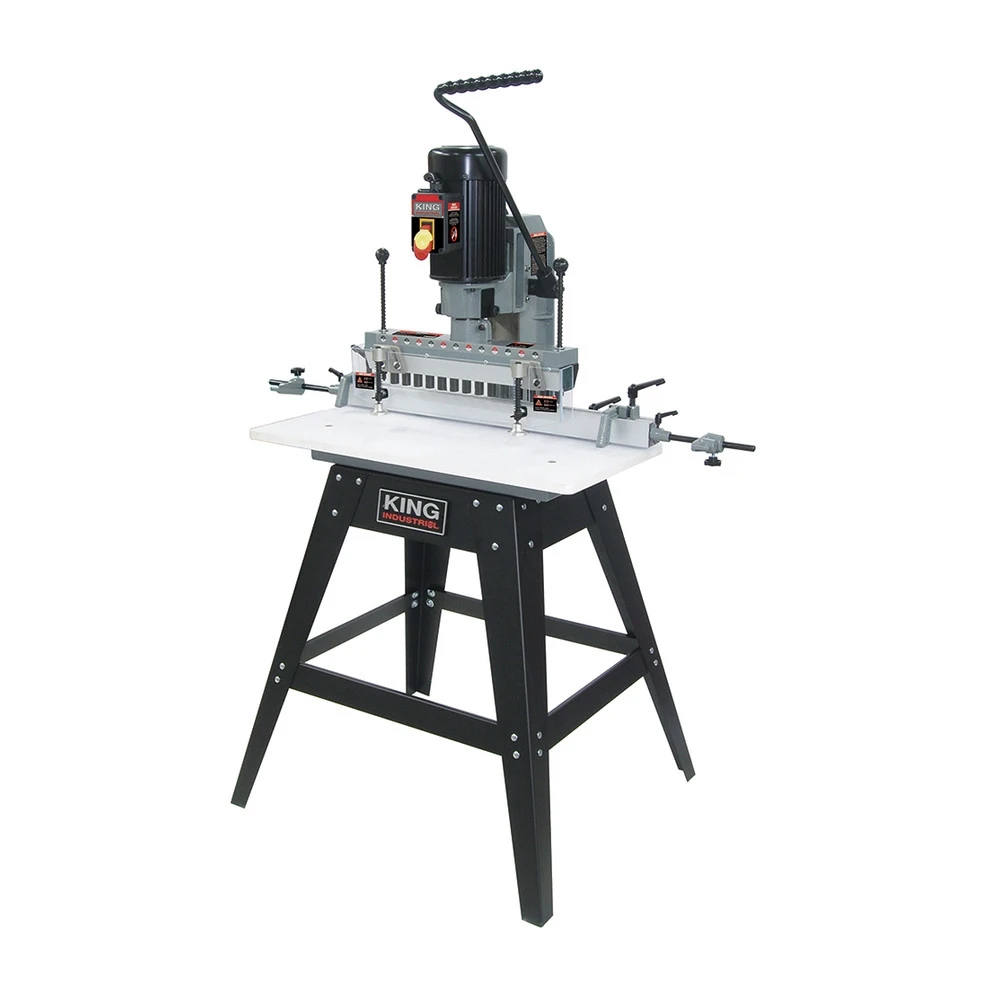

13 Spindle Boring Machine

Powerful 1.5 HP, 110V motor Designed for simultaneous multi-hole line boring or drilling, ideal for cabinet makers or shelving applications  13 spindles spaced 32mm (1-1/4") on center, allowing drilling up to 13 evenly spaced holes Fully adjustable aluminum fence with work stops at each end to line up workpiece from the right or left to perform parallel boring patterns Indexing pins allow correct spindle alignment for resuming line boring operations in long workpieces  Large 31-1/2" x 15-3/4" melamine table top  Comes complete with open steel stand  Note: Requires 6 left and 7 right 10mm shank boring bits (not included)   NUMBER OF SPINDLES 13 COLLET SIZE 3/8" (10 mm) SPINDLE CENTRES 32 mm (1-1/4") SPINDLE SPEED 3,500 RPM TABLE SIZE 31-1/2" x 15-3/4" MAXIMUM DEPTH OF STROKE 2-1/2" MAXIMUM STOCK THICKNESS 5-1/2" MOTOR 1-1/2 HP, 12.6 Amp. VOLTAGE 110V, 1 phase, 60 Hz ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT 76" x 28-1/2" x 67" / 215 lbs PACKAGING DIMENSIONS (LXWXH) / WEIGHT 34-1/4" x 21-1/4" x 28-1/4" / 225 lbs

UPC: 773000000000
Width: 76.00
(in)
Height: 67.00
(in)
Depth: 28.00
(in)
Shipping: Calculated at Checkout
