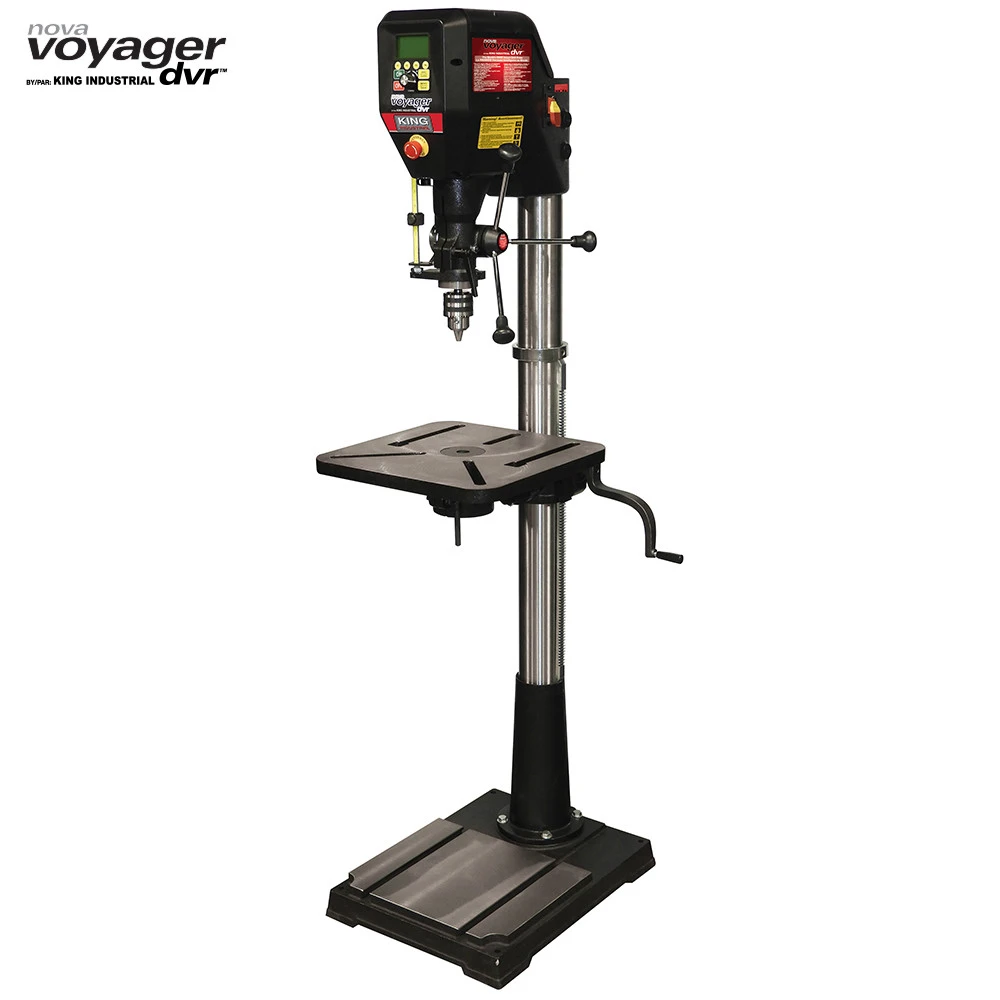

18'' NOVA VOYAGER DVR DRILL PRESS

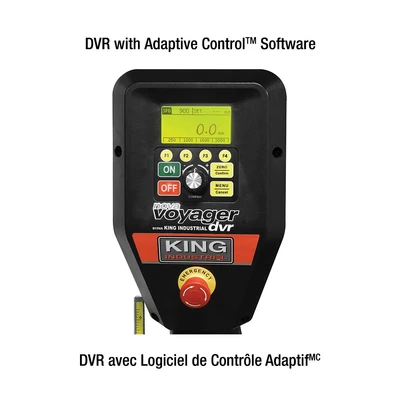

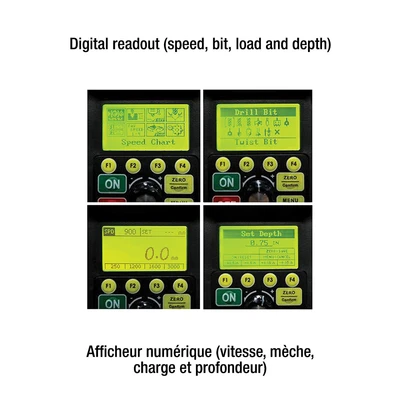

The world’s first smart drill press combines common drill press features with state of the art technology Powerful direct drive 1.75 HP high torque motor with no pulleys or belts to cause vibration  Digital Variable Reluctance (DVR) Direct Drive Technology with Adaptive Control (TM) Software which works for you to produce optimum results in wood, metal, plastic and glass  Constant torque under load, depth and vibration sensors and emergency stop  Slow start pilot hole, tapping assist with chip breaking cycle and self start functions  Intelligent speed selection and dial knob for precise speed adjustments  Electronic braking and forward/reverse  Comes with 5/8" drill chuck & key, firmware USB cable, knock-out wedge, adjustment wrench and hex. keys   Note: The firmware version of the HMI can be upgraded via USB cable accessory and a PC with internet access CAPACITY 5/8" CHUCK SIZE 5/8" SWING 18" MAX. DISTANCE CHUCK TO TABLE 23-1/8" MAX. DISTANCE CHUCK TO BASE 40-7/8" STROKE 6"  TABLE SIZE 16-1/2" x 16-1/2" SPINDLE TAPER MT #2 QUILL DIAMETER 75 mm VARIABLE SPEED RANGE (OPTIONAL SETTING)50 - 3,000 RPM (3,000 - 5,500) MOTOR 1.75 HP, 15 Amp. VOLTAGE 120V, 60 Hz, 1 phase ASSEMBLED DIMENSIONS(LXWXH) / WEIGHT 17-5/8" x 22-3/4" x 70-5/8" / 284 lbs PACKAGE DIMENSIONS(LXWXH) / WEIGHT 62-3/4" x 27" x 17" / 325 lbs

UPC: 772995015443
Width: 18.00
(in)
Height: 71.00
(in)
Depth: 23.00
(in)
Shipping: Calculated at Checkout
