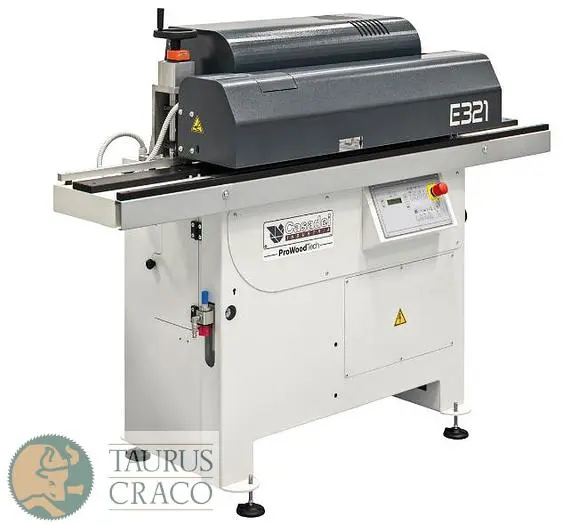

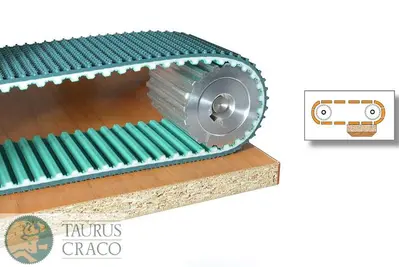

Casadei E321 automatic edgebander with hot-melt glue pot (EVA) and belt panel feeding Very good bonding Ready to use in a few minutes East cleaning and maintenance Quick edge changing Quick adjustments according to edge used Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages | Please contact TCMI customer service for more information. --- ** Note: Information on or derived from the attached PDF document may not apply to listed machine.**
Working table dimensions: 1,800 x 300 mm
Panel thickness: Min-max 10-34 mm
Edge thickness: Min-max 0.4-2.- mm
Minimum panel width: 110 mm
Minimum panel length: 220 mm
Feeding speed: 7 mt/1'
Heating elements power Nr. 6: 1,490 kW
Flush trimming motor: 0.37 kW
Machine dimensions: 80'' x 48'' x 52'' (2,040 x 1,230 x 1,320 mm)
Machine weight: 534 lbs (242 kg)
