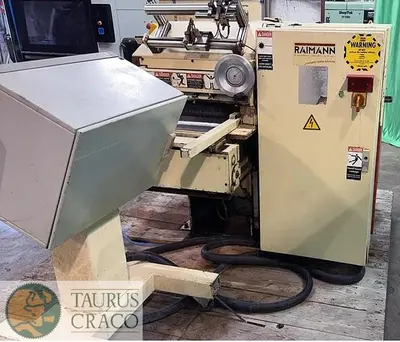

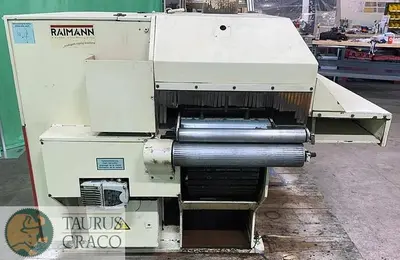

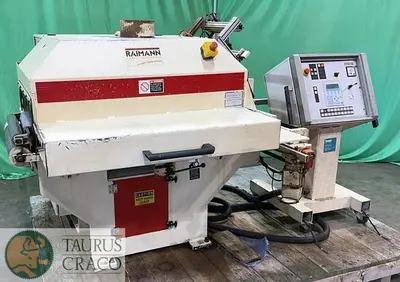

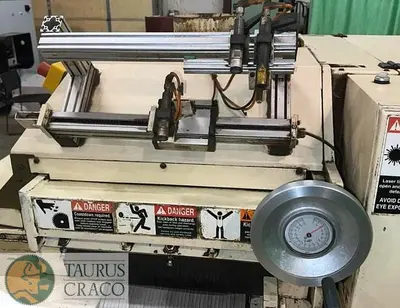

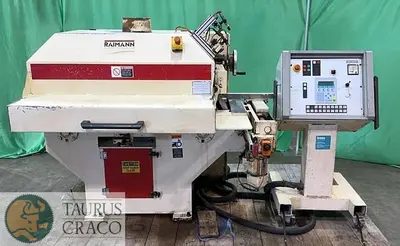

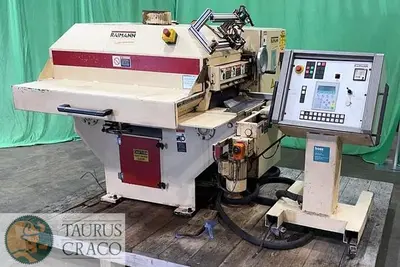

USED 2001 RAIMANN VARIORIP KM 310 BV GANG RIP SAW

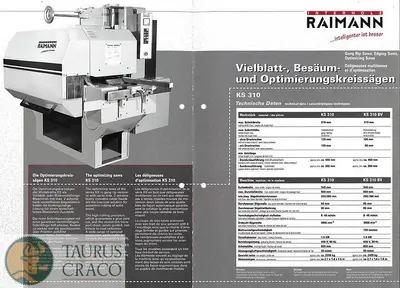

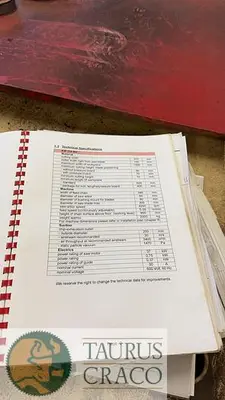

Raimann VarioRip 310 BV - Features and Specifications: Material Cutting width: (310 mm) Outlet width right from saw blade: (150 mm) Maximum width of workpiece: (1000 mm) Maximum cutting height, blade postitioning Without pressure board: (80 mm) With pressure board: (70 mm) Minimum cutting height: (10 mm) Machine Width of feed chain: (340 mm) Diameter of saw arbor: (65 mm) Diameter of bushing mount for blades: (80 mm) Diameter of saw blade maximum: (300 mm) Saw-arbor speed: 4200 RPM Feed speed (continuously adjustable): (5-35 m/min) Height of chain surface above floor (working level): (850 mm) Suction: Chip-exhaust outlet: Outside diameter: (200 mm) Airstream recommended: (30 m/s) Air throughput at recommended airstream: (3,400 m^3 / hour) Static particle vacuum: 1480 Pa Electrics: Power rating of saw motor: (37 kW) Power rating: (0.75 kW) Power rating of guide: (0.37 kW) Nominal current: 50 A Approximate dimensions: 75" x 75" x 60" Approximate weight: 4,409 lbs (2,000 kg) Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages | Please contact TCMI customer service for more information.  --- ** Note: Information on or derived from the attached PDF document may not apply to listed machine.**

Voltage: 600V / 60Hz
