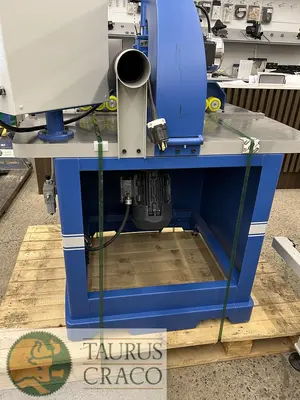

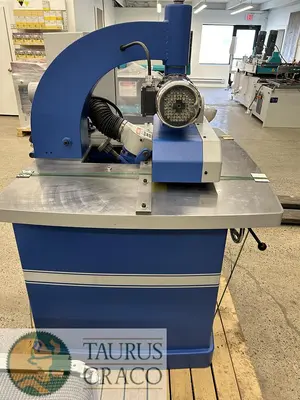

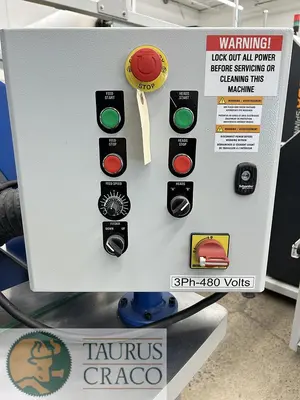

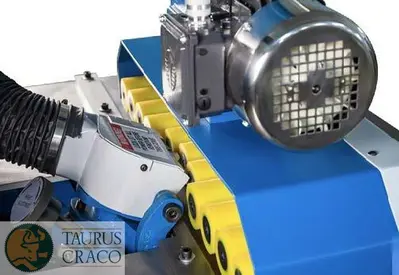

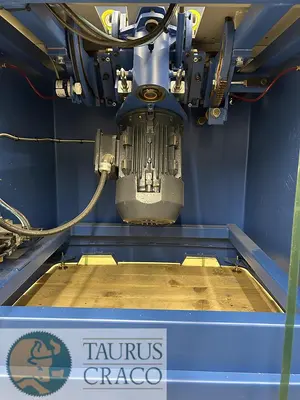

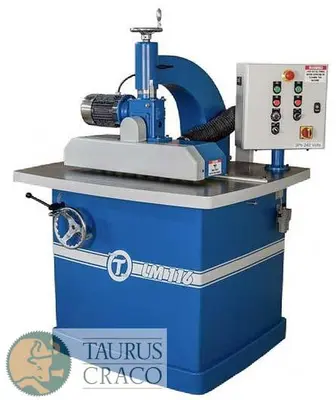

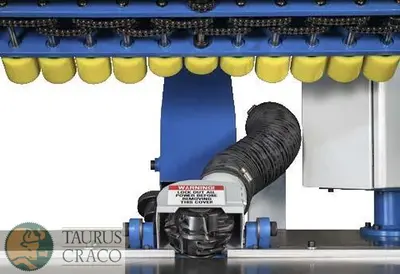

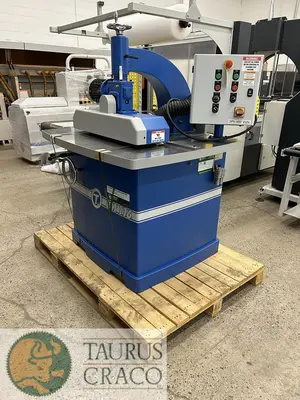

The Circle T LM116 Lock Miter Machine, a standout in woodworking. This machine is engineered for precision and simplicity, making it a go-to for crafting lock miter joints. It’s widely used for projects like face-frame cabinetry, beams, pillar and column wrapping, box newel posts, and even solid surface work. Its key features really shine: Single Pneumatic Powered Tilting Spindle: Cuts both A and B profiles without needing separate setups, streamlining the process. No Downtime: Forget the hassle of constantly tweaking or swapping out tooling—once it’s set, you’re good to go. No Side-Running: Pieces stay flat, saving time and reducing awkward handling. The “EASY LOCK MITER LM116” upgrade seems to promise even smoother operation, likely with enhanced controls or adjustments. It’s a solid pick for anyone looking to boost efficiency and nail those tight, clean joints every time. APPLICATION SPECS: • Maximum Material Thickness: 1" • Minimum Material Thickness: 1/2" • Minimum Material Width: 1-1/4" • Minimum Material Length: 12" • Capable of Machining Angles from 90 - 30 Degrees (Finish Angle) • Feeder Speed 5-30 FPM DRIVE PACKAGE SPECS: • Spindle Motor: 5 HP, 230/460v, 3ph • Feed Motor: 0.5 HP • Spindle Diameter: 1-1/4" • Spindle Speed: 8,200 RPM • Variable Speed 11-Roll Positive Grip Feeder UTILITY REQUIREMENTS: • Dust Collection Requirements: 670 CFM, 4" Outlet • Pneumatic Requirements: 100 PSI .5 CFM • 25AMP Disconnect at 480 3 phase DIMENSION SPECS: • Table Size: 40" x 47" • Footprint: 54"W x 42"L x 60"H • Shipping Dimensions 57”L x 48”W x 76"H • Shipping Weight 1,400 LBS
