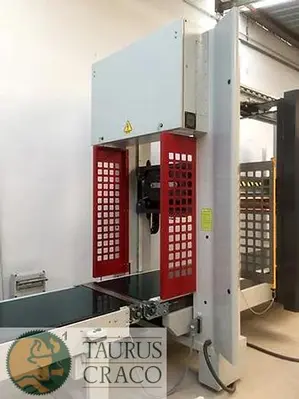

USED DYNMA VK-015 AUTO-ADJUSTABLE ELECTRO-MECHANICAL PRESS

The Dynma VK-015 Auto-Adjustable Electro-Mechanical Press is the result of Dynma experience in the furniture assembly industry. With the adoption of new and advanced technology based on electronic control and using a wide range of high quality mechanic components, results an auto-adjustable press with high performance and high standard of safety, a suitable option for assembling lines with high production rates. Features and Specifications:  WORKING SIZES: Max. / Min cabinet length (X): 2.500 / 300 mm Max. / Min cabinet height (Y): 1.250 / 230 mm Max. / Min cabinet width (Z): 700 / 220 mm PRESS STRENGTH Max. lateral strength (Fx): 1.600 Kg Max. vertical strength (Fy): 2.000 Kg TRANSPORT SYSTEM PVC conveyor belt width (b): 700 mm Transport speed: 10-35 m/min Standard transport height (at): 500 mm Pre-assembly area length (lp): 2,200 mm ELECTRICAL CONNECTION Voltage / frequency: 400V / 50Hz Electrical power: 6 kW PNEUMATIC CONNECTION (B & C options) Min. working pressure: 5 bar Consumption: 2 Nl/min Overall dimensions / weight: Transport dimensions (L x W x H): 258'' x 103'' x 60'' (6,550 x 2,600 x 1,500 mm) Weight: 5,732 lbs (2,600 kg) Place dimensions (L x W x H): 258'' x 105'' x 77'' (6,550 x 2,650 x 1,950 mm) Benefits: Auto-adjustable press  High production rates Programable touchscreen. Conveyor belt with adjustable speed Pre-assembling area integrated “CE” Safety Standards Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages – Please contact TCMI customer service for more information.  --- ** Note: Information on or derived from the attached PDF document may not apply to listed machine.**

Voltage: 400V
