NEW CASADEI INDUSTRIA E450 PM
Overview
Casadei E450 PM Automatic Edgebander with hot-melt glue pot (EVA), chain panel, feeding, and pre-milling.
Superior finishing quality in a compact design
Chain feeding system for edge stability throughout production
Pre-milling unit with 2 HF motors (12,000 rpm) and 2 diamond cutterblocks to obtain an invisible glue line
Interchangeable "Flex" Teflon-coated glue pot unit
End trimming unit with 2 blades (front and rear) performed by 12,000 rpm motor
Flush trimming units with 2 High Frequency motors
Edge scraping unit for perfect plastic edges
Anti-adherence release agent spray unit provides optimal cleaning
Buffing unit with independent motors
7 m/min feed speed
8 - 45 mm panel height
0.5 - 3 mm edge coils
5 mm solid wood strips
Specs
Voltage: 230 V
Min./max. panel height: min 8 - max 45 mm
Minimum panel width: 95 mm
Minimum panel length: 210 mm
Feeding speed: 7m/min
Pre-milling motors (each): 200 Hz - 12.000 RPM - 0.75 kW
Glue pot heating element: 1490 W - Nr. 6 cartridges
End trimming blade rotation speed: 9,000 RPM
End trimming motor: 50 Hz - 0.18 kW
Flush trimming motors (each): 200 Hz - 12.000 rpm - 0.22 kW

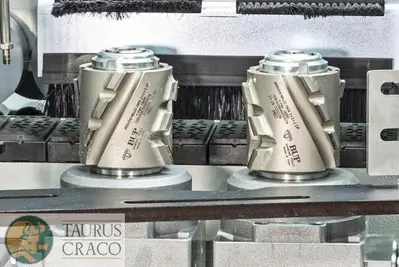

Cutterblocks with combined WIDIA disposable knives (radius / bevelled): Ø 75 mm Z4 - hole Ø 16 mm
Total power installed: 5 kW approx.
Machine dimensions: 111'' x 25'' x 74'' (2,830 x 640 x 1,880 mm)
Machine weight: 926 lbs (420 kg)
