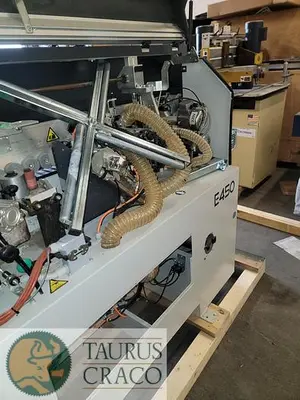

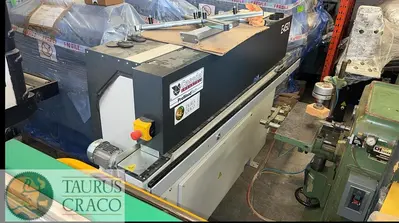

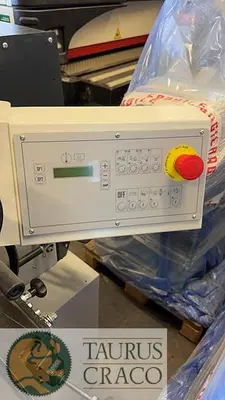

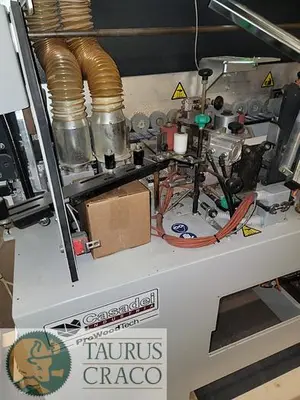

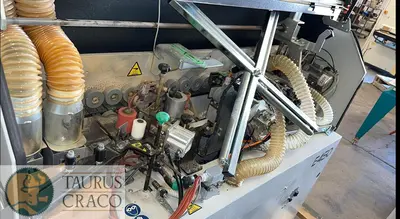

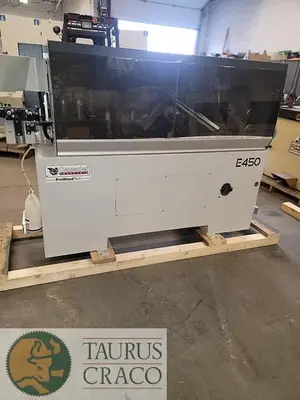

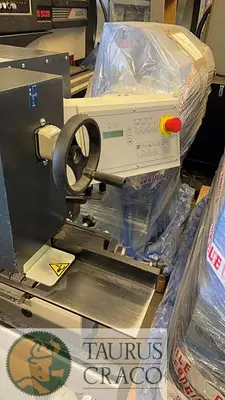

USED 2022 CASADEI INDUSTRIA E450 PM AUTOMATIC EDGEBANDER (WITH VR END TRIMMING)

Casadei E450 PM VR Automatic Edgebander - Features and Specifications: With VR end trim unit for straight/radius trimming (Multifunction head trimming group instead of standard automatic head trimming group) Feed speed: 23 feet/min Panel thickness: Min. 0.3" - max. 1.8" Edge thickness in coils: 0.4 ÷ 3 Edge thickness in strips (manual feeding): 0.2" Maximum coil diameter: 31.5" Minimum panel length (side being processed): 8.3" Minimum panel width: 3.7" Pre-Milling Unit: Maximum milling: 0.08" HF motors (high frequency): 2 x 1 HP Dimensions of diamond cutterblock: Ø 2.4" / H = 2.1" Tool rotation speed: 12,000 RPM Gluing Unit Heating elements power (6 cartridges): 2 HP Glue heating time from ambient temperature: 14-16 mins Glue heating time from stand-by: 4 - 6 mins Glue pot capacity: 2.2 lbs Standard end trimming unit: Motor power: 2 x 0.5 HP Blade rotation speed: 11,000 RPM Flush trimming unit: Motor power: 2 x 0.5 HP Tool rotation speed: 12,000 RPM Approximate dimensions: 111" x 40" x 55" Approximate weight: 926 lbs Taurus Craco offers - start-up supervision service | turnkey installations | operator training | machine reconditioning | PM service packages | Please contact TCMI customer service for more information.  --- ** Note: Information on or derived from the attached PDF document may not apply to listed machine.**

Voltage: 230V
