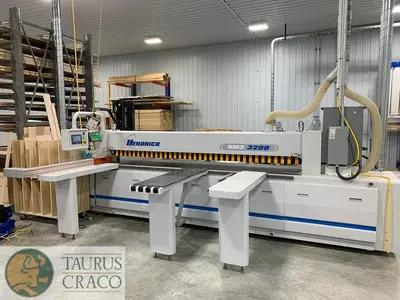

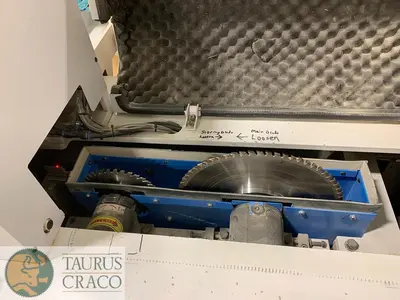

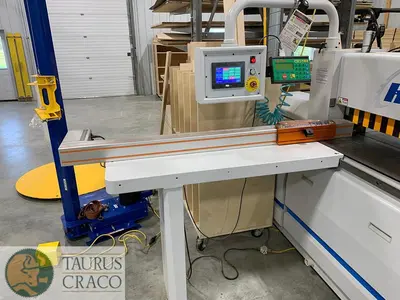

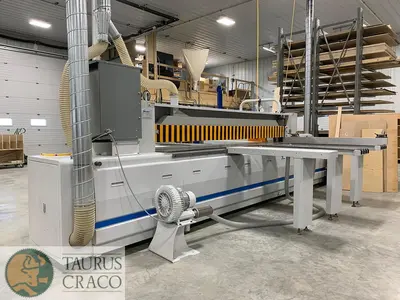

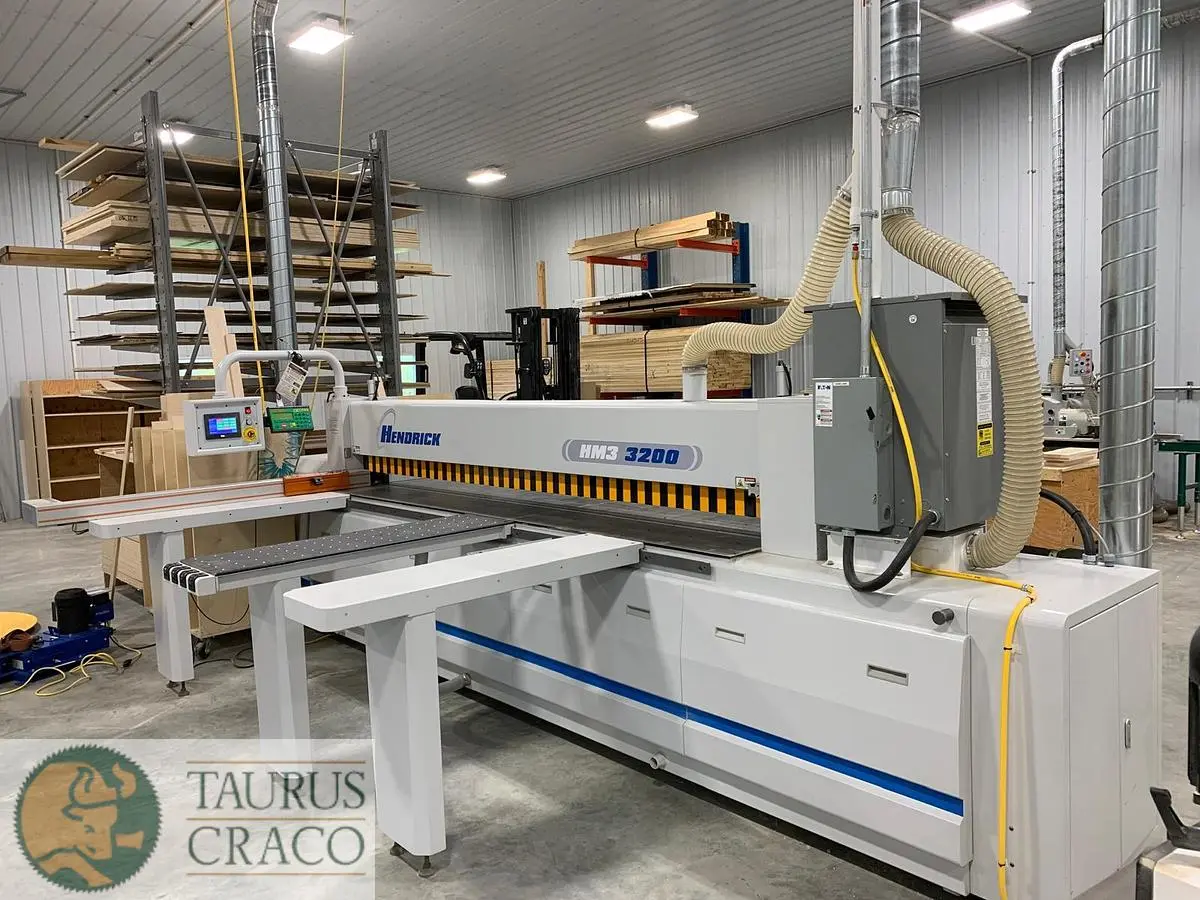

Automatic Panel/Beam Saw The HM3 Horizontal Panel Saw delivers heavy-duty performance as a smarter, more cost-effective alternative to sliding table saws. Upgrade to a fully automatic machine that’s safer, more powerful, and incredibly easy to operate. Start cuts and adjust speeds instantly with simple push-button controls. Load and unload sheets effortlessly thanks to built-in air-flotation tables, while the full-length pneumatic pressure bar clamps stacked panels securely for clean, chip-free results every time.If you’re ready to boost speed, precision, and throughput in your shop, the HM3 is the professional-grade solution your production line has been waiting for. Application(s): Configured for cutting solid or stacked wood sheet. Power Requirements: 220V, 3 Phase, 60Hz, 60A Length of cut: 126” + Depth of Cut: 3” + Main Saw Motor: Powerful 15 HP, 3 Phase, 4 Pole Carriage feed motor: 1.5 kW AC Servo System driving linear rack & pinion gear system. Main spindle speed: 4500 RPM Scoring spindle speed: 6700 RPM Max Feed Rate: 2,800 “/min. Max cutting speed: 1,800 “/min. Main saw blade size: 14” Diameter x 75mm Bore Scoring saw blade size: 7” Diameter x 30mm Bore Material support Air tables Includes upgraded transformer, and a Tigerstop fence.
Voltage: 380V / 3Ph / 60 Hz
Made in: USA
