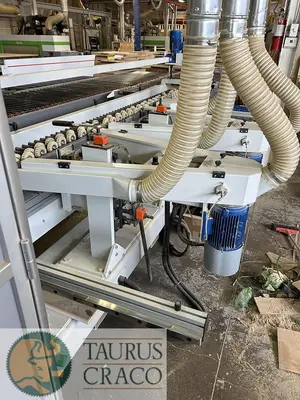

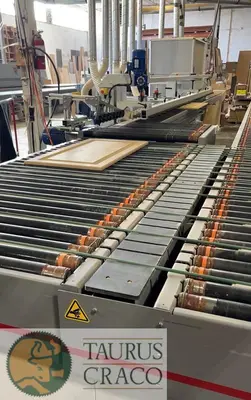

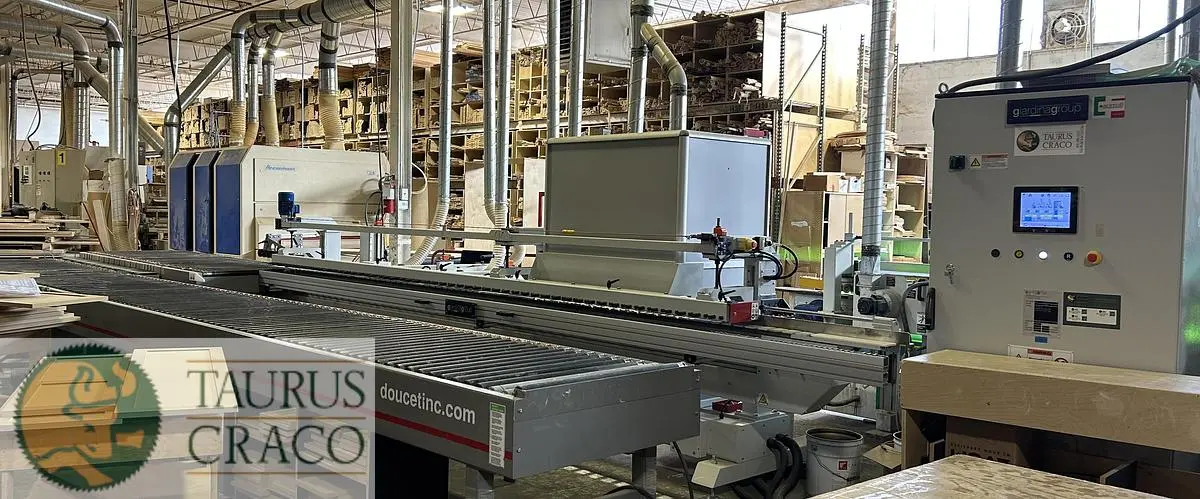

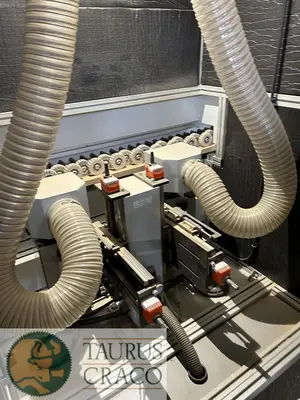

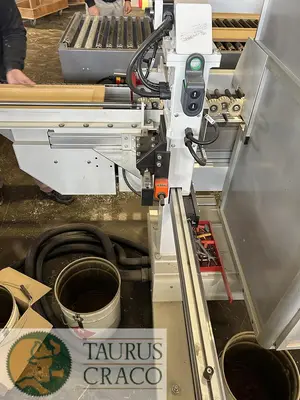

USED 2024 GIARDINA DESTEFANI MVT 5000 W/ DOUCET RETURN CONVEYOR

pos. 1 - TP L-M wheel unit with timed intervention (Milling UNIT) pos. 2 - TP L-F wheel unit (Milling UNIT) pos. 3 - AT belt unit pos. 4 - AT belt unit pos. 5 - SB wheel unit Working side: 1 - single side machine Processing: sanding Min. length: 200 mm Min. width: 50 mm Max. Thickness: 100 mm Variable feeding speed by inverter: from 5 to 25 m/min Feed motor power (with inverter): 1.5 kW Working height (+/- 30 mm): 900 mm Total installed power: 8.5 kW Voltage: 480 V (3 phases,60 Hz+NEUTRAL WIRE) Machine colours: RAL 7035 light grey Machine length: see drawing Machine width: 1,700 mm Machine height: 1,500 mm Safety devices: CE Compressed air feeding : 6 ÷ 8 Bar Piece loading-Unloading: Manual Extracted air consumption: 5,500 m³/h (at speed of 25 /sec) Dust suction ports: Nr. 2 - Ø 120 mm & Nr. 5 - Ø 100 mm
