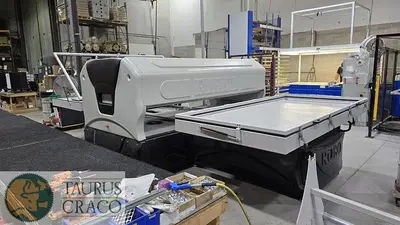

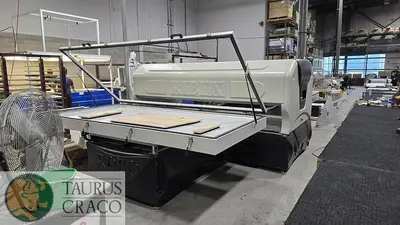

USED 2019 RIBEX ROBO VACUUM PRESS

**Video is for reference only - Not actual machine** The new generation RIBEX Vacuum Press Machines enable flat or 3D lamination of PVC foils, veneers, and other materials onto MDF, chipboard, and plywood. Ideal for furniture, doors, and cabinets, they use advanced quartz heating and vacuum press technology for precise results. Equipped with an optional silicone membrane and a fully automated touchscreen PLC system with cooling fans, these machines maximize efficiency and production speed. Table Frame Dimension:2870 * 1440 mm Table Usage Area:2710 * 1230 mm Maximum Working Thickness:90 mm Pump Motor Power:2,2 Kw Pump Motor Speed:1450 rpm Pump Extraction Capacity:100m³ / h Noise Limit:68 Dba Max Temprature:140° C Total Power:26,5 Kw Total Operation Time:4 - 5 Min. Average Weight Single Table:1350 Kg Average Weight Double Table:1750 Kg Dimensions Single Table (WxLxH):3400*3600*1850 mm Dimensions Double Table (WxLxH):3400*5300*1850 mm

Voltage: 380V / 3Ph / 60 Hz
