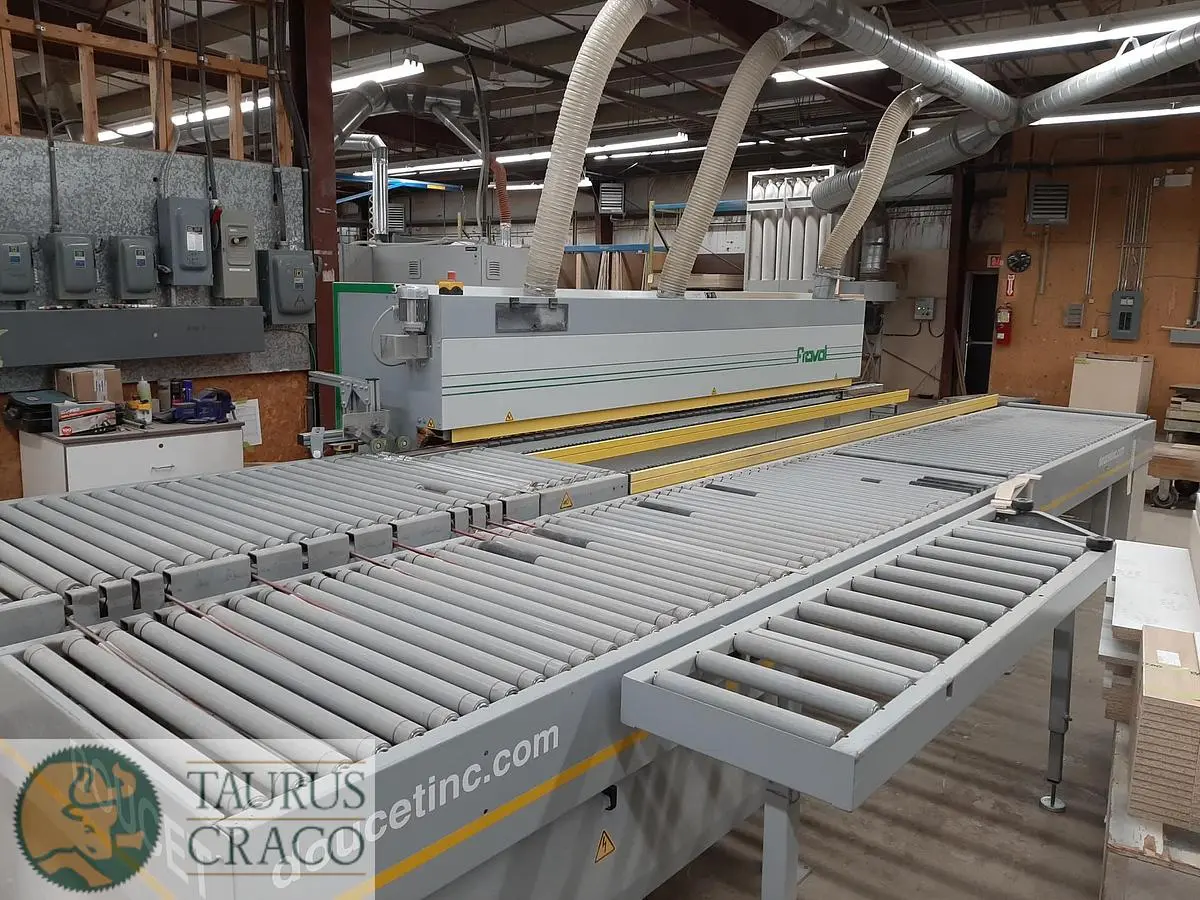

Fully Functional With 19' return • Minimum part sizes on conveyors: 12" x 12" • Minimum part sizes on conveyors if equipped with panel deviator: 4" x 12" • Maximum panel sizes feeding all 4 sides: 52" x 52" • Maximum panel sizes feeding long sides: 52" x 96" • Maximum panel sizes feeding short sides if equipped with PT-90 Turner Option: 36" x 90" • Maximum panel weight capacity: 80 lbs • Thin and lower density panels may reduce the maximum size capacities of the return conveyor • a 36" wide x 5' long receiving conveyor with 2" 0 pvc rollers on 3" centers • a 36" wide x 19' long return conveyor with 2" 0 pvc rollers on 3" centers • a belt transfer device 6" wide featuring 9 transfer belts • a transfer by-pass switch o voltage: 220, 440 or 600 / 3 / 60, 8 amps • compressed air requirement: 10 cfm @ 90 psi • a left hand return A PT-90 panel turner to return long rectangular panels lengthwise rather after finishing of their narrow side and outfeed pressure 8-wheel kit with rheostat covered wheels for automatic thickness adjustment from 5/8" to 1-1 /8".
Voltage: 600V / 3ph / 60 Hz
