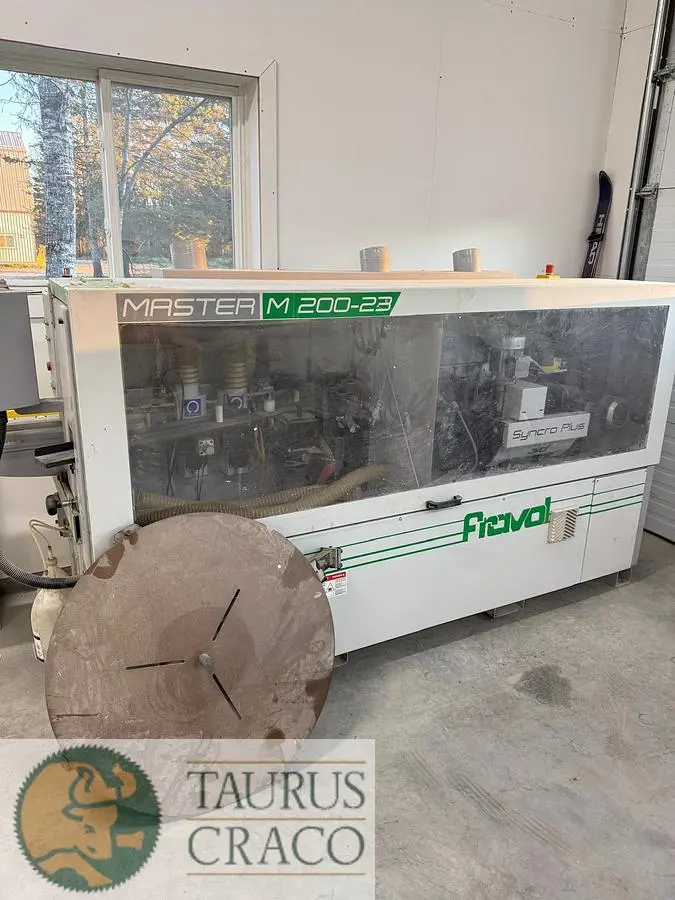

USED 2018 FRAVOL M200-23 EDGEBANDER

The Fravol Master Series machines is a semi-automatic edgebander created to meet space needs without giving up quality. The machines provide solutions, applications, and technologies in just a 3 meter space. With a fresh design and compact shape, they are versatile and easy to use, have multi-profile units for rapid set-up, color touch screens, and PLC electronic controls. These models feature the Fravol patented Syncro Plus corner rounding unit that is used for both end trimming and corner rounding.

STANDARD FEATURES:
 Color touch screen  Revolving longitudinal coil holder  1.1+0.75 kw Ø 60 pre-milling unit (RT/F)  Loading device  1kg Teflon-coated glue tank  Eco-mode system  Pressure rollers for straight edges  3mm shear  Rough trimming / bevel trimming unit (RF-F)  Corner rounding unit (Syncro Plus)  Soundproof booth with LED interior lighting

460V 60HZ 3PH,
5.9KW 22.8A,
PLC TOUCH CONTROL,
QUICK HEATING - START UP IN 6-8 MINUTES
GLUE POT CAPACITY: 1 KG
PANEL THICKNESS STANDARD 10 to 45 mm
PANEL WIDTH MINIMUM 80 mm
PANEL LENGTH Min 120 mm
EDGE WIDTH 12 to 48 mm
EDGE THICKNESS 0.4 to 6mm with syncro unit max. 3 mm
FEED 7m / minute
WEIGHT 1000KG
(MACHINE DIM.) approx. 10.3' X 3' X 5'

 ** Note: All information in the listing is accurate to the best of our knowledge and subject to change without notice.**
