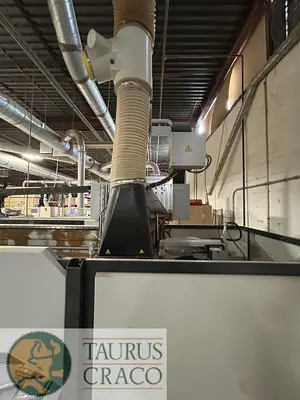

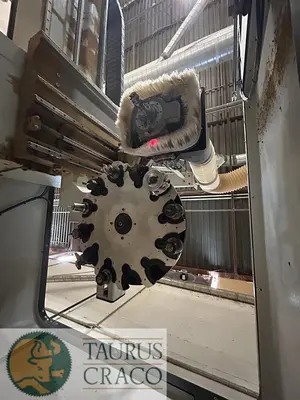

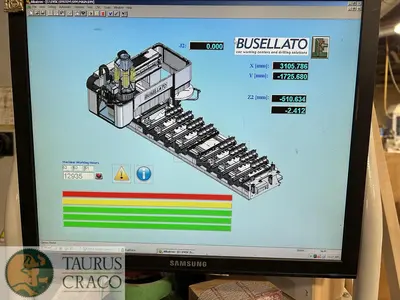

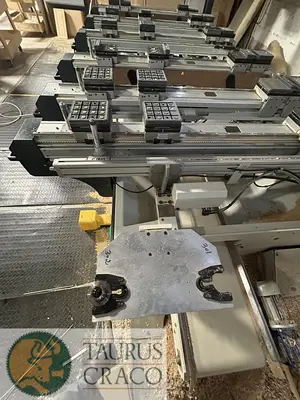

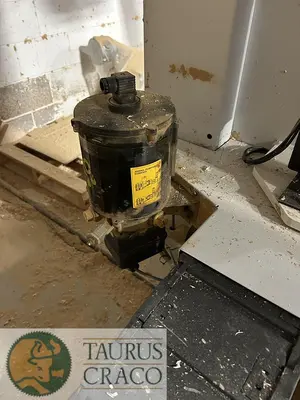

Dual work zones for pendulum processing Automatic motorized pod & rail positioning 15HP electrospindle with HSK-F63 tool interface 12-position rotary tool changer 0–24,000 RPM variable spindle speed C-axis rotary unit with full interpolation Chip conveyor and automatic lubrication Mobile PC control console Centralized dust extraction Control: Genesis Evolution CNC Manual tool loading station X-Axis: 3,300 mm (129.9") Y-Axis: 1,550 mm (61.0") Z-Axis: 330 mm (13.0") X-Axis: 70 m/min Y-Axis: 60 m/min Z-Axis: 15 m/min Heavy-duty stress-relieved steel frame Precision square linear guides on all axes Helical rack & pinion on X-axis Ball screw drive on Y and Z axes Automatic central lubrication system Genesis Evolution CNC control Graphical programming interface ISO and DXF file import Tool path optimization Program simulation Tool management up to 500 tools PC Console Windows-based control 19" LCD monitor Wireless barcode scanner Mobile console for flexible positioning Weight: 5,200 kg (11,684 lbs) Footprint: 7,360 x 5,100 x 3,110 mm (24.2' x 16.7' x 10.2')
