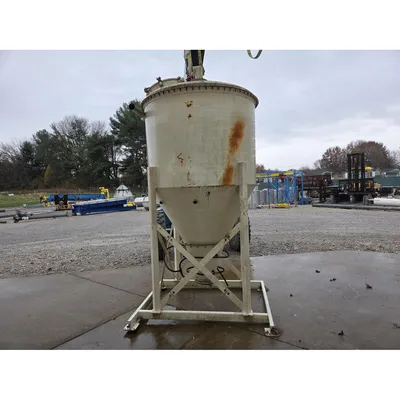

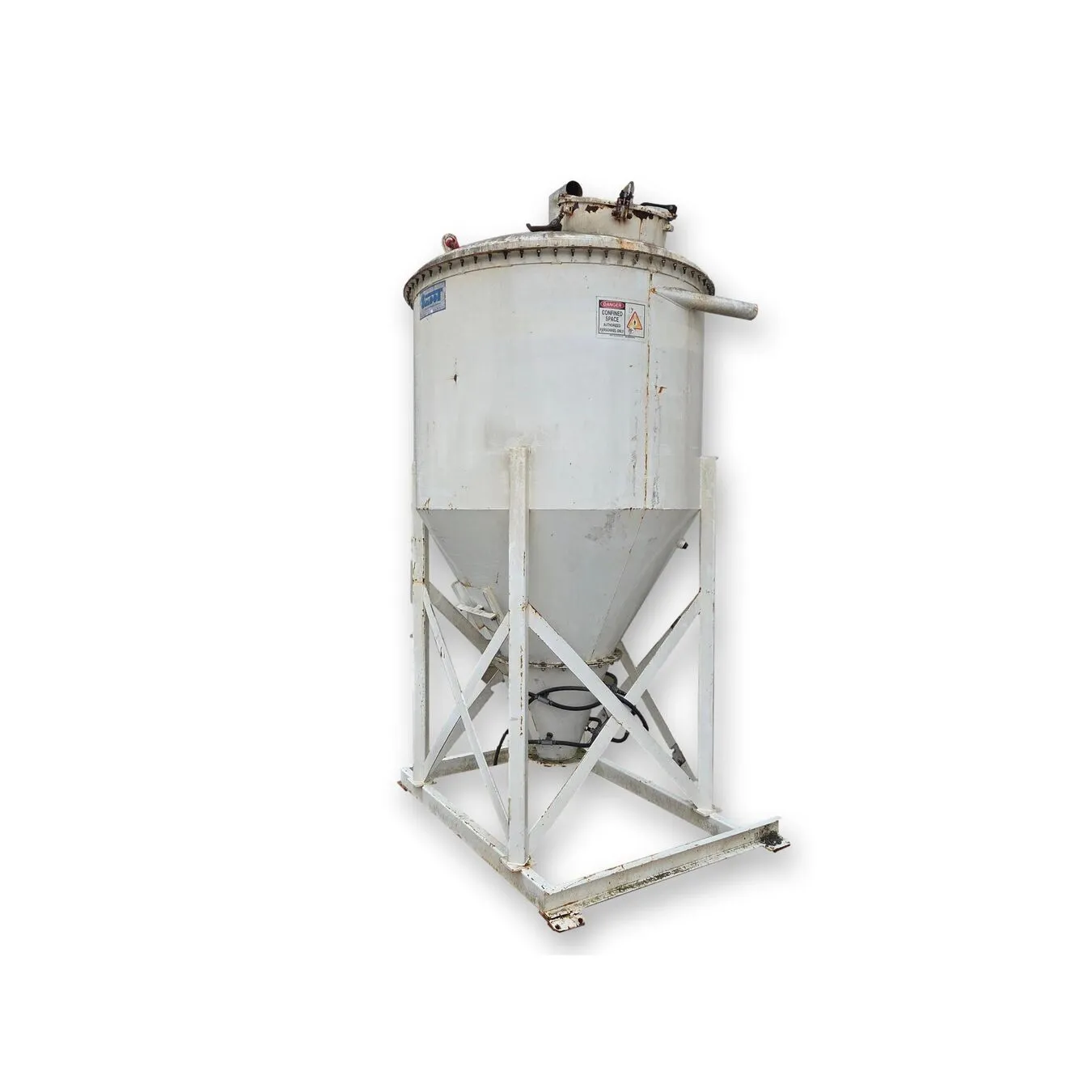

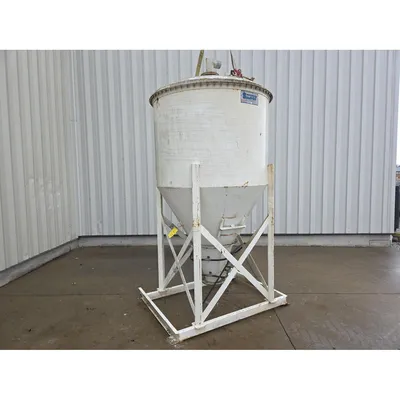

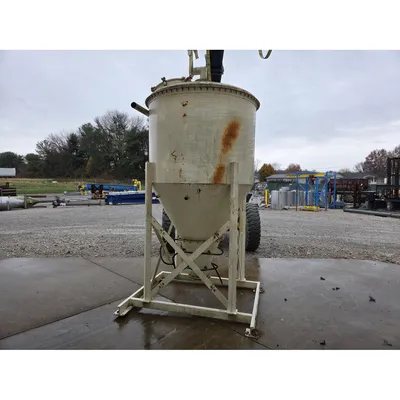

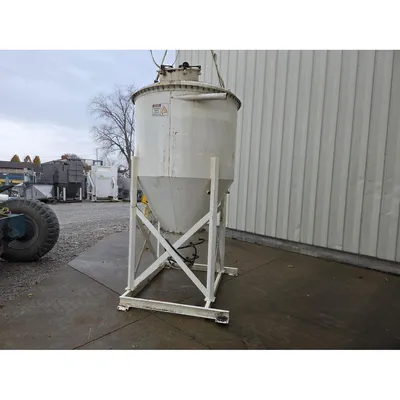

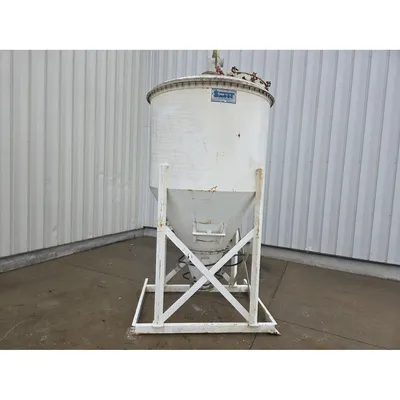

Used 100 Cubic Foot Pneumatic Conveying Receiver Bin w/ Hopper

60 inch diameter by 44 inches straight side up to the flange for the cover. Upper sidewall of bin has a 3"
tangential pneumatic conveying inlet pipe.
Flanged cover is approximately 18 inches tall and has a 3 inch vent and
a 20 inch hinged manway with cover. Hopper is 60° conical with aeration in the bottom removable flanged section. Clearance from outlet flange to ground is approximately13 inches. Outlet diameter is
approximately 8 inch. Bottom has round flanged outlet
with removable 8 inch diameter plain end spout outlet. Hopper is carbon steel
construction. Bin is mounted on channel frame that is approximately 68" wide by 56" long with four 6" x 6“ mounting feet.

FOB: Millwood, WV 25262

Item: 21417
 Size (cubic feet): 100
