USED 2017 FMB TRITON G

FMB HORIZONTAL BAND SAW

MODEL: Triton G

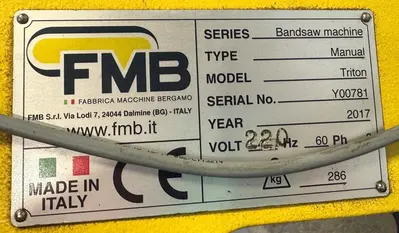

SERIAL NUMBER: Y00781   Year: 2017

GENERAL SPECIFICATIONS

*Swivel saw head with a precision protractor and positive stops at 45 degrees, 90 degrees and 60 degrees
*True direct drive motor/gearbox. Helical gear box with gears in carburized, hardened alloy steel
*Control panel on the front of the machine for optimal ergonomics

Cutting Capacity
Round @ 90 Degrees: 9-1/2"
Round @ 45 Degrees: 7-1/4"
Round @ 60 Degrees: 4-1/2"
Rectangle A @ 90 Degrees: 8-1/4" x 11"
Rectangle A @ 45 Degrees: 5-1/2" x 7"
Rectangle A @ 60 Degrees: 4-1/3" x 4-1/3"
Rectangle B @ 90 Degrees: 9-1/2" x 10-1/4"
Rectangle B @ 45 Degrees: 8-3/4" x 6-1/2"
Square @ 90 Degrees: 9-1/2" x 9-3/8"
Square @ 45 Degrees: 6-3/4" x 6-3/4"
Square @ 60 Degrees: 4-1/3" x 4-1/3"
Blade Size: 106" x 1" x .035"
Blade Speeds: (2) 115 and 230 FPM

EQUIPPED WITH

1-1/2 HP Motor, 230/60/3
Model G Hydraulic Cutting Control*
* The "G" allows using either the Pull Down for fast sawing and operation on light jobs with the added convenience of hydraulic Downfeed for heavy tubes, profiles and solids. The "G" lets you "walk away" while the machine completes the cut and shuts off.
Solid Cast Iron Vise
Mechanical Blade Tension
Coolant System
Quick Acting Clamp
Heavy Duty Machine Base
Length Stop

Approximate Weight: 700 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
