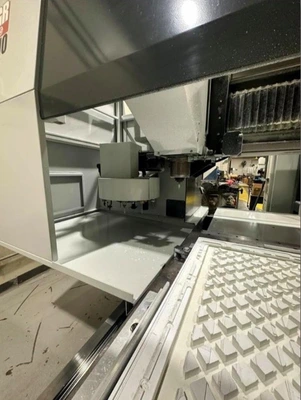

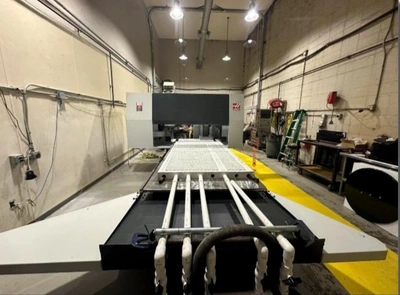

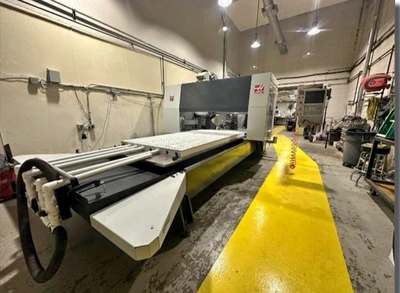

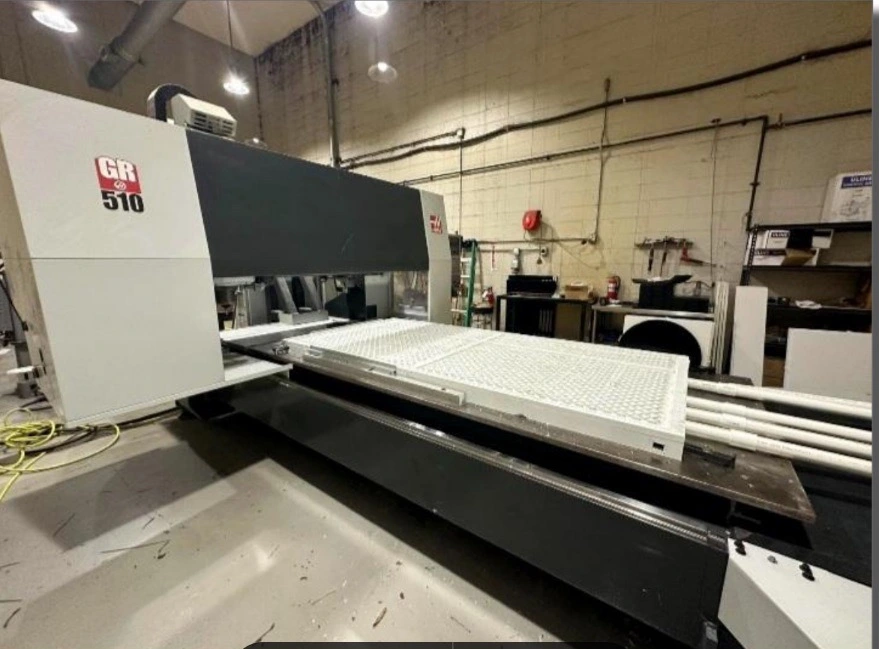

USED 2020 HAAS GR-510

X-Axis Travel: 121″
Y-Axis Travel: 61″
Z-Axis Travel: 11″
Spindle Speed: 15,000 rpm
Motor ower: 15 hp
Taper: CT40
Spindle Nose to Table: 2.5″ – 13.5″
Max Torque: 48 ft‑lb @ 1,500 rpm
Drive System: Direct speed, belt drive
Max Table Load (evenly distributed): 6,000 lbs
Distance Between Columns: 62″
Rapids X: 800 ipm
Rapids Y: 2,100 ipm
Rapids Z: 1,100 ipm
Max Cutting: 800 ipm
Tool capacity: 10-Position Carousel
Max Tool Diameter (adjacent pockets full): 3.5″
Max Tool Weight: 12 lbs
Approx. Dimensions: 206″ × 111″ × 108″
Approx. Weight: 19,400 lbs
Equipped With:
Haas CNC Control
32 GB Expanded Memory
Ethernet Interface
HaasConnect Remote Monitoring
HaasDrop
Media Display M‑code M130
Remote Jog Handle with Touchscreen Display
Early Power Failure Detection Module
Low‑Voltage Option
Probe System
Gantry Router Coolant System
Programmable Coolant Nozzle
High‑Speed Machining
Second Home Position
Rigid Tapping
Chip Tray Filter Kit
