USED DAEWOO DMV-5025
Overview

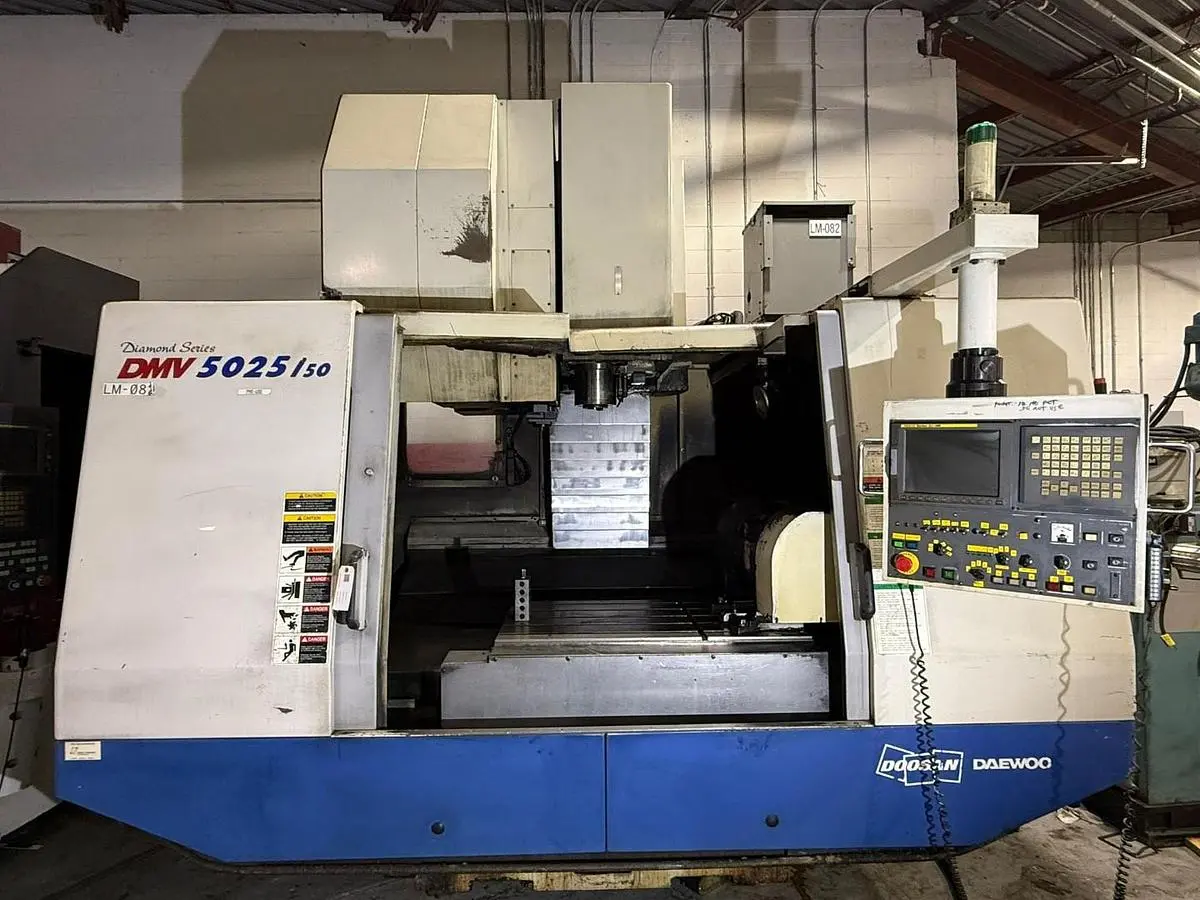

The Doosan Daewoo DMV 5025/50 is a heavy-duty CNC vertical machining center designed for high-torque milling and large-part machining. Featuring 50" × 25" × 25" travels, a CAT50 spindle with 8,000 RPM, and a 30 HP spindle motor, this machine delivers powerful cutting performance and excellent rigidity. Equipped with a 55.1" × 24.8" table, 3,300 lb load capacity, and a 30-tool automatic tool changer, the DMV 5025/50 is ideal for production machining, mold work, and heavy milling applications. Controlled by Fanuc Series 21i-MB and complete with chip conveyor and coolant system.
Specs
X‑Axis Travel (IN): 50
Y‑Axis Travel (IN): 25
Z‑Axis Travel (IN): 25
Table Size (IN): 55.1 x 24.8
Table Load Capacity (LBS): 3,300
Spindle Speed (RPM): 8,000
Spindle Taper: CAT50
Spindle Motor (HP): 30 HP
Rapid Traverse X/Y (IPM): 945
Rapid Traverse Z (IPM): 787
Cutting Feed Rate (IPM): 394
Automatic Tool Changer: 30 ATC
Maximum Tool Diameter (IN): 4.9
Maximum Tool Length (IN): 11.8
Maximum Tool Weight (LBS): 33
Machine Weight (LBS): 22,000
Equipped With

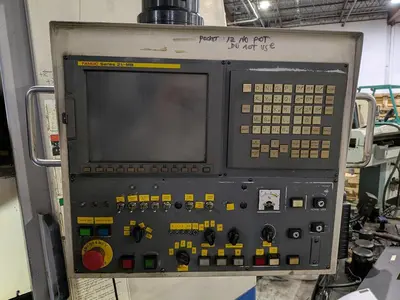

Fanuc 21i‑MB CNC Control
CAT50 High‑Torque Spindle
30 Tool Automatic Tool Changer
Chip Conveyor
Coolant System
