USED MAC PID-111JB

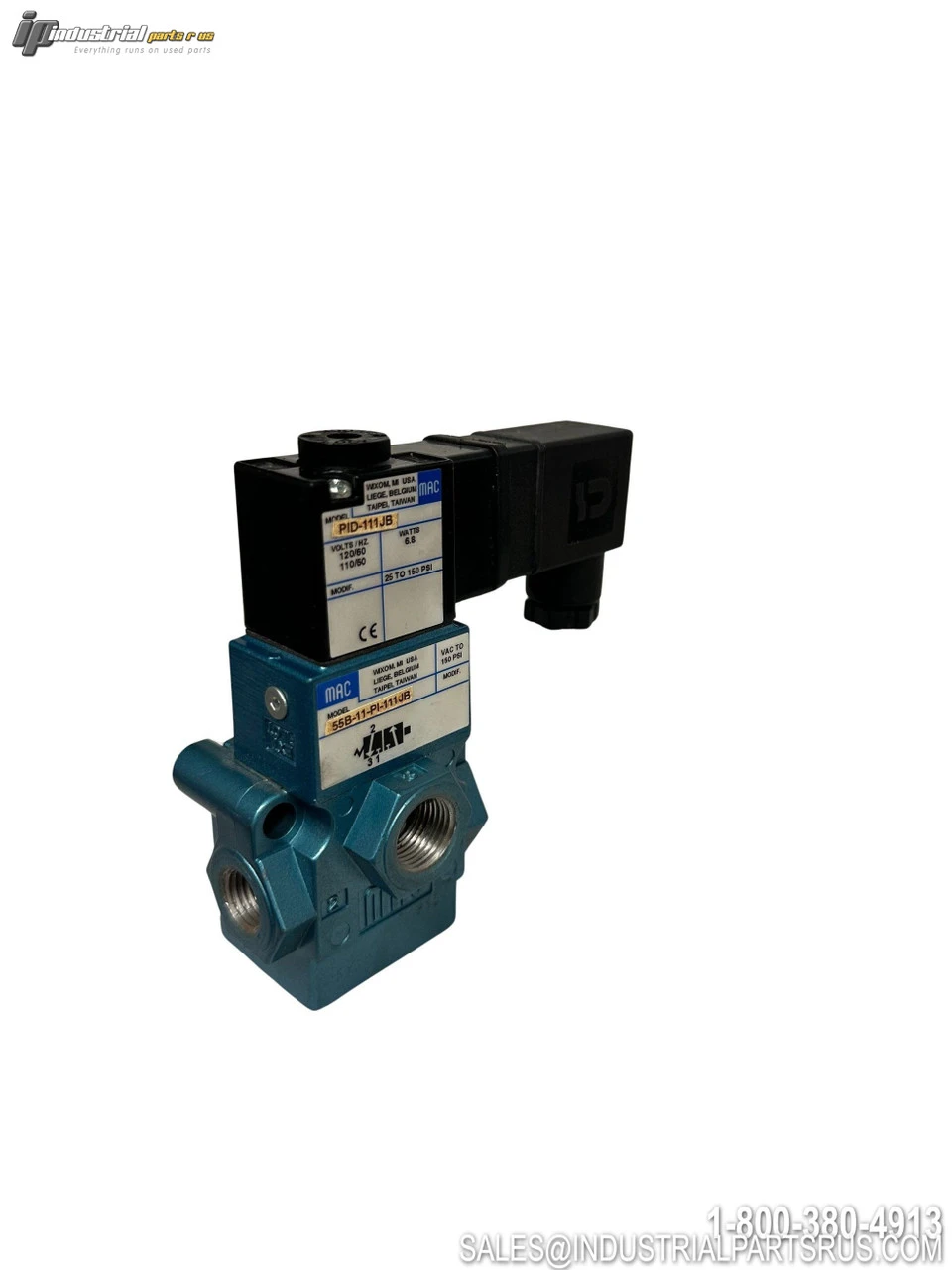

The Mac 55B-11-PI-111JB is a 3-way normally closed pneumatic solenoid valve from Mac Valves' 55 Series. This balanced spool valve features internal pilot operation and is designed for individual inline mounting with 120VAC solenoid operation and rectangular electrical connector.
Specification
Value
Brand
Mac
Model/Part Number
55B-11-PI-111JB
Manufacturer
Mac Valves
Series
55
Valve Function
3-Way Normally Closed
Port Size
1/4" NPTF
Pilot Type
Internal Pilot
Coil Voltage
120VAC/60Hz, 110VAC/50Hz
Manual Operator
Non-locking
Electrical Connection
Rectangular Connector (JB)
Pressure Range
30-150 PSI
Flow Coefficient (Cv)
1.4
Mounting Type
Individual Inline
Valve Design
Balanced Spool with Piston Pilot
Dimensions (H x W x D)
113mm x 46mm x 105mm
We warranty all items for 30 days from date of purchase.

SKU: AI0741
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Country/Region of Manufacture: Taiwan
Manufacturer: Mac
Part Number: 55B-11-PI-111JB
Shelf: A-10
Model: PID-111JB
MPN: 55B-11-PI-111JB
Type: Solenoid Valve
