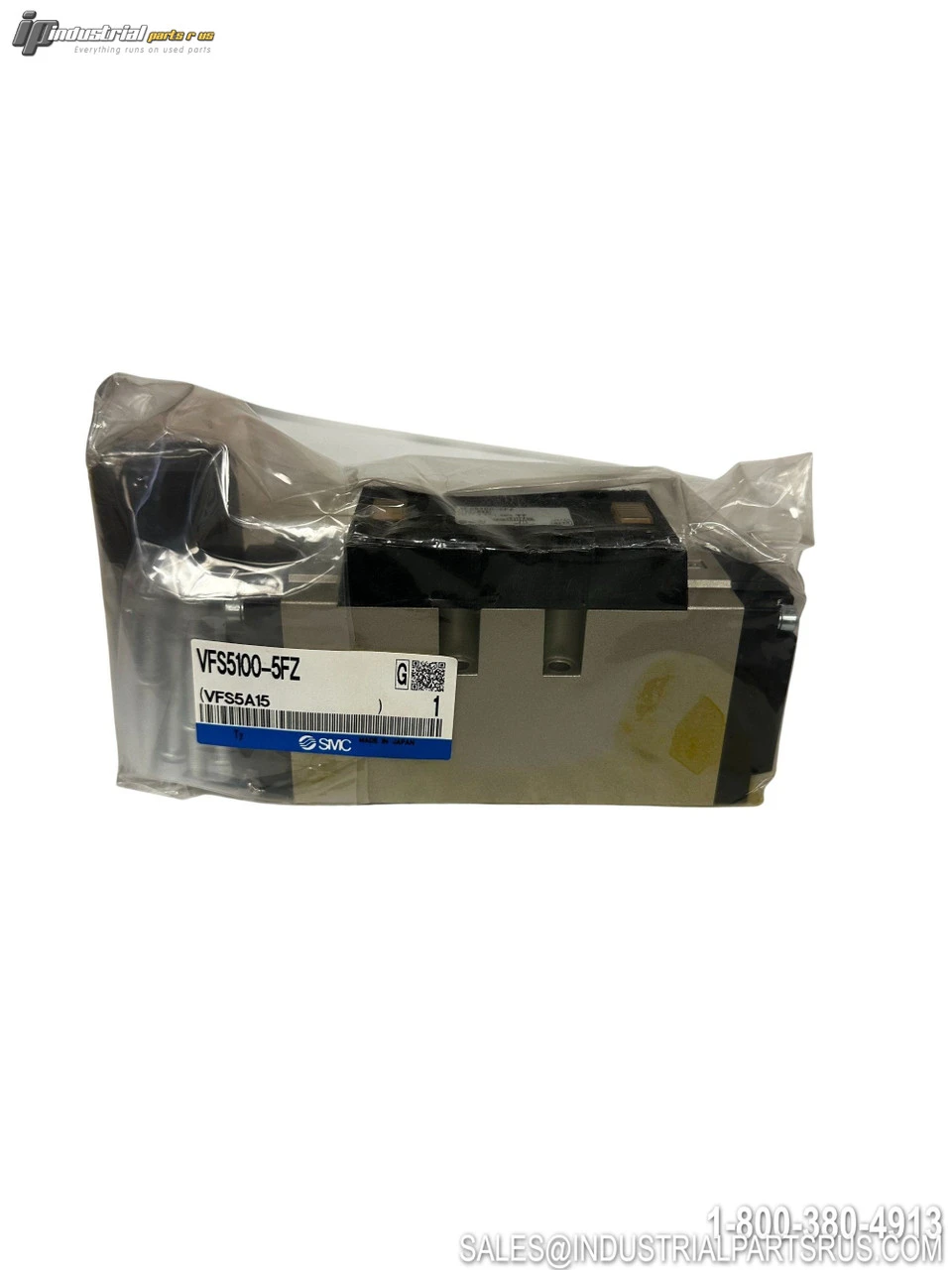

NEW SMC VFS5100-5FZ

The SMC VFS5100-5FZ is a 5/2 way pilot operated solenoid valve from SMC's VFS5000 series, featuring metal seal construction and 24VDC coil voltage. This valve is designed for controlling medium and large pneumatic cylinders with internal pilot operation and plug-in base mounting capabilities.
Specification
Value
Brand
SMC
Model/Part Number
VFS5100-5FZ
Series
VFS5000
Valve Type
5 Port Pilot Operated
Position
2 Position Single
Coil Voltage
24VDC
Pilot Type
Internal Pilot
Operating Pressure
0.1 MPa to 1.0 MPa
Effective Area (Cv)
2.2 to 5.7
Response Time
60ms or less
Fluid
Air and Inert Gas
Operating Temperature
-10°C to 60°C
Construction
Metal Seal
Mounting Type
Base Mounted
Manual Override
Non-locking Push Type
We warranty all items for 30 days from date of purchase.

SKU: AI0675
UPC: 679523686468
Condition: New
Availability: In Stock
Weight: 4.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686468
Manufacturer: SMC
Part Number: VFS5100-5FZ
Shelf: K-42
Model: VFS5100-5FZ
MPN: VFS5100-5FZ
Type: Solenoid Valve
