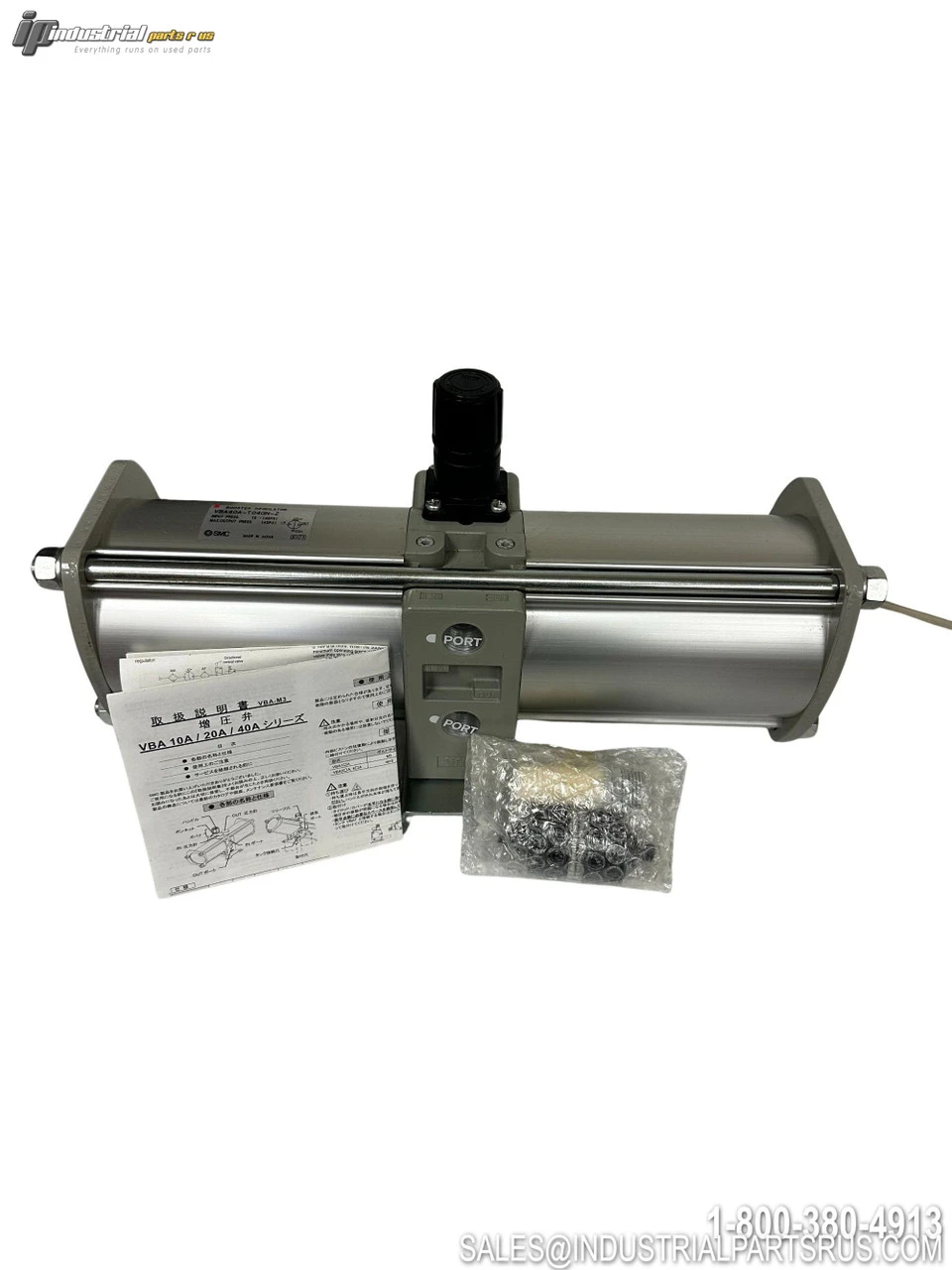

USED SMC VBA40A-T04GN-Z
Overview
Description
The SMC VBA40A-T04GN-Z is a VBA Series booster regulator designed to increase pneumatic line pressure up to twice the input pressure without requiring external power. This handle-operated unit features dual pressure gauges and a silencer for noise reduction.
Specification
Value
Brand
SMC
Model/Part Number
VBA40A-T04GN-Z
Series
VBA
Body Size
40A (1/2")
Operation Type
Handle-operated
Inlet Port Size
1/2 in
Outlet Port Size
1/2 in
Thread Type
NPTF
Flow Rate
1900 Lpm
Pressure Range
0.1 to 10 MPa
Pressure Increase Ratio
Up to 2x (200%)
Weight
8.6 kg (18.96 lb)
Options
Pressure Gauge (2 pcs), Silencer
Pressure Unit
PSI
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 21.00 LBS | 21.00 LBS |
|---|
SKU: AI0771
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 21.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 20.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Country/Region of Manufacture: Japan
Manufacturer: SMC
Part Number: VBA40A-T04GN-Z
Shelf: B-4
Model: VBA40A-T04GN-Z
MPN: VBA40A-T04GN-Z
Type: Pneumatic Valve
