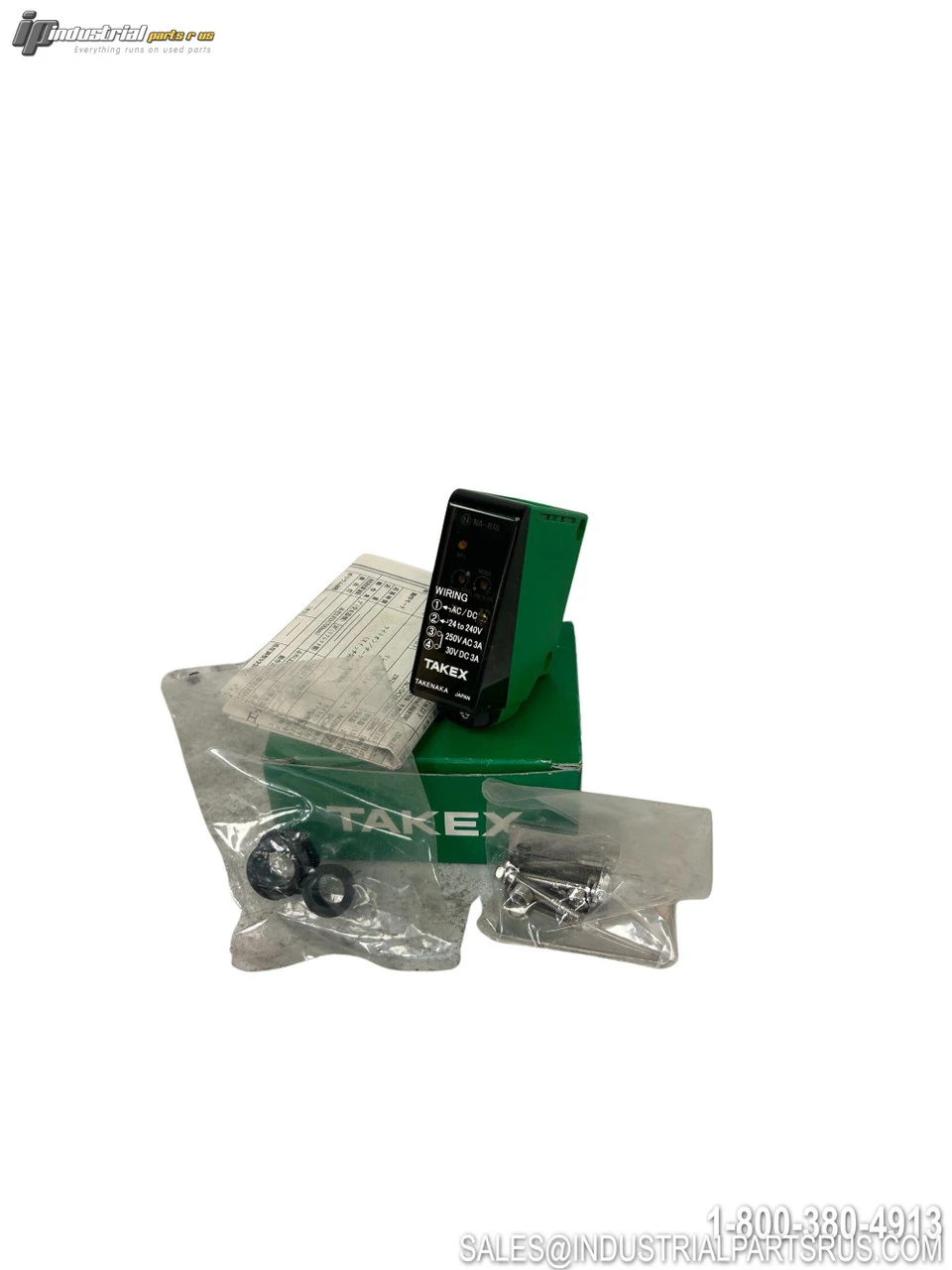

NEW TAKEX NA-R10

The TAKEX NA-R10 is a universal power input photoelectric sensor featuring diffuse reflective technology for versatile object detection applications. This sensor provides reliable performance with its wide power supply range and relay output configuration, making it suitable for industrial automation and control systems.
Specification
Value
Brand
TAKEX
Model/Part Number
NA-R10
Series
NA
Sensing Method
Diffuse Reflective
Sensing Distance
0.03 to 7m
Power Supply Voltage
24-240VAC/DC ±10%
Frequency
50/60 Hz
Output Configuration
Relay - Dark-ON/Light-ON
Output Current Rating
1A/3A
Output Voltage Rating
250VAC/30VDC
Response Time
10ms
Light Source
Infrared (880nm)
Connection Method
Terminal Block
Ingress Protection
IP66
Operating Temperature
-25°C to 55°C
Adjustment Type
Adjustable
Weight
0.40 lbs
We warranty all items for 30 days from date of purchase.

SKU: AI0686
UPC: 679523686222
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686222
Output Type: Relay
Sensor Type: Photoelectric
Operating Distance: 39.37 inches (1m)
Manufacturer: Takex
Part Number: NA-R10
Shelf: K-50
Model: NA-R10
MPN: NA-R10
Type: Photoelectric Sensor
