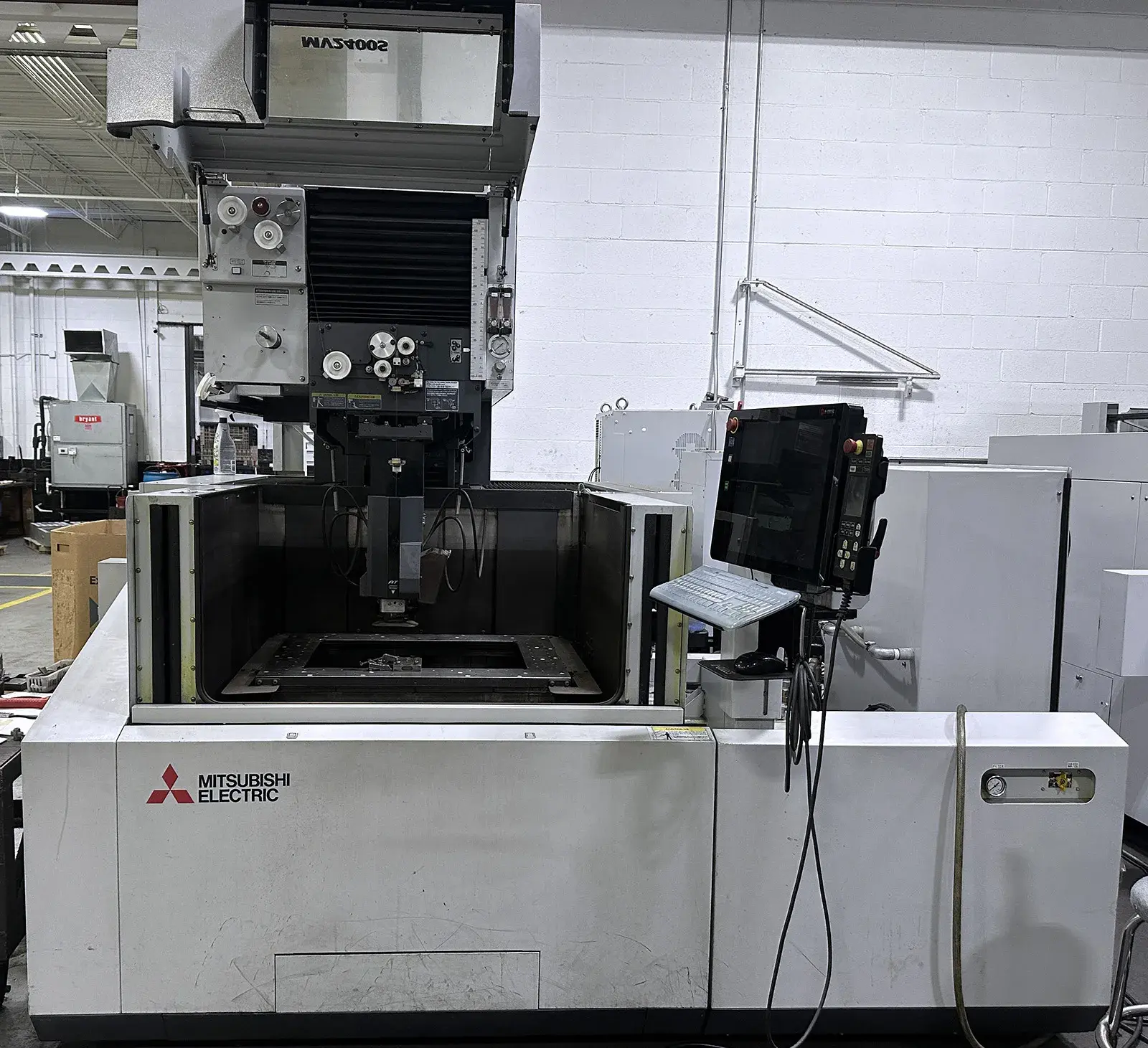

USED 2018 MITSUBISHI MV2400-S
Overview
Used Mitsubishi MV2400-S Wire EDM (2018) with Mitsubishi CNC Control. This machine is engineered for high-precision cutting of complex, tight-tolerance shapes in hardened materials. Utilizing advanced submerged wire technology, it delivers exceptional accuracy and surface finish. Ideal for tool and die, mold making, aerospace, automotive, and medical industries, the MV2400-S excels at producing intricate stamping dies, molds, and precision components with consistent reliability.
Specs

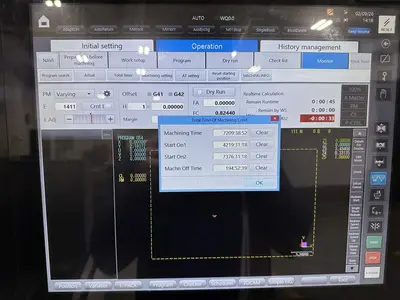

Mitsubishi M800 D-Cubes Control

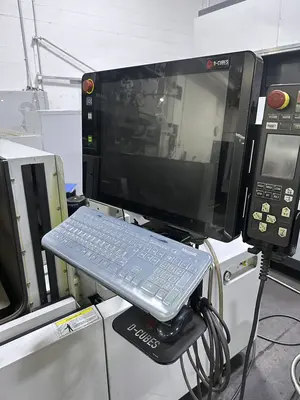

17" Touch Screen
Auto Wire Threading (AT2)
Extended Z-Axis Travel (12.0" Standard Equipped W/ 16.5"
Automatic Vertical Machine Tank Door
Chiller
Dielectric Water System
Paper Cartridge Filter System
All Manuals Included
X-Axis Travel: 23.6"
Y-Axis Travel: 15.7"
Z-Axis Travel: 16.5"
Max. workpiece dimensions: 41.3" x 32.3" x 16.3"
Max. Workpiece Weight: 3,300 lbs.
U/V Travel: +/- 3"
Table Dimensions: 33" x 25.2" (3-Sided)
Taper Capacity: +-15 deg @ 10"
Wire diameter range: 0.004"~0.012"
Wire Guides Included: 0.010"
Minimum Resolution: .000002"
Table Rapid Feed: 51.2"/Min
Min Hole Diameter for Auto Thread: .020"
Max Wire Spool Size: 22 lbs
FILTER TANK CAPACITY: 260 Gal
Machine Total Layout Dimensions: 106" x 120" x 85"
Machine Tool Only Weight: 7,716 lbs
Approximate Total Machine Weight: 9,846 lbs
Equipped With
Mitsubishi M800 D-Cubes Control
17" Touch Screen
Auto Wire Threading (AT2)
Extended Z-Axis Travel (12.0" Standard Equipped W/ 16.5"
Automatic Vertical Machine Tank Door
Chiller
Dielectric Water System
Paper Cartridge Filter System
All Manuals Included
