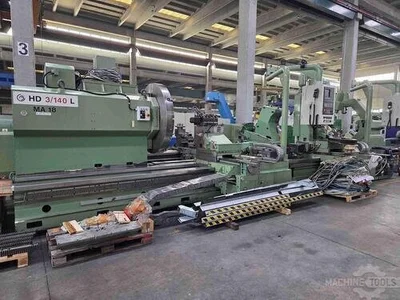

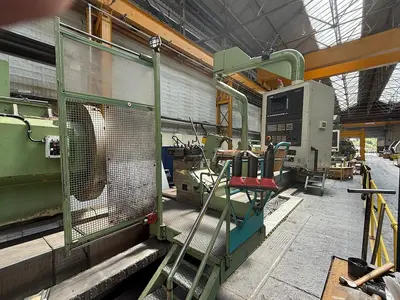

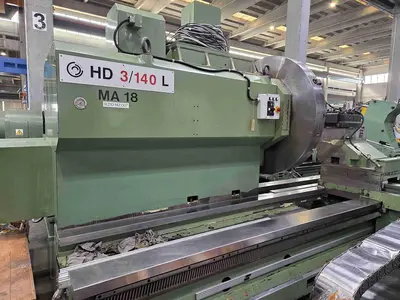

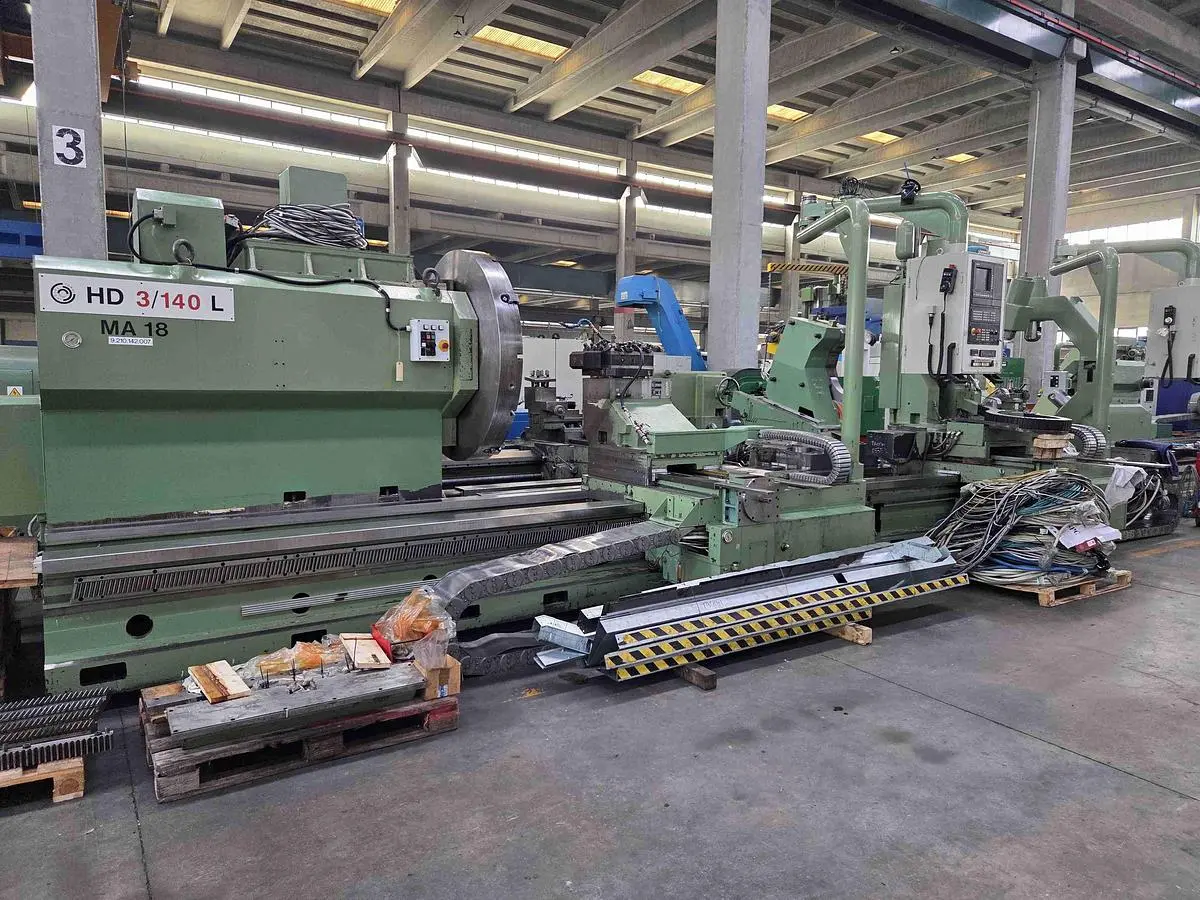

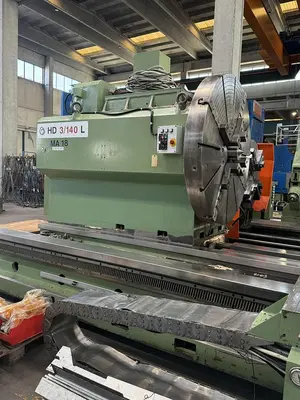

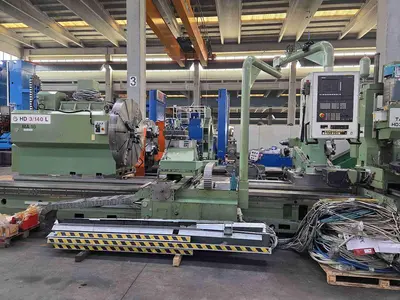

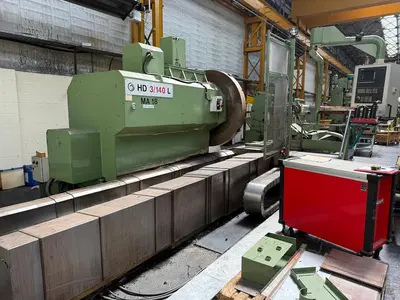

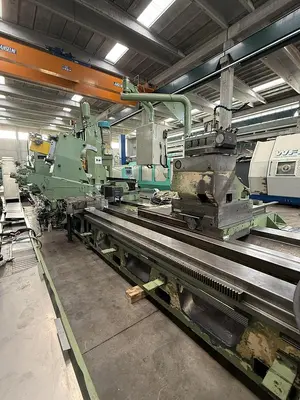

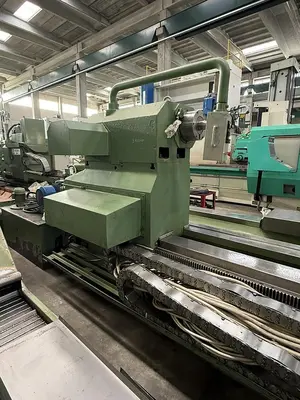

USED 2001 TACCHI HD3/140 L

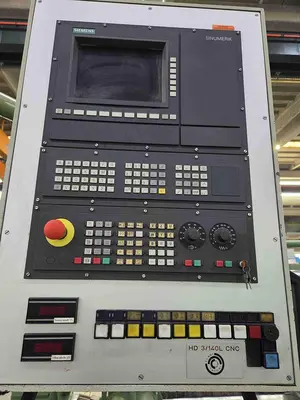

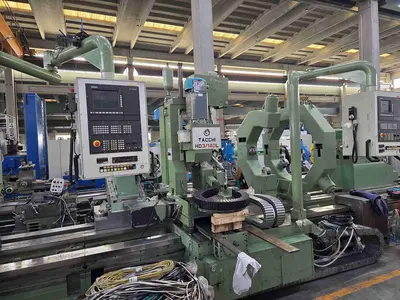

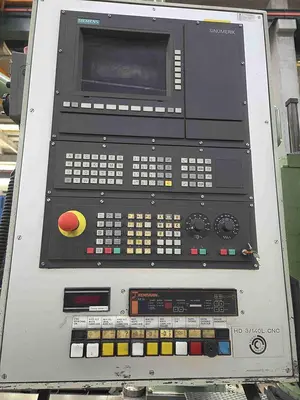

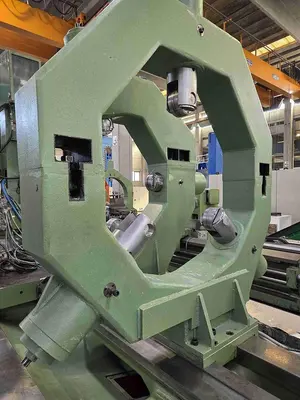

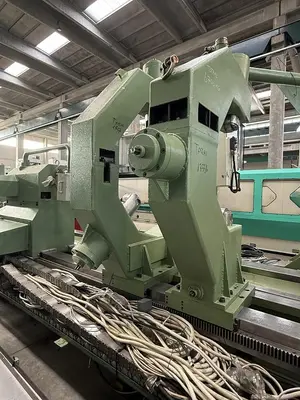

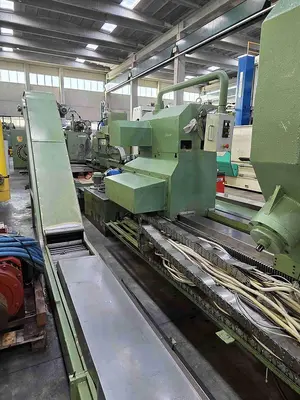

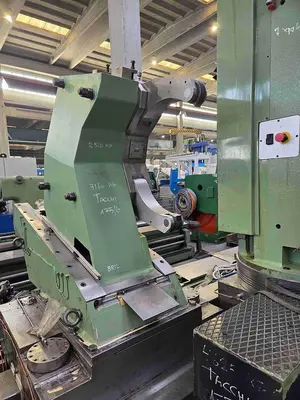

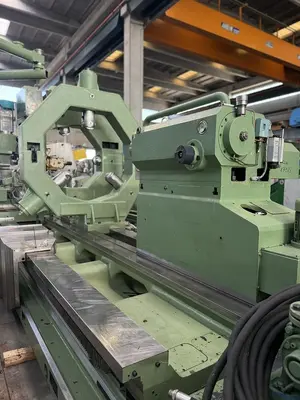

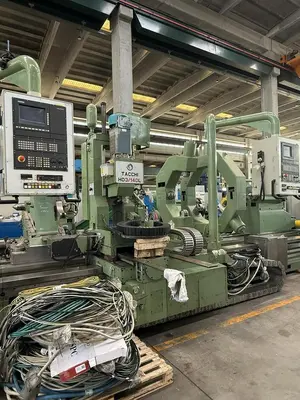

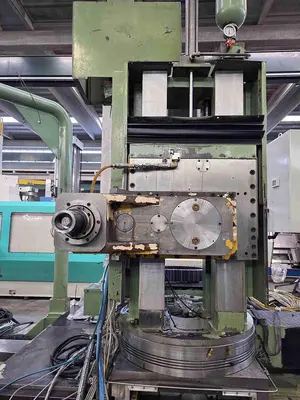

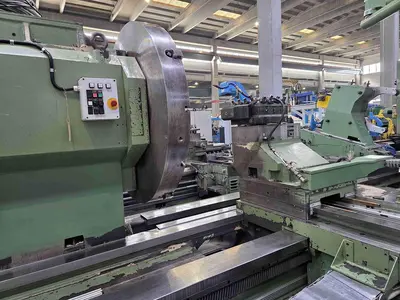

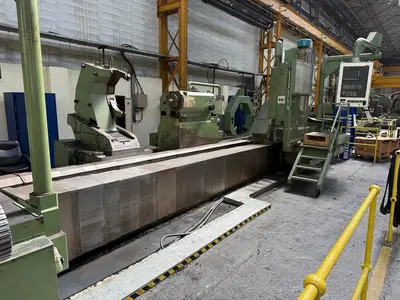

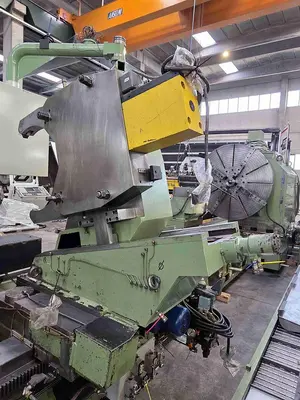

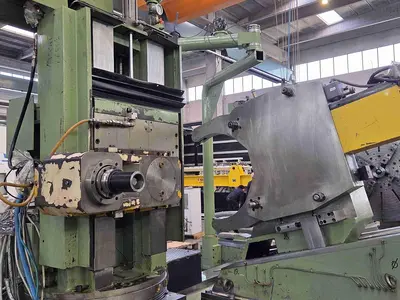

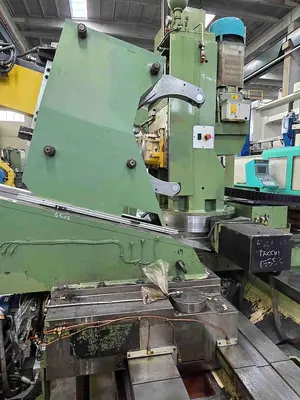

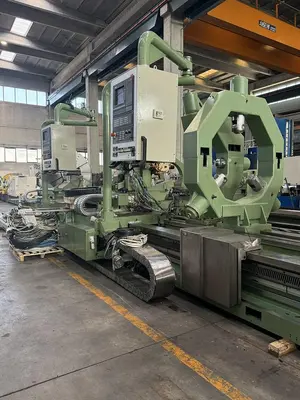

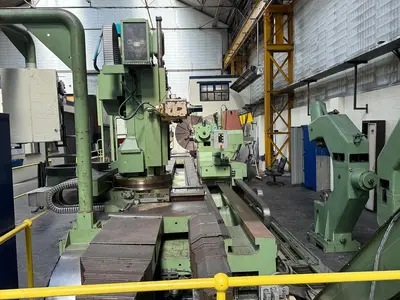

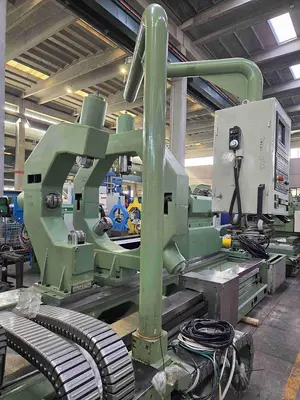

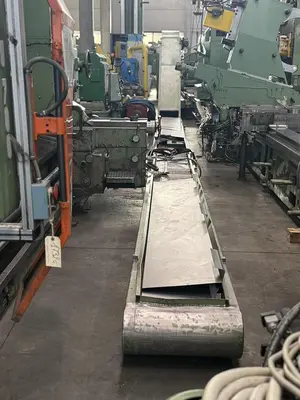

Tacchi HD3/140L CNC heavy duty lathe with milling capability. Year 2001. Built for large diameters, long shafts, and demanding roughing with reliable accuracy. With 95 kW spindle power, a 2,000 mm swing over bed, and 8,000 mm between centers, the Tacchi HD3/140L delivers capacity and rigidity for continuous industrial use.This used HD3/140L offers the power and stability you need for heavy cuts, confident finish quality, and fewer setups. The 3 bed way construction and 1,400 mm bed width enhance stiffness. The full C axis with 360,000 positions and a 22 kW milling tower enable complete machining in one clamping, reducing cycle time and handling.Siemens 840C CNC Control“C” AXISN. 1 FOUR JAWS TABLE Æ 1.500 MM.N. 1 CNC SADDLE WITH AUTOMATIC SQUARE TURRETN. 1 CNC SADDLE WITH ROTARY MILLING COLUMN:VERTICAL TRAVEL ("Y" AXIS) 500 MM.; MILLING MOTOR POWER 22 KW.; MILLING SPEEDS 0 - 1.800 RPM.; SPINDLE TAPER ISO 50N. 1 HYDRAULIC SELFCENTERING STEADYN. 1 CLOSED STEADYN. 1 "C" FRAME STEADYCHIPCONVEYOR

Manufacturer: Tacchi
Model: HD3 / 140L
Year: 2001
Condition: Used
Stock Number: 5654327
Between centers: 8,000 mm
Capacity between centers: 25,000 kg
Swing over bed: 2,000 mm
Swing over slide: 1,550 mm
Chuck speed: 360 rpm

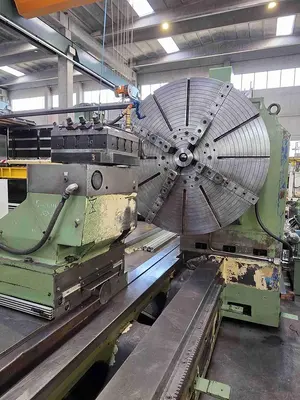

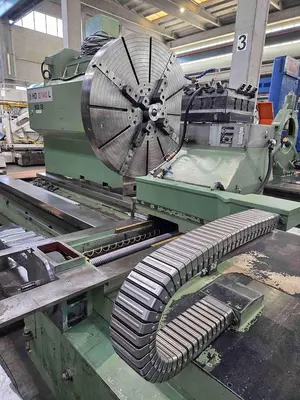

Chuck diameter - 4-Jaw: 1,500 mm

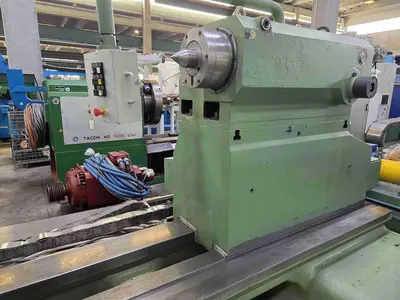

Tailstock diameter: 260 mm
Tailstock stroke: 200 mm - taper Metric 80
Spindle bore: 150 mm
Centers height: 1,000 mm
Bed width: 1,400 mm
Live spindle speed: 1,800 rpm
Live spindle power / torque: 22 kW / 2,800 Nm
X axis travel: 900 mm
Y axis travel: 500 mm
Stroke pinhole: 200 mm
Full c axis for milling positioning: 360,000
Main motor power: 95 kW
Main motor torque: 45,000 Nm
Feed rate X/Z: 0 - 6,000 mm/min
Machine dimensions: 16 x 5 x 3.8 m
