USED ISHIDA CCW-RZ-212

Manufacturer Information

Manufacturer: Ishida Co., Ltd.

Model: CCW-RZ-212P-D705-WP

Machine Type: Multihead Combination Weigher / Weigh Scale System

Configuration: 12 Head Double Drop

Construction: Stainless Steel

Feed System: Radial feed trough

Additional Equipment: Frazier & Son bucket elevator with vibratory feeder

Ishida is a global leader in multihead weighing technology and packaging automation, widely used in snack food, produce, frozen foods, confectionery, nutraceutical, and industrial packaging operations.

Description

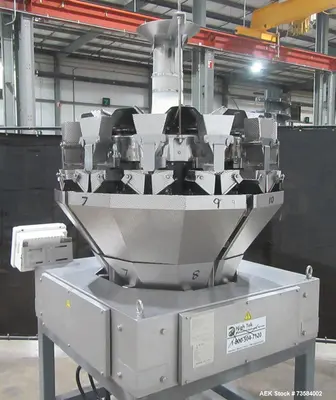

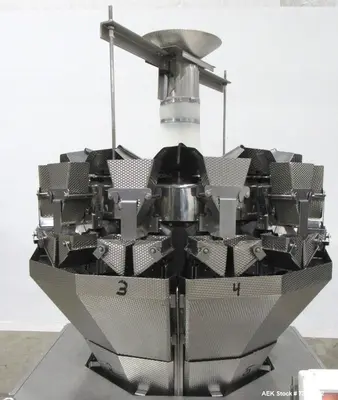

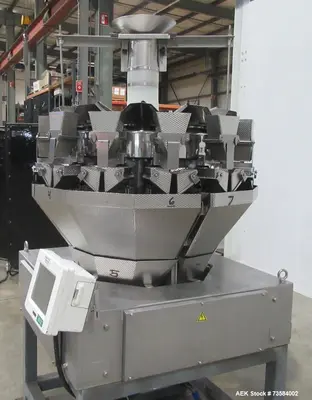

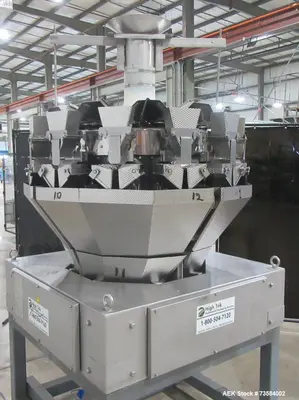

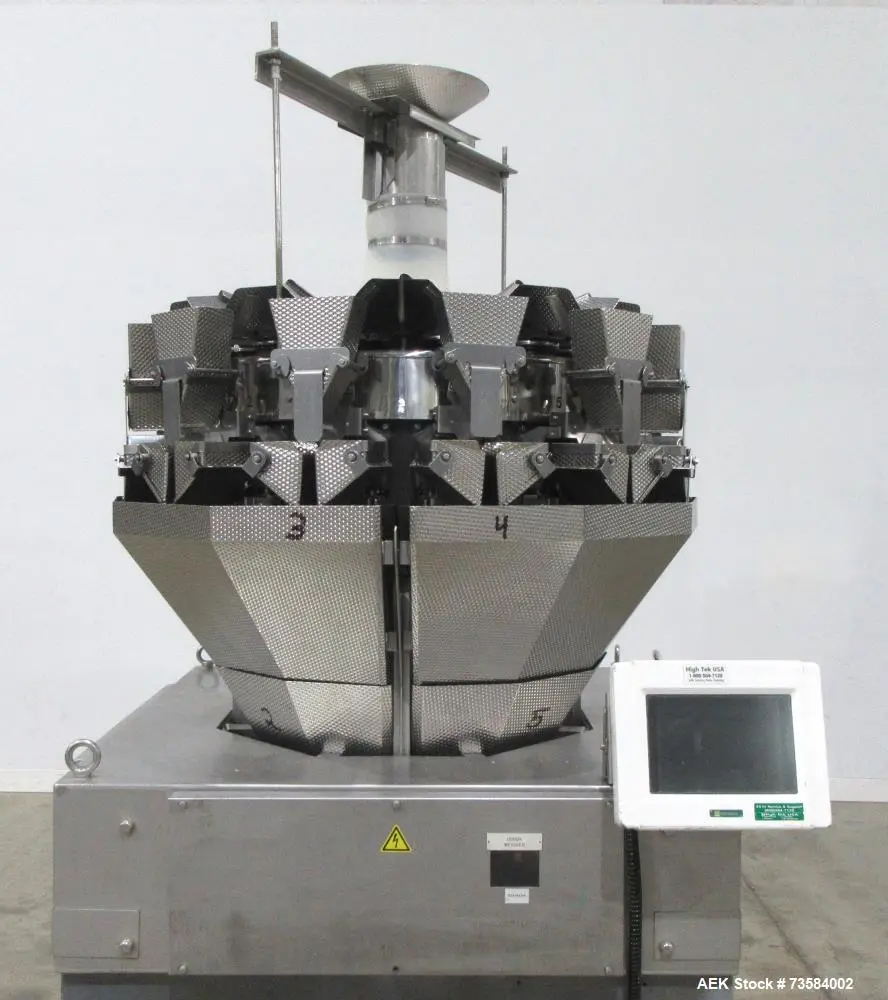

This used Ishida Model CCW-RZ-212P-D705-WP 12 Head Double Drop Combination Scale is designed for high-speed, accurate weighing of food and small product items prior to packaging. The scale is constructed from stainless steel and features dimpled/embossed buckets, making it suitable for products that require improved flow and reduced sticking.
The system is capable of 20 to 80 weighs per minute per side, depending on product characteristics and packaging configuration. The scale handles weights ranging from 4 grams to 500 grams with an accuracy of approximately ±1 gram.

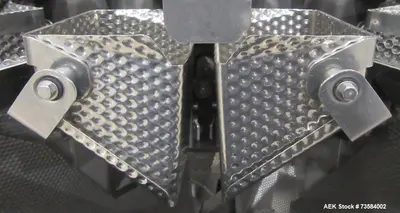

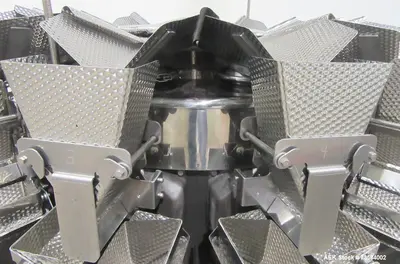

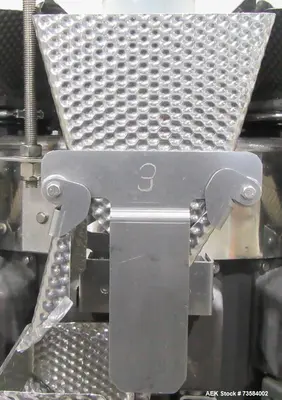

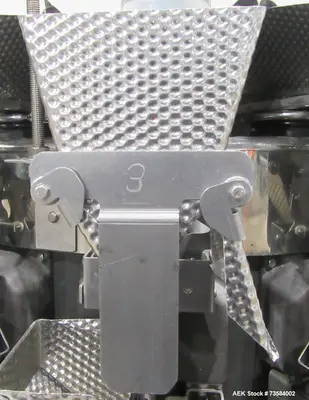

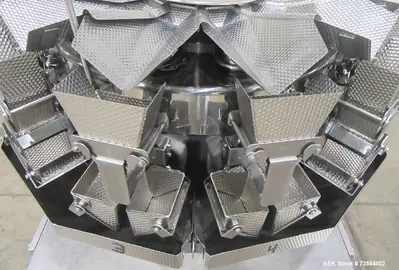

Each head includes dimpled stainless steel feed buckets and weigh buckets, designed to improve product movement and accuracy. The machine uses double-beam strain gauge load cells to ensure precise measurement during operation.

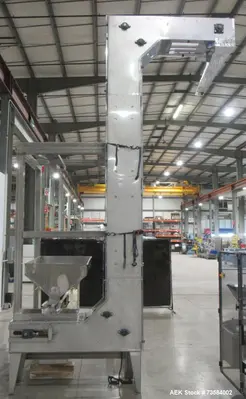

The system is supplied with a Frazier & Son Model C bucket elevator (4" x 8") with vibratory feeder, providing efficient product feeding to the scale. Platform available at additional cost.
This type of multihead weigher is commonly used in food processing plants, snack food packaging lines, produce packaging, frozen food processing, and contract packaging operations.

Specifications
General

Manufacturer: Ishida

Model: CCW-RZ-212P-D705-WP

Type: Multihead Combination Weigher

Number of Heads: 12

Configuration: Double Drop

Production Capacity

Speed: 20 – 80 weighs per minute per side (product dependent)

Weight Range

Minimum Weight: 4 grams

Maximum Weight: 500 grams

Accuracy: ±1 gram

Volume Capacity

Maximum Volume: 800 cc per single dump

Weighing System

Double-beam strain gauge load cells

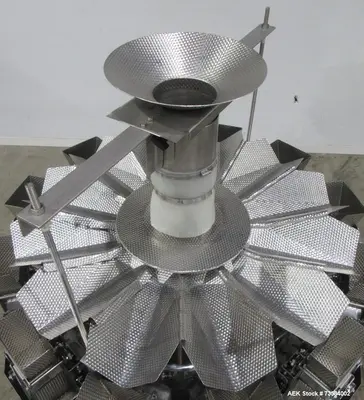

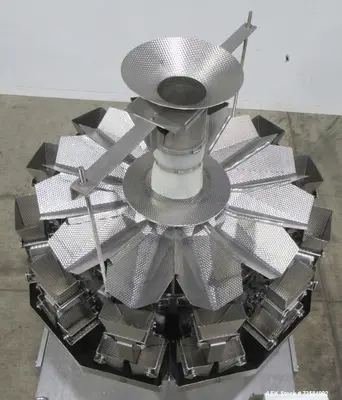

Radial feed trough

Buckets

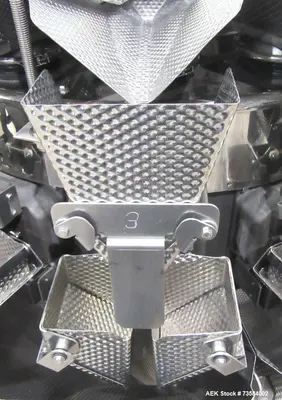

Feed Buckets:

Qty: 12

Size: Approx. 5" L x 4" W x 5" D

Construction: Stainless steel, dimpled

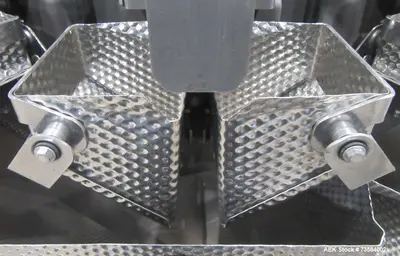

Weigh Buckets:

Size: Approx. 6" L x 3-1/2" W x 4" D

Configuration: 2 per feed bucket

Discharge System

3 sets per product stainless steel dimpled discharge chutes

Product Feed Equipment

Bucket Elevator: Frazier & Son Model C

Bucket Size: 4" x 8"

Vibratory feeder

Construction

Stainless steel food-grade construction

Applications

Snack food packaging

Produce packaging lines

Frozen food packaging

Nut and dried fruit packaging

Candy and confectionery packaging

Coffee and tea packaging

Nutraceutical packaging

Pet food packaging

Bakery ingredient weighing

Contract packaging operations

What Products Would This Be Used For

Potato chips

Nuts and trail mix

Frozen vegetables

Candy and chocolates

Coffee beans

Snack foods

Salad greens

Dried fruit

Pet treats

Granola and cereals
