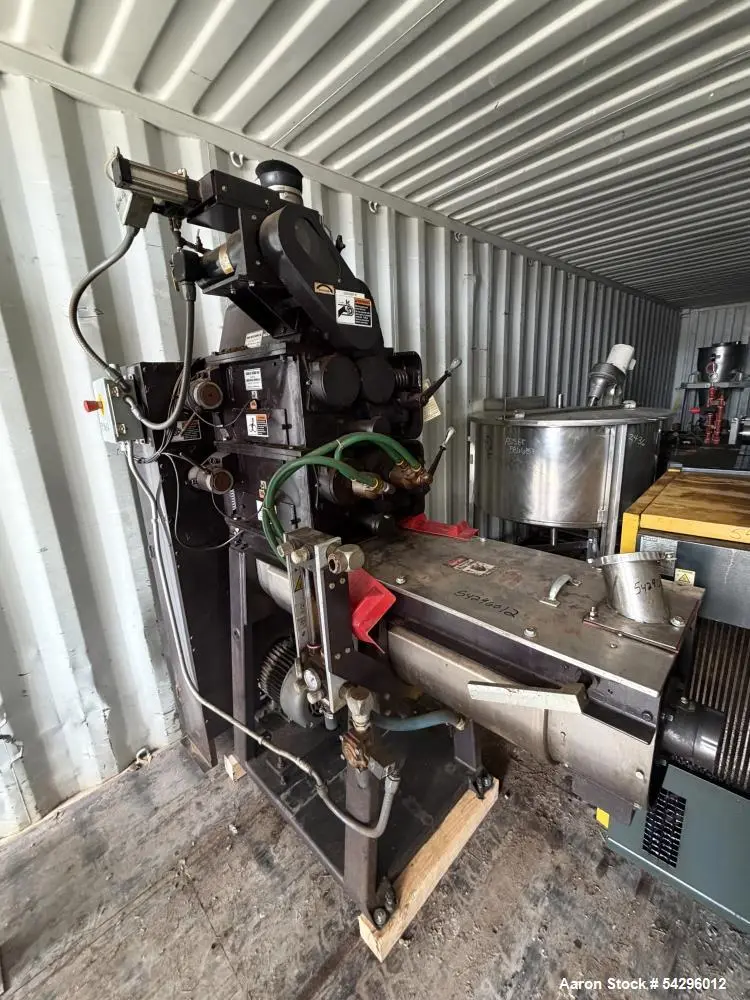

Used Modern Process Equipment 700FX Stacked Coffee Granulizer | High Capacity In

Manufacturer: Modern Process Equipment (MPE)
Model: 700FX
Equipment Type: Stacked Coffee Granulizer / Industrial Coffee Grinder
Condition: Used
Description
Used Modern Process Equipment (MPE) Model 700FX stacked coffee granulizer designed for high-capacity precision grinding in commercial and industrial coffee production environments. This unit is capable of processing up to 1,100 lbs/hr for espresso grinding and up to 2,000 lbs/hr for filter coffee applications.
The system features (2) stacked grinding sections with approximately 6-inch diameter by 18-inch long rolls, allowing for consistent particle size distribution and enhanced grind control. Equipped with infinite roll gap adjustment and a 1/3 HP variable speed power feeder, this machine offers precise feed rate and grind customization.

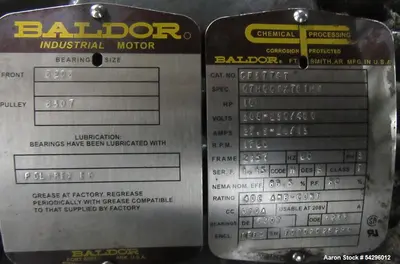

Powered by a robust 10 HP motor (3/60/208-230/460V, 1760 RPM), the unit also includes an integrated bottom paddle conveyor (approx. 13" diameter x 48" long) with end discharge at a 29-inch height. Mounted on a durable carbon steel frame, this granulizer is built for continuous industrial use.
Specifications

Manufacturer: Modern Process Equipment (MPE)

Model: 700FX

Type: Stacked Coffee Granulizer

Capacity:

Up to 1,100 lbs/hr (espresso)
Up to 2,000 lbs/hr (filter coffee)

Grinding Sections: (2) stacked sections

Roll Dimensions: Approx. 6" diameter x 18" long

Roll Adjustment: Infinite roll gap adjustment

Feeder Motor: 1/3 HP variable speed power feeder

Main Drive Motor: 10 HP

Motor Specs: 3/60/208-230/460V, 1760 RPM

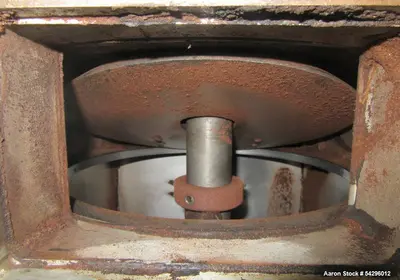

Conveyor: Bottom paddle conveyor

Approx. 13" diameter x 48" long
End discharge
29" discharge height

Frame: Carbon steel frame

Condition: Used

Applications
Ideal for coffee roasting facilities, large-scale coffee processors, and industrial food production operations requiring consistent, high-volume grinding performance.
What products would this be used for

Espresso coffee grounds
Filter/drip coffee grounds
Specialty coffee blends
Commercial roasted coffee
Bulk coffee production
Private label coffee products
Cold brew coffee grind
Food-grade grinding applications
Industrial spice grinding (select applications)
Coffee packaging operations
