USED WALKER P7-CB-SP

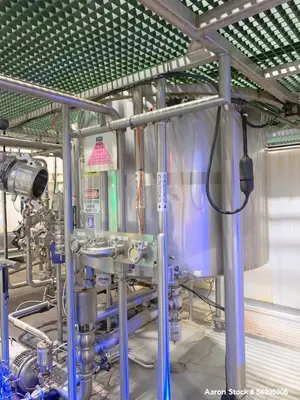

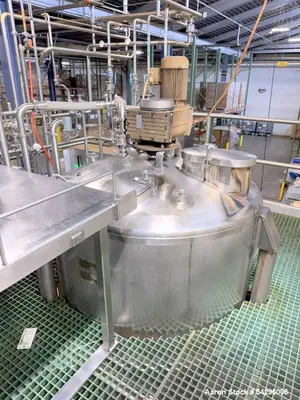

Used Walker 800 Gallon Stainless Steel Processor Kettle, Model PZ-CB-SP, 304L Stainless Steel, Vertical. Approximately 60" diameter x 70" straight side. Dished top, slight coned bottom. Vessel rated ATMOS psi at 200 degrees F. Jacket rated 50 psi at -20 to 300 degrees F. Top entering anchor style scrape agitator, driven by a 5hp, 3/60/460 volt, 1700rpm motor through reducer 97.89:1 ratio. Openings Top: 20" manway with cover, 16" x 12" with cover, 4" for agitator, 3", (3) 2", 1-1/2" threaded, 1-1/2" side bottom outlet. 4" Center bottom outlet with 24" discharge height. Mounted on (3) stainless steel legs. Serial # 8210, National Board # 3136, Built 1994.

Used Equipment Facts About This Machine
Manufacturer: Walker
Model: PZ-CB-SP
Type: Jacketed Processor Kettle / Mixing Vessel
Condition: Used
Year: 1994
Serial Number: 8210

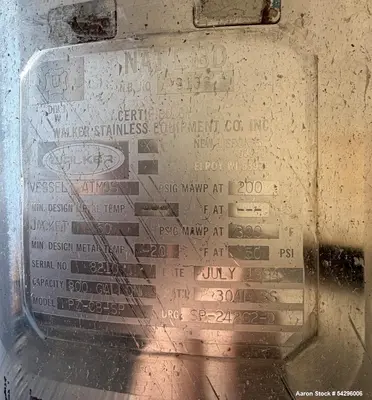

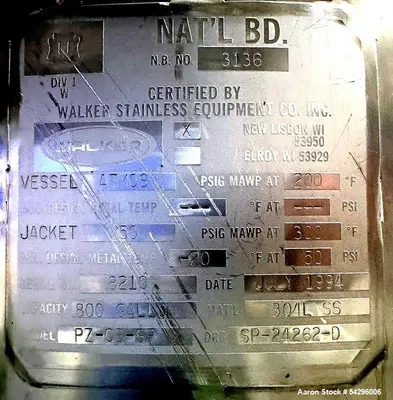

National Board #: 3136

Description
Used Walker 800 Gallon Stainless Steel Processor Kettle, Model PZ-CB-SP, designed for heating, mixing, and processing viscous and temperature-sensitive materials in food, chemical, and pharmaceutical applications.
Constructed from 304L stainless steel, this vertical vessel features a dished top and slight cone bottom, allowing for durability and efficient discharge. The kettle is equipped with a 50 PSI rated jacket, providing reliable heating and cooling capability across a wide temperature range.
The unit includes a top-entering anchor-style scrape agitator, driven by a 5 HP motor with a 97.89:1 gear reducer, ensuring thorough mixing and improved heat transfer by continuously sweeping vessel walls.
With multiple top openings, dual manways, and bottom discharge options, this kettle is highly versatile for batch processing and integration into production systems.

Specifications

Manufacturer: Walker

Model: PZ-CB-SP

Machine Type: Jacketed Processor Kettle

Capacity: Approx. 800 gallons

Construction: 304L Stainless Steel

Orientation: Vertical

Condition: Used

Year: 1994

Vessel Ratings

Internal Rating: Atmospheric

Temperature Rating: Up to 200°F

Jacket System

Pressure Rating: 50 PSI

Temperature Range: -20°F to 300°F

Dimensions

Diameter: Approx. 60 inches

Straight Side Height: Approx. 70 inches

Design Features

Dished top
Slight cone bottom

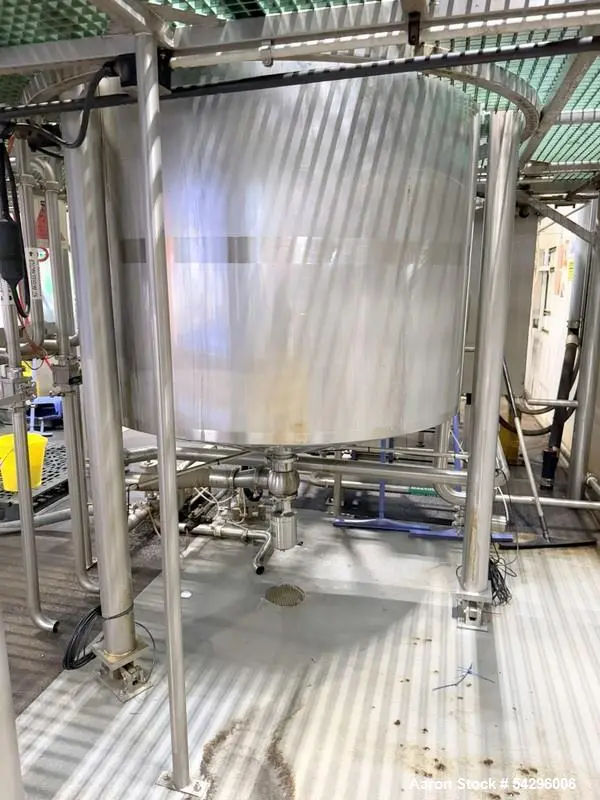

Mounted on (3) stainless steel legs

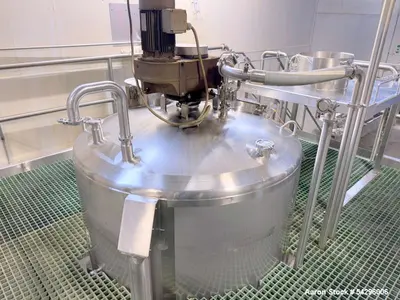

Agitation System

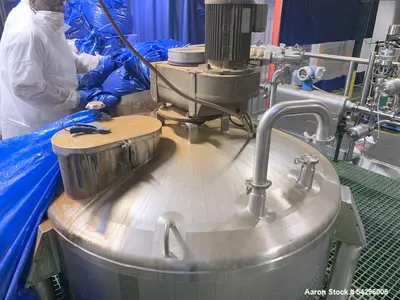

Top-entering anchor-style scrape agitator
Designed for viscous materials and wall scraping

Motor: 5 HP

Voltage: 460 V, 3 Phase, 60 Hz

Motor Speed: 1700 RPM

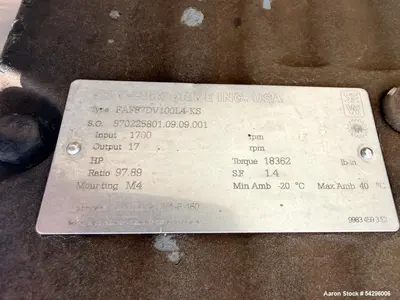

Reducer Ratio: 97.89:1

Openings & Connections
Top:

20" manway with cover
16" x 12" manway with cover
4" agitator opening
(1) 3" nozzle
(3) 2" nozzles
(1) 1-1/2" threaded connection

Side:

1-1/2" side bottom outlet

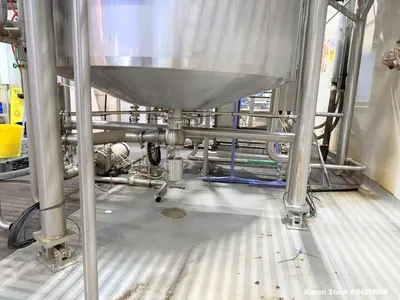

Bottom:

4" center bottom outlet
Approx. 24" discharge height

Applications

Food processing (sauces, soups, syrups)
Dairy processing
Cosmetic and cream production
Pharmaceutical mixing
Chemical blending
Nutraceutical processing
Heated batch processing
High-viscosity material mixing
Industrial liquid processing
Specialty formulation production

What might this be used for

Heating and mixing viscous products
Producing sauces, creams, or pastes
Maintaining consistent temperature during processing
Preventing product buildup with scrape agitation
Blending ingredients uniformly
Processing food-grade or chemical formulations
Supporting batch production
Improving heat transfer efficiency
Preparing products for packaging
Handling temperature-sensitive materials

Products this machine would be used for

Sauces and condiments
Syrups and sweeteners
Dairy products
Creams and lotions
Cosmetic formulations
Nutraceutical liquids
Chemical mixtures
Adhesives
Food pastes
Specialty blends
