USED 2016 MAZAK VCU 500C 3X

Manufacturer: MAZAK
Model: VCU 500C 3X
Year: 2016
Axis_Travels(X;Y;Z): 40" x 20" x 20"
RPM: 12000
HP: 25
ATC: 20
Control: SMART
Price: CALL US!

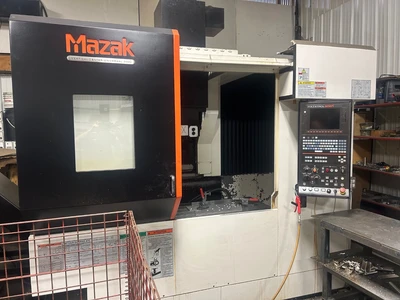

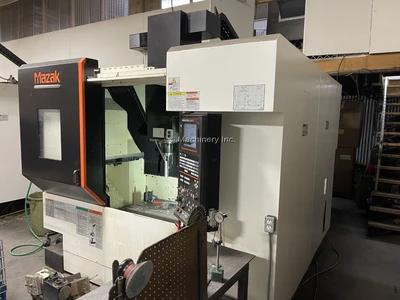

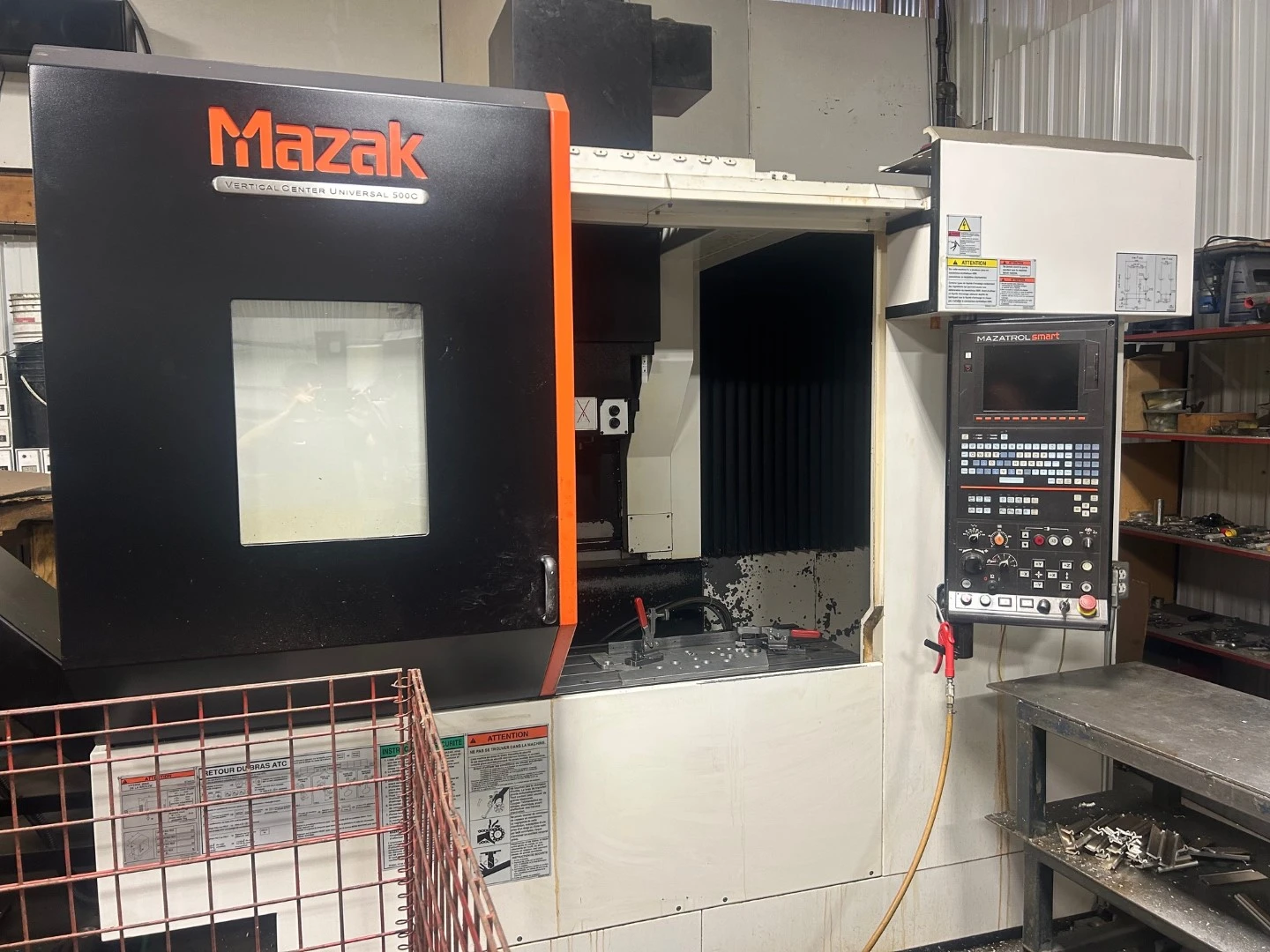

MAZAK VCU 500C 3X CNC VERTICAL MACHINING CENTER, 2016

YEAR: 2016-08


ONLY 781 CUTTING HOURS!!! CUT ALUMINIUM ONLY!


STANDARD SPECIFICATIONS:

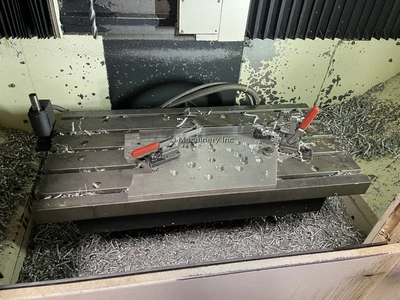

Table Size…………………………………………………………… 19.69” x 41.34”

Maximum Workpiece Size………………………………….. 19.69” x 39.37”

Maximum Workpiece Height……………………………… 20.07”

X-Axis Travel………………………………………………………. 39.37”

Y-Axis Travel………………………………………………………. 19.88”

Z-Axis Travel………………………………………………………. 20.08”

Table Surface Height…………………………….…………... 26.97”

Maximum Table Weight Capacity……………………….. 1300 LBS

Spindle Face to Table Surface (Min/Max)…………... 4.53” / 21.65”

Optional Spindle Speed / Motor (5-min).………..... 12,000 RPM / 25 HP

Spindle Taper……………………………………………………… Taper #40

Rapid Traverse (X,Y,Z)………………………………………… 1181IPM

Number of Tools………………………………………………… 20

Maximum Tool Diameter (adjacent tools)…….…… 3.15”

Maximum Tool Diameter ( no adjacent tools)……. 4.92”

Maximum Tool Length………………………………………. 10.23”

Tool Shank Type………………………………………………… CAT #40

Machine Height……………………………………………….. 131.81”

Floor Space (w x l)……………………………………………. 108.27” x 125”

Machine Weight..…………………………………………….. 18000 Lbs


EQUIPPED WITH:

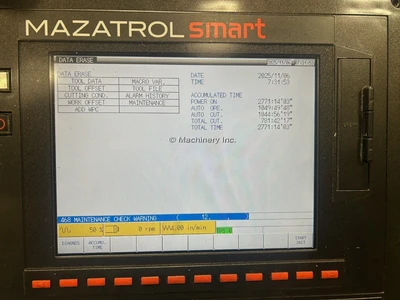

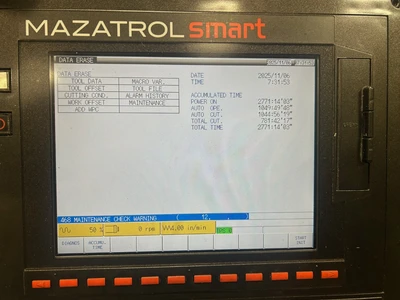

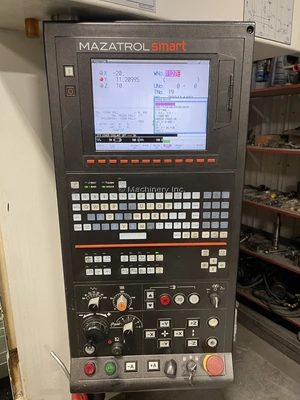

SMART CNC CONTROL

CTS (COOLANT THROUGH SPINDLE) 71 PSI

JORGENSON HINGE CHIP CONVEYOR LEFT SIDE DISP. (48" DISCHARGE) - E-STOP FOR CHIP CONVEYOR

AUTO TOOL LENGTH MEASUR. & BREAK. DETECT. (PLUNGER TYPE)

LAN PORT

B GOO SLOPE CONSTANT

B SYNCHRONIZED TAPPING (G84.2 / G84.3)

POLAR COORDINATES INPUT (G122)

ABSOLUTE ENCODER SYSTEM

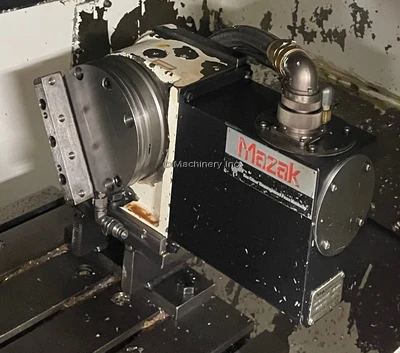

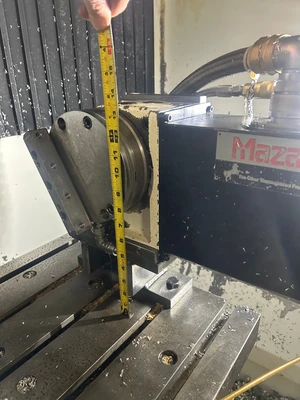

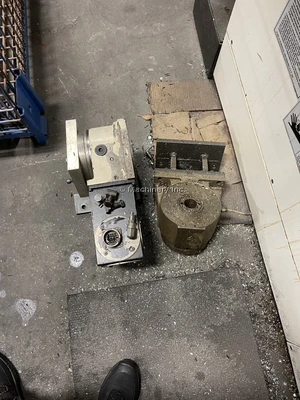

OPTIONAL: 4 AXIS KITAGAWA MR160 NC ROTARY TABLE
