Manufacturer: MAS
Model: VR8A
Year: *
Arm Length: 99"
Drill Cap.: 3.15"
Column Dia.: *
Motor: *
Price: CALL US!

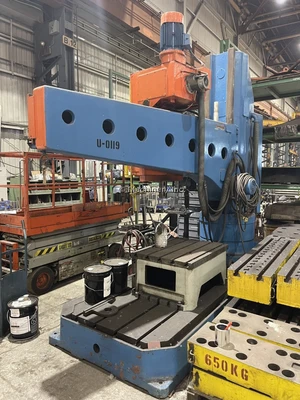

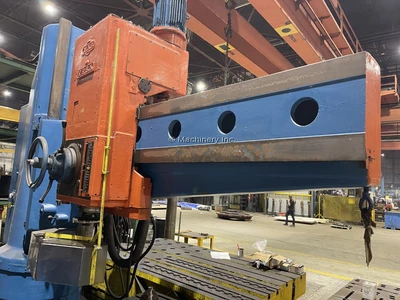

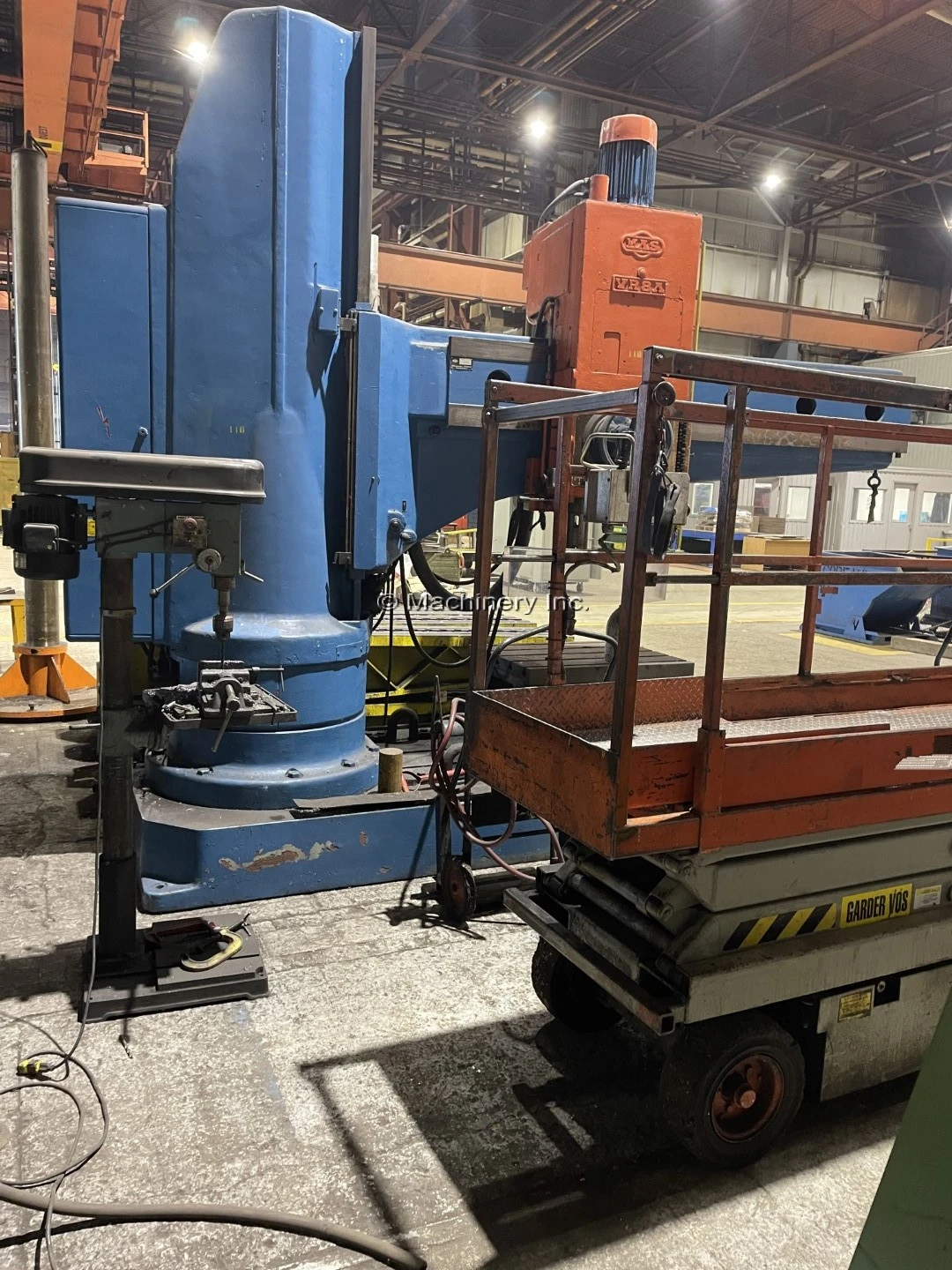

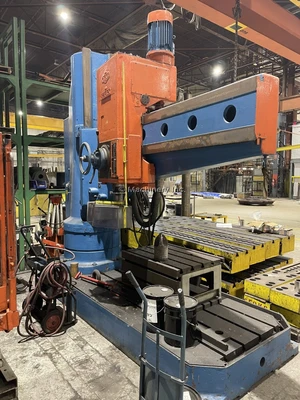

MAS VR8A RADIAL DRILL
Maximum drilling diameter in steel 3 in
Maximum drilling diameter in light metals 4.3 in
Minimum reach (minimum distance of the spindle axis from the column) 20 in
Maximum reach (maximum distance of the spindle axis from the column) 99 in
Minimum distance from the spindle nose to the base 24.5 in
Maximum distance from the spindle to the base 86.5 in

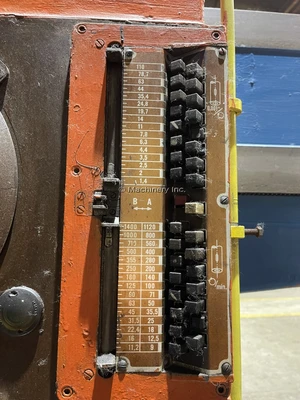

Number of rotary speeds of the spindle 30 pcs
Minimum rotary speed of the spindle 9 1/min
Maximum rotary speed of the spindle 1400 1/min
Length of the base 100 in
Width of the base 54.5 in
Power of the spindle drive 13.4 hp
OVERALL DIMENSIONS:
Machine height 140 in
Machine length 156 in
Machine width 60 in
WEIGHT: 10 800 KG
