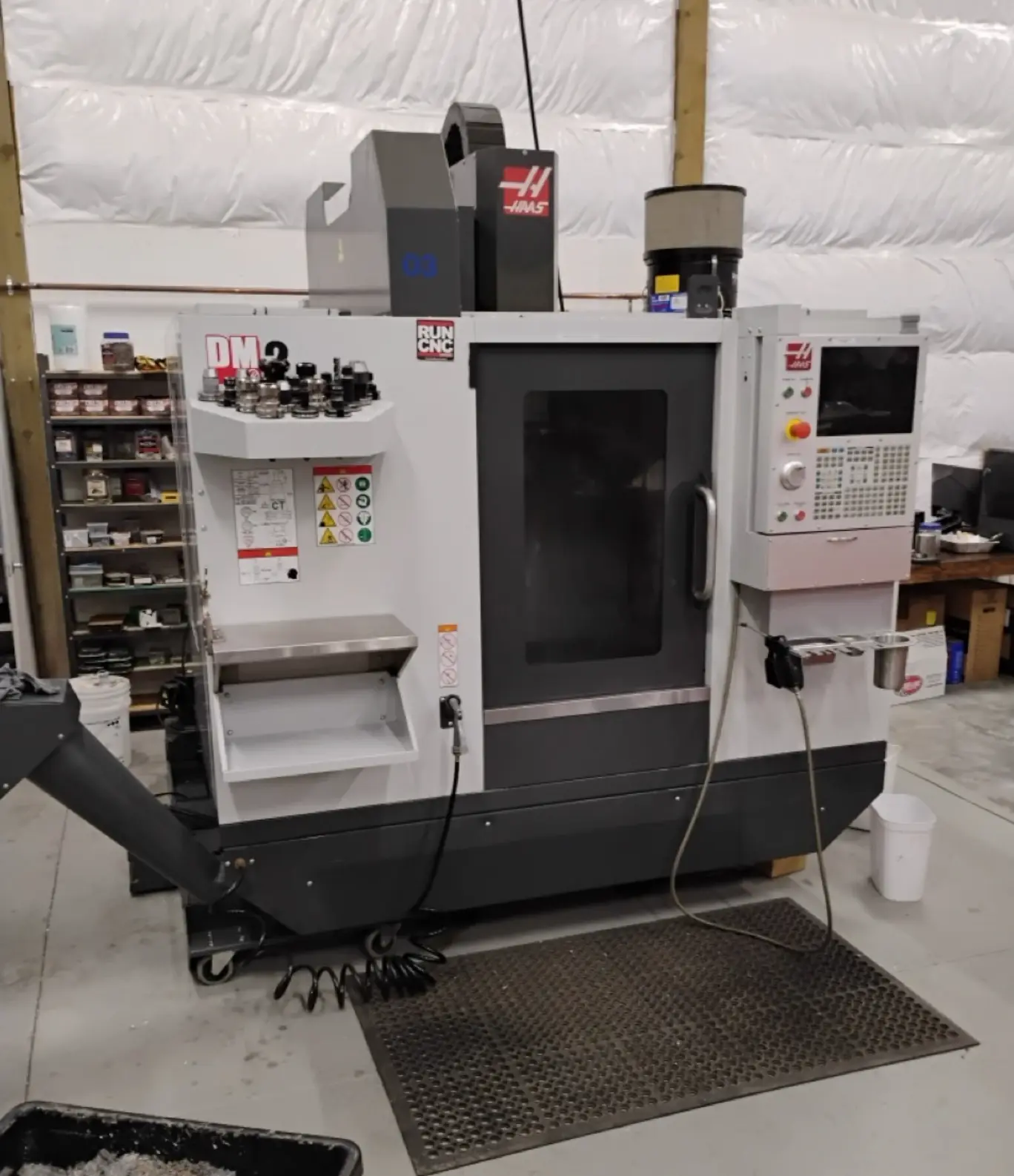

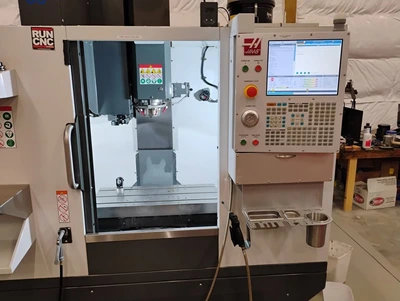

Used Vertical Machining Center, featuring 28" X, 16" Y, and 15.5" Z travel. Equipped with a 15 HP motor, 10,000 RPM spindle, Haas CNC control, 18+1 ATC, Renishaw probe, HR160SP rotary, and more.
| X | 28" | 711.2 mm |
| Y | 16" | 406.4 mm |
| Z | 15.5" | 393.7 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 5,000 RPM | 5,000 RPM |
| # ATC | 18 | 18 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 15" | 381 mm |
| Table-L | 34" | 863.6 mm |
| # Axis | 4 | 4 |
| Control | CNC (HAAS) | CNC (HAAS) |
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 15 HP
ATC: 18 +1
Max Tapping Speed: 5,000 RPM
Machine Weight: 5,500 LBS
Haas CNC Control
HR160SP Rotary
Renishaw Probe
Chip Auger
Macros
Rotation and Scaling
M19 Spindle Orientation
VPS Editing
Compensation Tables
Rigid Tapping
High-Speed Machining
Media Display
Through-Spindle Coolant
Wireless Networking
