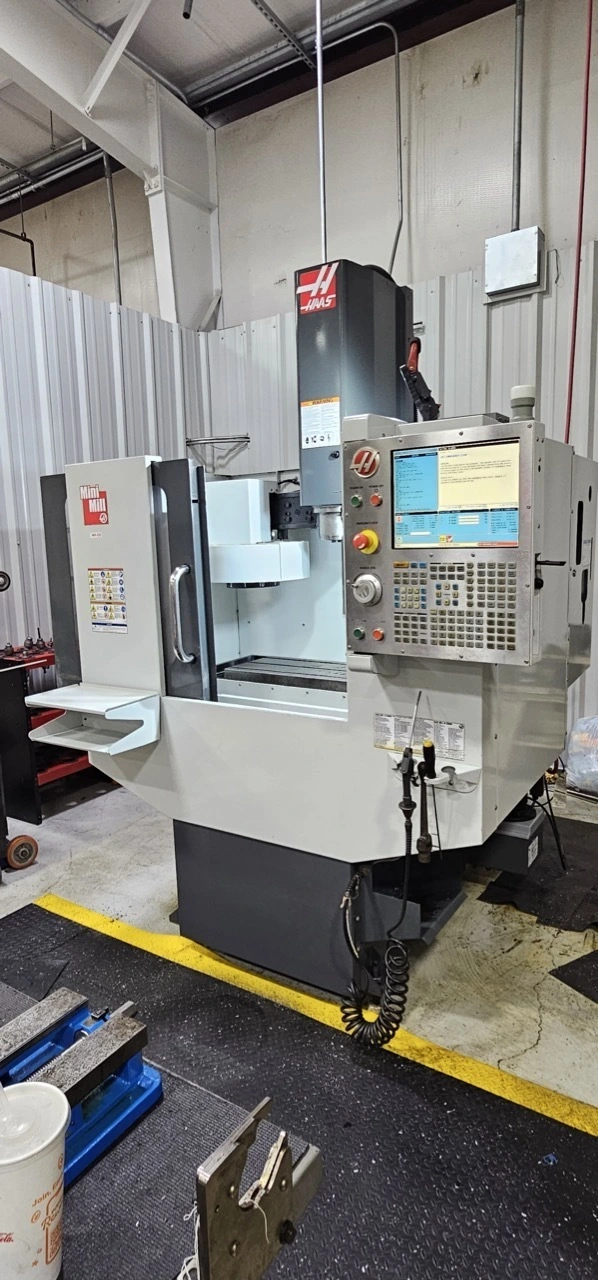

Used Vertical Machining Center with a 36x12" table, 16x12x10" travel, 6000 RPM spindle speed, 10-tool changer, and Haas CNC control. Equipped with rigid tapping, chip auger, and coolant system.
| X | 16" | 406.4 mm |
| Y | 12" | 304.8 mm |
| Z | 10" | 254 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 10 | 10 |
| Taper | 40 | 40 |
| Table-W | 12" | 304.8 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 67″ x 76″ x 87″ | 67″ x 76″ x 87″ |
Table Size: 36″ x 12″
Max Weight on Table: 500 lb
X-Axis: 16
Y-Axis: 12″
Z-Axis: 10″
Spindle Speed: 6,000 RPM
Max Rating: 7.5 hp
Spindle Taper: 40
Rapid Traverse Rate (X/Y/Z): 600 IPM
Auto Tool Changer Capacity: 10 Stations
Tool Change Time: 4.2 Seconds
Electrics: 208/240 V; 3/1 Ph; 50/60 Hz
Approx Machine Dimensions: 67″ x 76″ x 87″
Approx Machine Weight: 3,400 lbs
Haas CNC Control
Rigid Tapping
Chip Auger
USB Port
Coolant Tank, Pump & Aux
