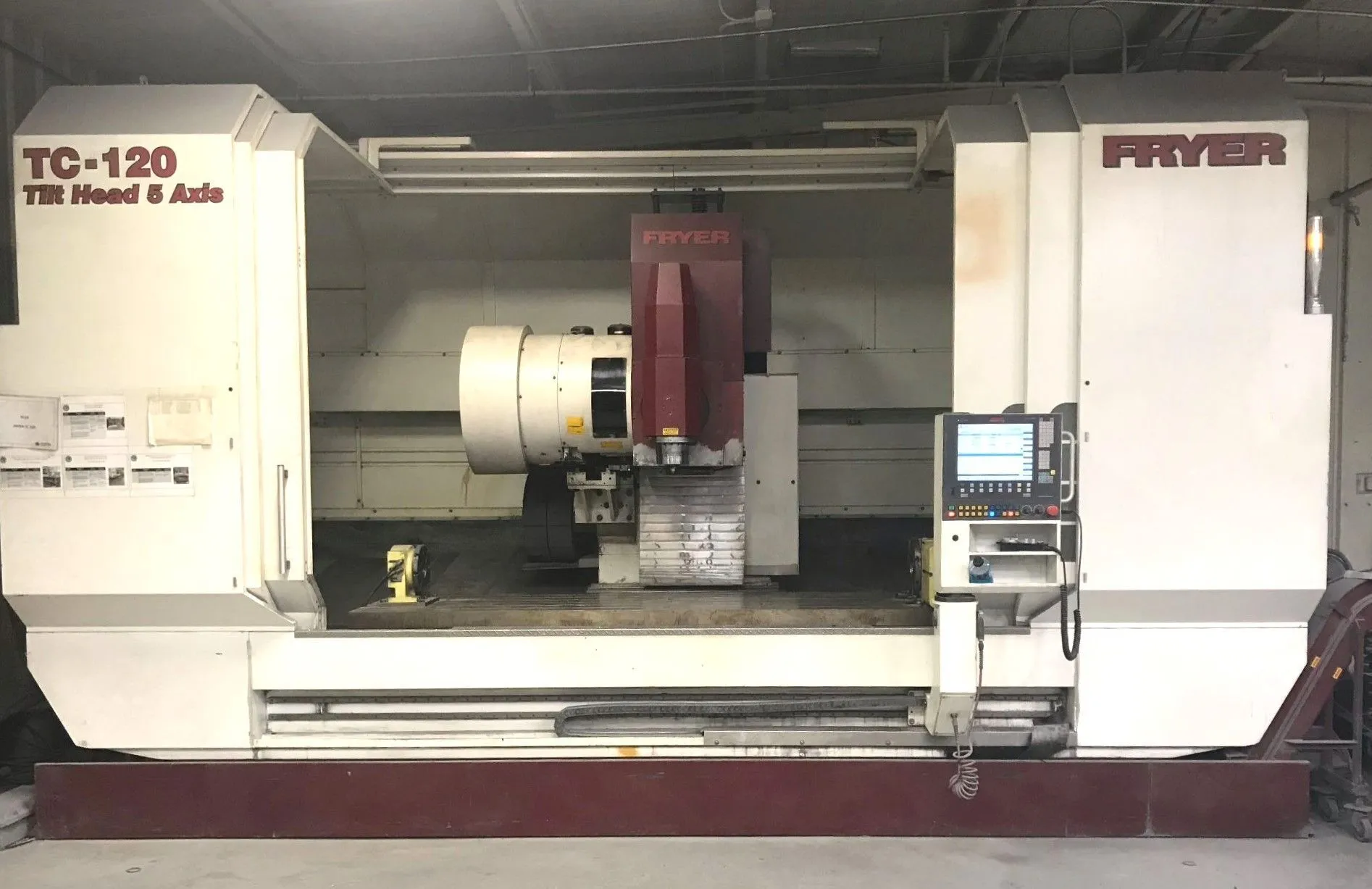

USED 2019 FRYER TC-120V
Description
Fryer TC-120V 5 Axis 100" x 32" Machining Center (2019) 5 Axis
Specifications
| X | 120" | 3,048 mm |
|---|---|---|
| Y | 24" | 609.6 mm |
| Z | 24" | 609.6 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 8,500 RPM | 8,500 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-40 | CAT-40 |
Fryer TC-120V 5 Axis 100" x 32" Machining Center (2019)
Travels:
X-Axis: 120"
Y-Axis: 32"
Z-Axis: 28"
B-Axis: +/- 100°
A-Axis: +/- 360°
Table Size: 120" x 32"
Table Load: 10,000 Lbs
T-Slots: 6/.787"
Table Top to Floor: 38"
Spindle Motor: 40 HP
Spindle Speed: 18,000 RPM
Spindle Taper: CAT 40 BIG PLUS
Spindle Center-Column: 32"
Tool Changer: 24 ATC
Equipped With
Siemens 840D SL CNC Control
Full 5-Axis Contouring
Nikken 10" High Accuracy Rotary Table
10" Nikken Heavy Duty Tailstock with Brake
Automatic Door System
Chip Conveyor
Chip Washdown System
Roller Linear Ways
300 PSI Coolant Thru Spindle
Dimensions: 245" x 138" x 118" H, 42000 Lbs
