36" x 24" Bed , 4" , 120 SPM
| Tonnage | 75 T | 68.039 t |
| Stroke | 4" | 101.6 mm |
| Shut Height | 17" | 431.8 mm |
| Bed W | 24" | 609.6 mm |
| Bed L | 36" | 914.4 mm |
| SPM | 120 strokes/min. | 120 strokes/min. |
| Air Clutch (Yes/No) | Yes | Yes |
| Crank (Single/Double) | Single | Single |
| size | 75 Ton | 75 Ton |

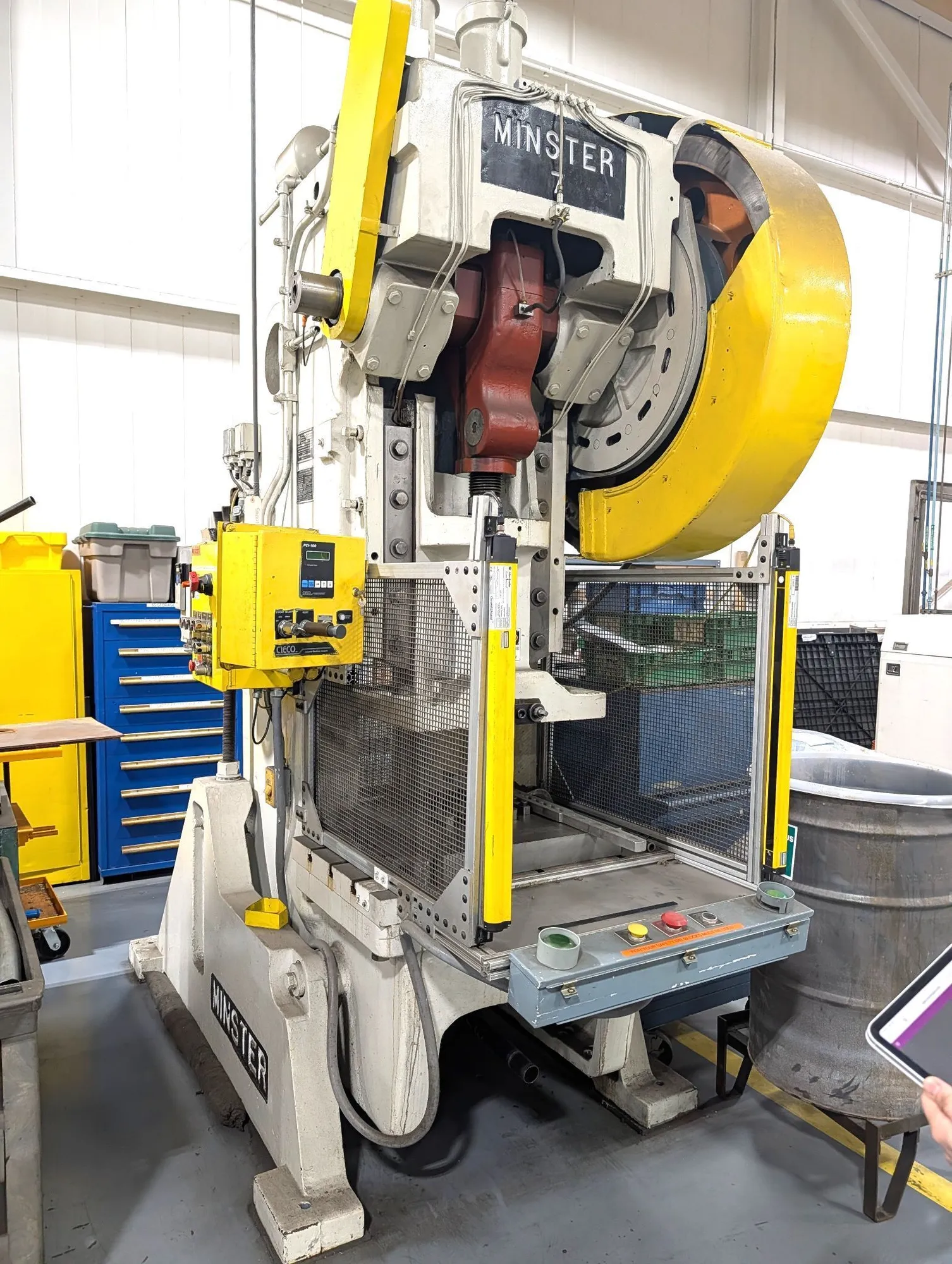

Minster #7 75 Ton Punch Press
Model #7
Capacity 75 Ton
Stroke Of Slide 4"
Shut Height (Sdau) Over Bed
Area Of Bed 24" X 36"
Area Of Slide 16" X 24"
Bolster T Slotted 24" X 36" X 3 1/2"
Stroke Per Minute 120
Width Of Opening In Back 19"
Slide Adjustment 4"
Motor 7-1/2 Hp
Air Clutch, Air Brake, Air Counter Balance, 36" x 24" Bed , 4" , 120 SPM, Controls Run/Single/Inch, Dual Palm Control
