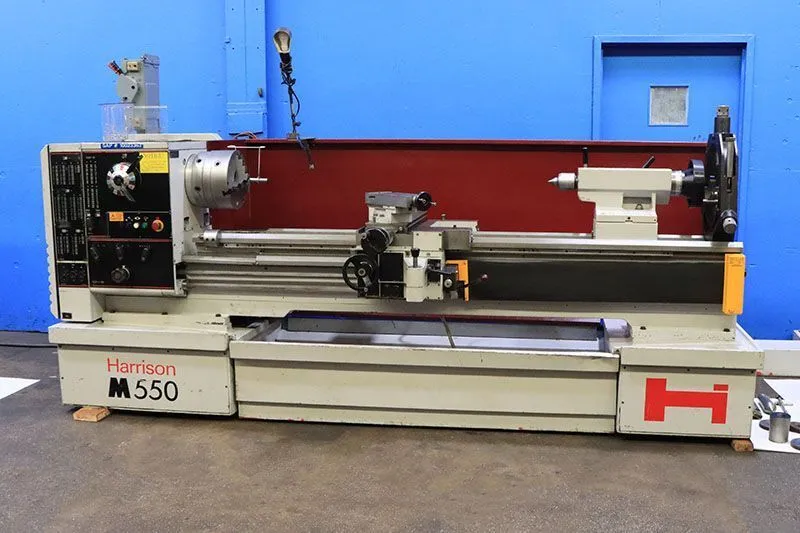

USED 1996 HARRISON M550 GH
Overview
Harrison M550 GH lathe, 1996 model with a removable gap. This used piece is ideal for precision machining projects, representing a solid addition to any workshop seeking reliable equipment for complex tasks.
Specs
SWING OVER BED .................... 21.8"
SWING IN REMOVEABLE GAP ........... 32.7"
SWING OVER CROSS SLIDE ............ 14.5"
DISTANCE BETWEEN CENTERS .......... 80"
WIDTH OF BED ...................... 15.7"
HOLE THRU SPINDLE ................. 3.5"
SPINDLE NOSE CAMLOCK .............. D1-11"
SPINDLE SPEED RANGE (16) .......... 18 - 1400 RPM
THREADING RANGE ENGLISH (51) ...... 2 - 84 TPI
THREADING RANGE METRIC (54) ....... 0.2 - 14 mm
LONGITUDINAL FEED RANGE ........... .0016" - .110" IPR
CROSS FEEDS HALF THE VALUES OF LONGITUDINAL
TAILSTOCK SPINDLE TRAVEL .......... 5.7"
TAILSTOCK SPINDLE TAPER ........... #6 MT
APPROXIMATE WEIGHT ................ 10,500 LBS
APPROXIMATE DIMENSIONS ............ 140"L x 57"W x 60"H
Equipped With
INCH/METRIC THREADING CAPABILITY
REMOVEABLE GAP BED
PRATT BURNERD 3-JAW CHUCK
4-JAW CHUCK
FACEPLATE
ROLLER TYPE STEADY REST
FOLLOW REST
LIVE CENTER FOR TAILSTOCK
MICROMETER CARRIAGE STOP
THREAD DIAL INDICATOR
COOLANT SYSTEM WITH REMOVEABLE CHIP PAN
12-1/2 HORSE POWER MAIN DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
