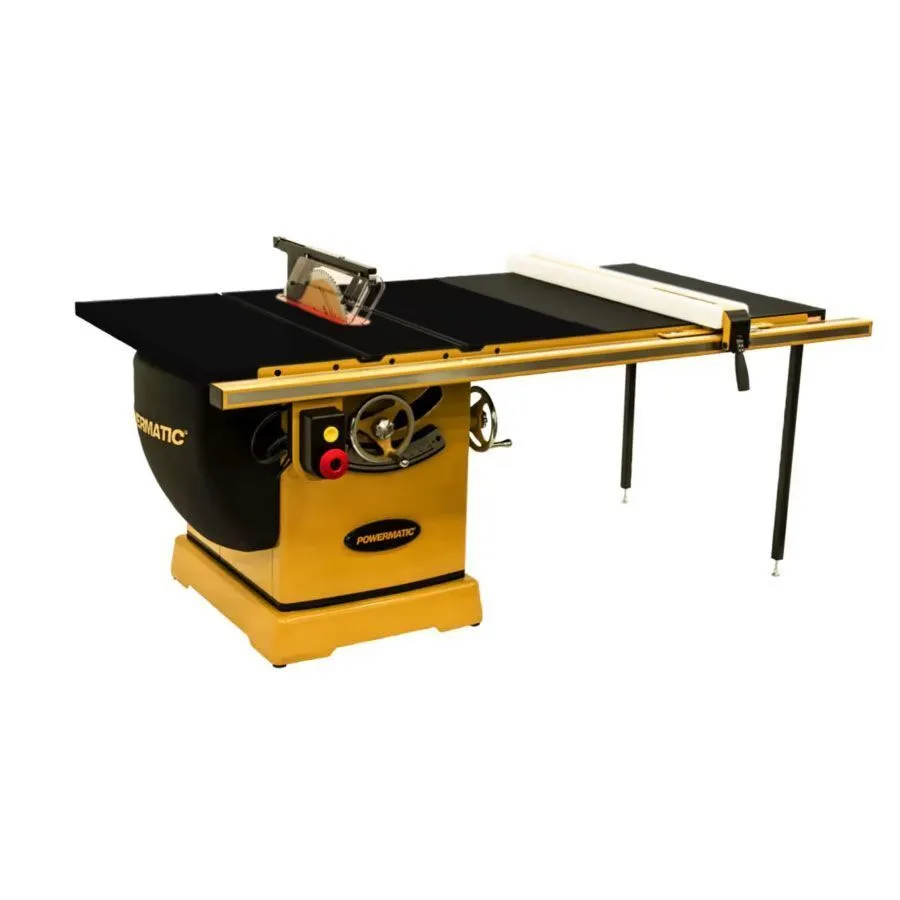

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the PM3000B brings heavyweight performance and patented innovations to the 14-inch table saw arena.
| Blade Diameter | 14" | 355.6 mm |
| Arbor Diameter | 1" | 25.4 mm |
| Arbor Speed | 4500 rpm | 4,500 RPM |
| Maximum Depth of Cut | 5.125" | 130.17 mm |
| Maximum Depth of Cut at 45 Degrees | 3.5" | 88.9 mm |
| Maximum Rip Right of Blade | 50" | 1,270 mm |
| Maximum Rip Left of Blade | 14" | 355.6 mm |
| Maximum Width of Dado | 0.8125" | 20.638 mm |
| Maximum Diameter of Dado | 8" | 203.2 mm |
| Table Height from Floor | 34.25" | 869.95 mm |
| Table Type | Cast Iron | Cast Iron |
| Table Size (inches) | 26 x 38 | 26 x 38 |
| Motor Power | 7.5HP 3phase 230V | 7.5HP 3phase 230V |
| Dimensions | 84-11/16 x 46-1/2 x 42-7/8 in. | 84-11/16 x 46-1/2 x 42-7/8 in. |
| Weight | 830.0 lbs. | 830.0 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 5 YEAR – For Commercial Use
WARRANTY: 2 YEAR – For Industrial Purposes
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
