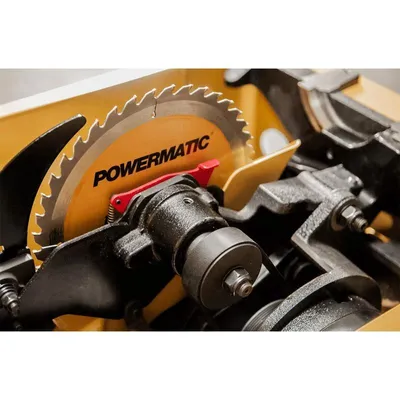

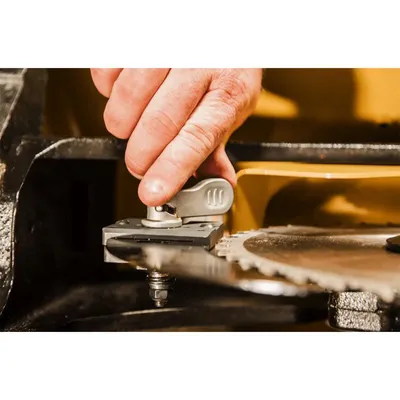

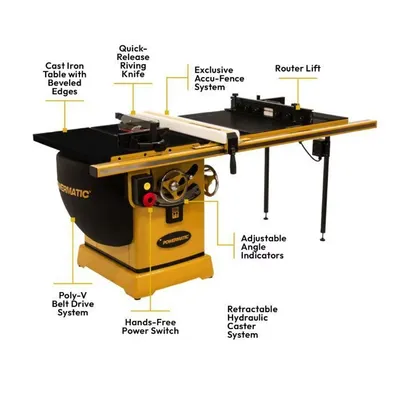

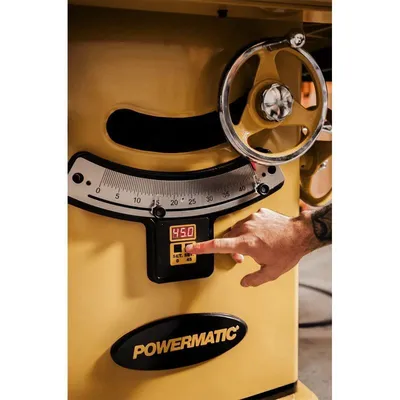

The ArmorGlide coated cast iron tables are oversized, and the redesigned arbor lock lever is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale features an integrated digital readout as well as adjustable angle indicators for repetitive bevel cuts.
| Blade Diameter | 10" | 254 mm |
| Arbor Diameter | 0.625" | 15.875 mm |
| Maximum Depth of Cut | 3.125" | 79.375 mm |
| Maximum Depth of Cut at 45 Degrees | 2.125" | 53.975 mm |
| Maximum Rip Right of Blade | 50" | 1,270 mm |
| Maximum Rip Left of Blade | 13.5" | 342.9 mm |
| Maximum Width of Dado | 0.8125" | 20.638 mm |
| Maximum Diameter of Dado | 8" | 203.2 mm |
| Table Type | Cast Iron | Cast Iron |
| Motor Power | 5 HP 3phase 230V | 5 HP 3phase 230V |

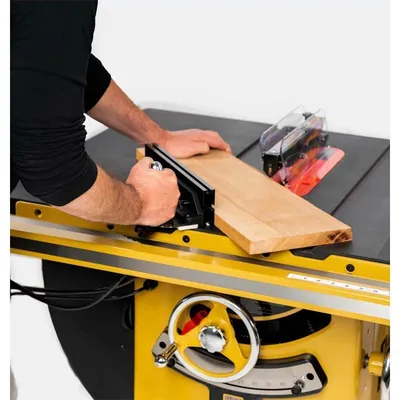

| Miter Gauge Type | T-Slot with Stops | T-Slot with Stops |
| Dimensions | 84-3/4 x 39-1/8 x 40-3/8 in. | 84-3/4 x 39-1/8 x 40-3/8 in. |
| Weight | 737 lbs. | 737 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 5 YEAR – For Commercial Use
WARRANTY: 2 YEAR – For Industrial Purposes

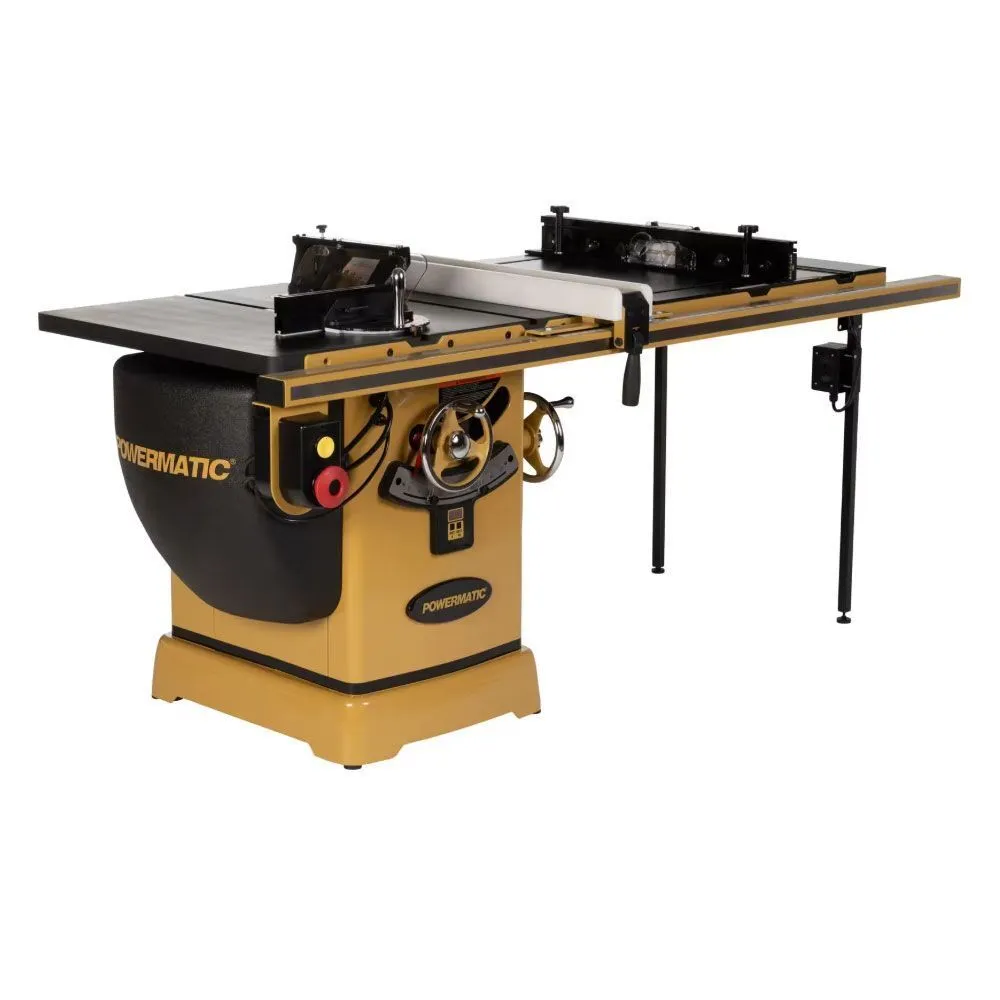

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
