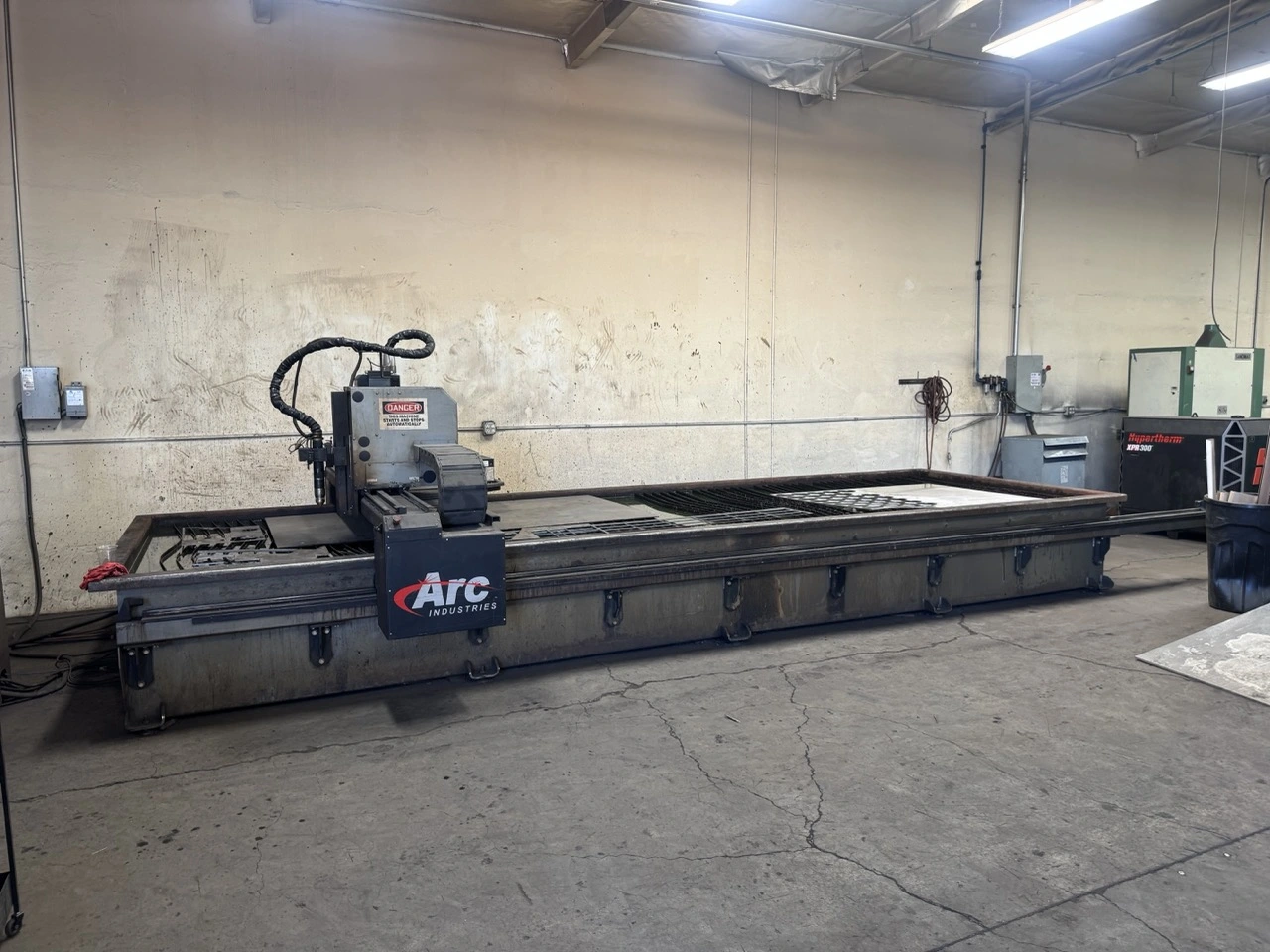

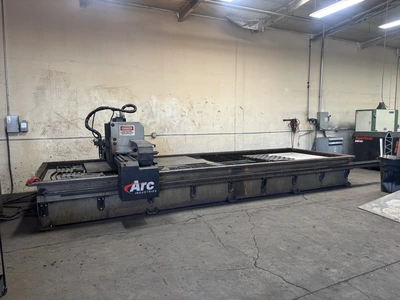

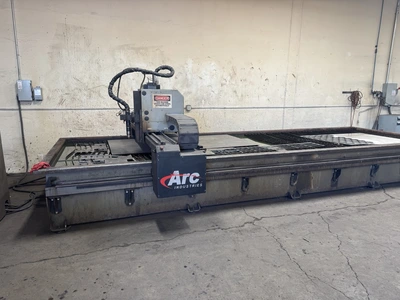

USED 2022 ARC INDUSTRIES ARC CUT PRO 20620

Capacity: 6‘ x 20‘

Machine & Table
Effective cut width: 78″
Effective cut length: 252″
Maximum plate thickness capacity: 4″
Precision Ground Linear Profile Rails Helical Rack and pinion drive, 2-1000 IPM
Maximum load capacity: 19,700 lbs (evenly distributed)
Approximate shipping weight: 9,950 lbs
Water capacity (unitized table): 1,444 gallons (12,500 lbs when filled)

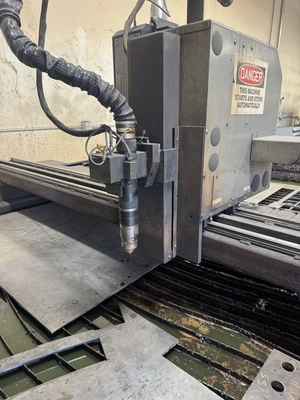

Torch & Cutting Specs
Torch height control range: 8.5″ motion range
Cutting speed: up to 1,000 IPM
Pierce capacity (mild steel, O₂): 1.75″
Pierce capacity (argon-assist): 2″
Severance capacity (mild steel): 3.125″
Severance capacity (stainless steel): 3″
Severance capacity (aluminum): 2″
Equipped With:;

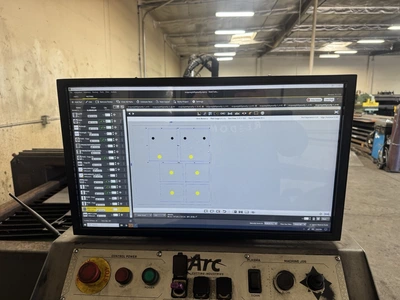

Arc Cutting Industry ATek Series Control
Pneumatically adjustable water level for easy cleanout

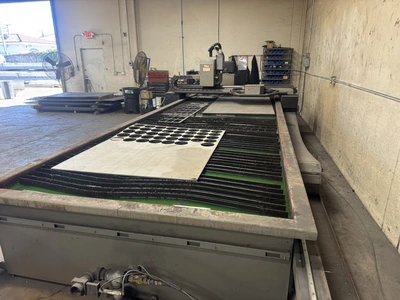

Dual chamber water table with 2″ drain valve
Heavy-duty linear rails tucked under frame for protection
Helical rack & pinion drive with planetary gearboxes (low backlash)
Yaskawa Sigma-7 servo drive package (up to 1,000 IPM)

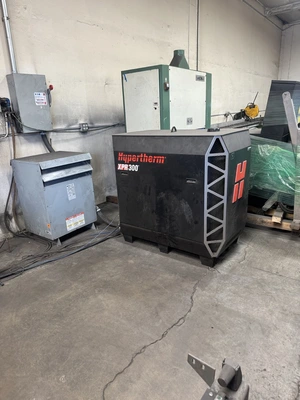

Hypertherm XPR 300 plasma system with VWI gas console
