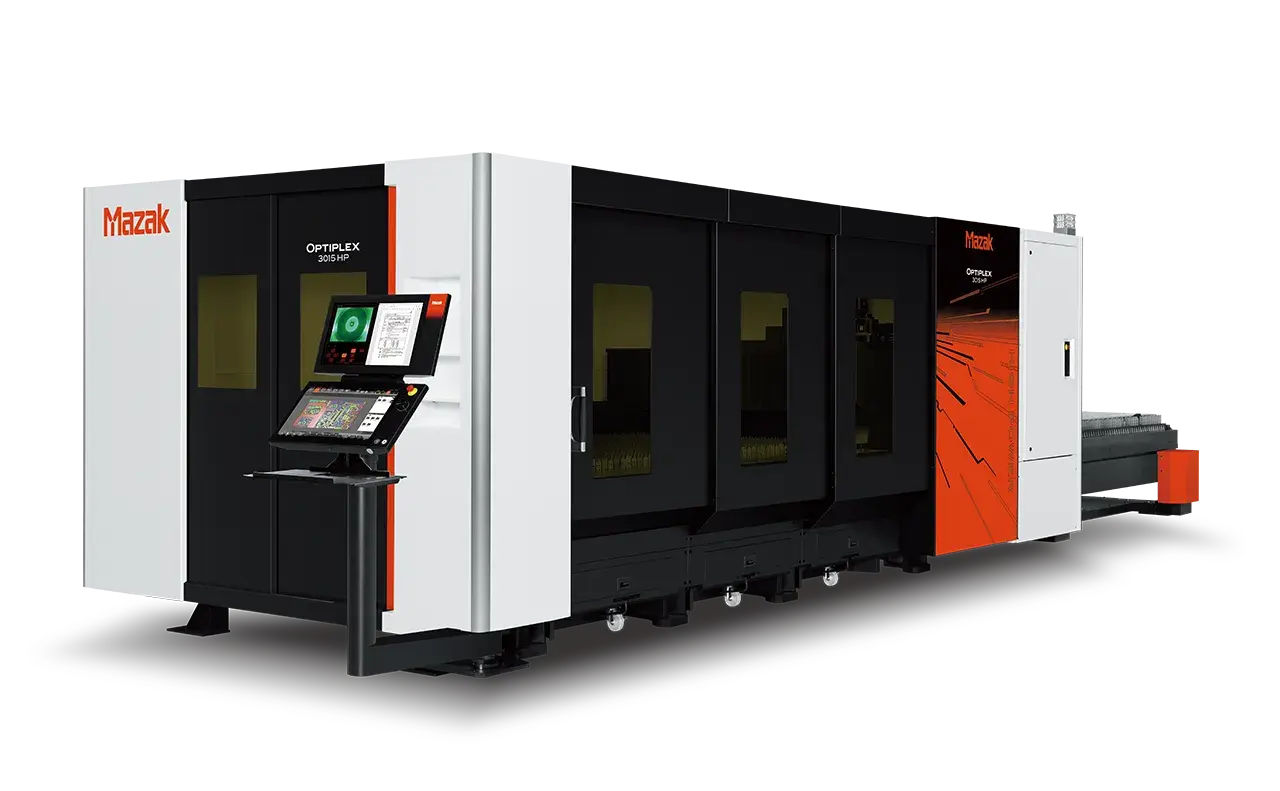

NEW MAZAK OPTIPLEX 3015 HP

OPTIPLEX HP
Stable processing of thick materials at high speed and high quality

Equipped with Mazak SmoothCUT 30kW, 20kW & 15kW laser oscillator
Laser processing technology “GRAND CUT” enables stable continuous machining of thick materials
Design focused on usability and ease of operation
Equipped with proprietary resonator “Mazak SmoothCUT”
Equipped with CNC system MAZATROL SmoothLx

Achieves high speed and high quality processing
Equipped with laser processing technology that allows processing of materials up to 2 inches thick
Mazak SmoothCUT and GRAND CUT raise the temperature of the molten iron while cutting to improve quality of the cut surface. In addition, In 1 inch thick mild steel, perpendicularity has been improved by more than 80% compared to conventional machines. High-quality continuous machining of thick mild steel materials up to a thickness of 2 inches, can be performed stably, while minimizing the occurrence of processing defects.

A: Cut surface using conventional resonator
B: Cut surface of a material with thickness of 2 inches using GRAND CUT + Mazak SmoothCUT

Wide opening doors
Sliding doors are installed on the front and side face of the machine, minimizing the floor space required. The doors are designed to provide generous space. It ensures easier loading and unloading.

Wide, flat screen for easier operation
CNC system MAZATROL SmoothLx
Operators can see the entire nesting board at a glance with dual 21.5 inch wide screens. Apart from the Emergency Stop and Rotary Switch buttons, operational buttons feature a flat design. Pictograms make the operation more intuitive and user-friendly.

Workpiece size Max. worksheet size 60" × 120"
Laser resonator Laser power 15.0 kW / 20.0 kW / 30.0 kW
Stroke X-axis 122"
Y-axis 62"
Z-axis 5"
Rapid traverse rate X-axis 4724 IPM
Y-axis 4724 IPM
Z-axis 2362 IPM
CNC system Model MAZATROL SmoothLx
Control method semi-closed loop
Programming method EIA / ISO
Monitor 21.5" color LCD
Machine size Width × Length 114" × 386"
Height 92"
