USED 1986 Brown & Sharpe 1024U, 1987, SWING DOWN I.D., FULL AUTO CYCLE

10" Swing 24" Centers Brown & Sharpe 1024U, 1987, SWING DOWN I.D., FULL AUTO CYCLE OD GRINDER

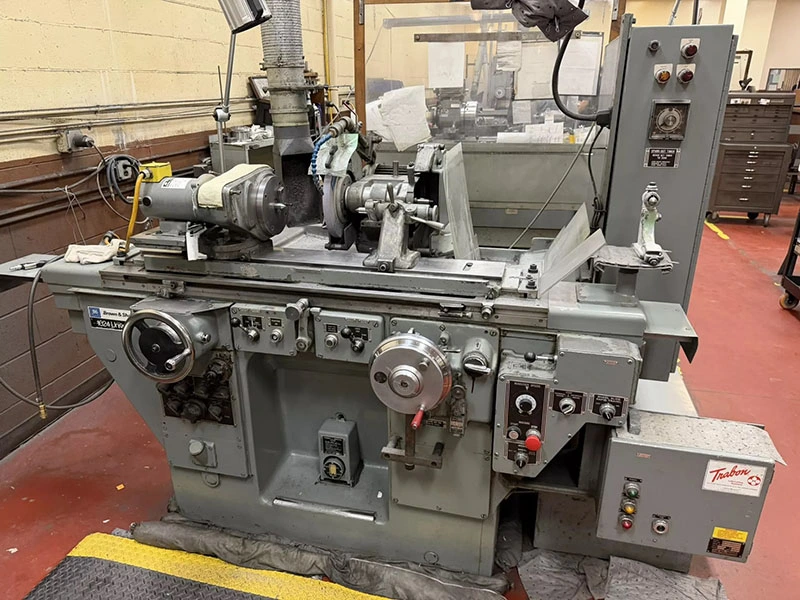

      10" X 24" BROWN & SHARPE

       *** MADE IN USA ***

   UNIVERSAL CYLINDRICAL GRINDER

** SWING DOWN FACTORY I.D. ATTACHMENT

    AND A BROWN & SHARPE I.D.

    GRINDING SPINDLE, ARE

    AVAILABLE TO PURCHASE

    FOR THIS MACHINE, P.O.R. **

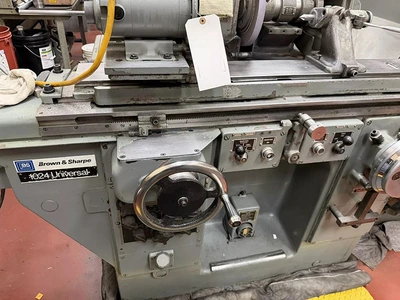

MODEL: 1024U   S/N: 521-1024-376    NEW: 1987

        ** FULL AUTO CYCLE **

- PICK, PLUNGE, RAPID, SPARKOUT TIMER -

CAPACITY:

SWING OVER TABLE .................... 10"

DISTANCE BETWEEN CENTERS, NOMINAL ... 24"

DISTANCE BETWEEN CENTERS, MAXIMUM ... 26-3/4"

TABLE:

INFINITELY VARIABLE TABLE SPEED ..... 3" TO 150" IPM

TABLE PER REV. OF HANDWHEEL:

   SLOW ............................. 0.1"

   FAST ............................. 1.5"

DWELL AT EACH OR ALTERNATE

 TABLE REV. ......................... 0 - 2-1/2 SEC.

TABLE SWIVEL, SCALES FOR

  ANGULAR SETTING ................... 8-1/4 DEG.

SCALES-TAPER PER FT. ................ 3-1/2"

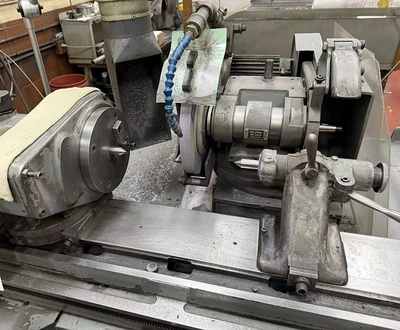

WHEELHEAD:

GRINDING WHEEL SIZE ................. 12" x 1" x 5"

MINIMUM GRINDING WHEEL WIDTH ........ 3/8"

WHEELHEAD SPINDLE SPEEDS (3) .... 2100, 2400 & 2800 RPM

SWIVEL AT THE WHEELSLIDE ............ 90° EITHER WAY

WHEEL SPINDLE SWIVELS ............... 90° EITHER WAY

MAX. TRAVEL OF WHEELSLIDE ........... 5"

CROSSFEED HANDWHEEL GRAD. ........... 0.00002"

AUTOMATIC CROSS FEED,

  REDUCTION IN DIAMETER OR WORK

  AT EACH OR ALTERNATE REVERSALS .... 0.0001" - .003"

HAND FEED PER REV. OF HANDWHEEL:

   SLOW ............................. 0.1"

   FAST ............................. 0.3"

WORKHEAD & TAILSTOCK:

INFINITELY VARIABLE SPINDLE SPEEDS .. 60 TO 600 RPM

HEADSTOCK SPINDLE NOSE TAPER ........ A2-5"

HEADSTOCK SWIVELS,

 EITHER SIDE OF ZERO ................ 90°

TAILSTOCK SPINDLE TAPER ..............#7 JARNO

TAILSTOCK SPINDLE TRAVEL ............ 5/8"

APPROXIMATE WEIGHT .................. 5,100 LBS

UNIQUE TO BROWN & SHARPE GRINDERS FEATURE

 - DOUBLE SWIVEL WHEELHEAD:

THE WHEEL SPINDLE HEAD WHICH SUPPORTS THE

 EXTERNAL AND INTERNAL GRINDING SPINDLES

 CAN BE SWIVELED TO 90° EITHER SIDE OF ZERO.

 AN ADDITIONAL SWIVEL THROUGH 90° IS

 PROVIDED AT THE WHEEL SLIDE.  ANY COMPOUND

 SETTING  REQUIRED IN COMBINATION

 STRAIGHT & TAPER OR DOUBLE TAPER GRINDING,

 O.D. OR I.D., CAN BE MADE QUICKLY

 AND ACCURATELY.

THE UNIVERSAL TURRET, WHICH SUPPORTS THE

 WHEEL SPINDLE HEAD, PROVIDES FURTHER

 ADJUSTMENT FOR CHANGE OF WHEEL LOCATION.

 THE TURRET SWIVELS ON THE WHEEL SLIDE,

 AND CAN BE LOCKED IN ANY OF FOUR POSITIONS.

 EACH CHANGE MOVES THE WHEEL 2".

 RIGHT HAND WHEEL MOUNTING PROVIDES FOUR

 ADDITIONAL WHEEL POSITIONS.

MACHINE FEATURES:

INFEED HANDWHEEL GRADUATED TO READ TO 0.000020"

HYDRAULIC TABLE TRAVERSE

AUTO INFEED OF WHEELHEAD @ TABLE REVERSALS

AUTO PLUNGE INFEED OPTION

POWER RAPID WHEELHEAD ADVANCE & RETRACTION

SPARKOUT TIMER

ADJUSTABLE TABLE DWELL

L.H. OR R.H. WHEEL MOUNTING

SELF-CONTAINED HYDRAULIC SYSTEM

OIL CHILLER UNIT (FAN COOLED)

EQUIPPED WITH:

"TRABON" AUTOMATIC LUBRICATION SYSTEM,

 WITH INDICATOR LIGHTS

DUAL DEAD/LIVE HEADSTOCK SPINDLE

CENTER IN WORKHEAD

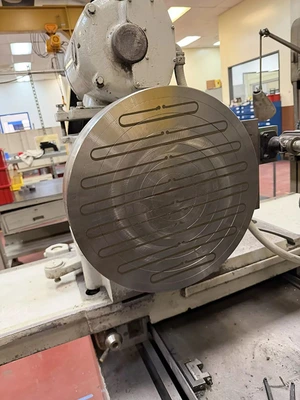

MAGNETIC CHUCK

TABLE MOUNTED WHEEL DRESSER

COOLANT SYSTEM

MOTORS ARE 3/60/230-460 VOLTS

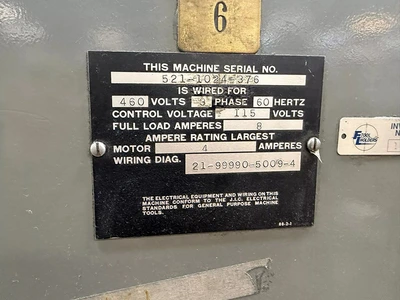

MACHINE IS WIRED PRESENTLY FOR 460 VOLTS,

  8 FULL LOAD AMPS

SPECIAL NOTE:

THIS MACHINE IS PRESENTLY NOT EQUIPPED WITH

 A SWING DOWN I.D. GRINDING ATTACHMENT,

 WITH B & S I.D. GRINDING SPINDLE.

 WE HAVE A COMPLETE UNIT IN STOCK.

 IT CAN BE ADDED TO THIS MACHINE.

 PRICE IS AVAILABLE UPON REQUEST.

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

** SUPERIOR CONDITION - ORIGINAL PAINT **

FOR MORE INFORMATION: Call Andy at 973-497-7600
