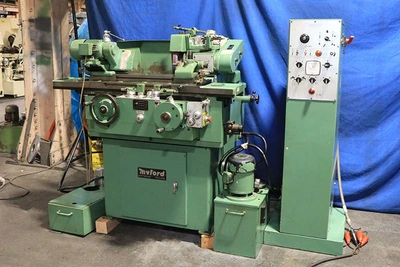

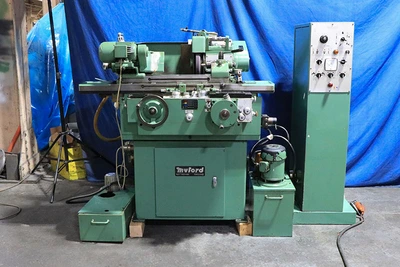

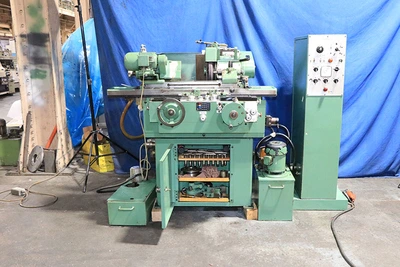

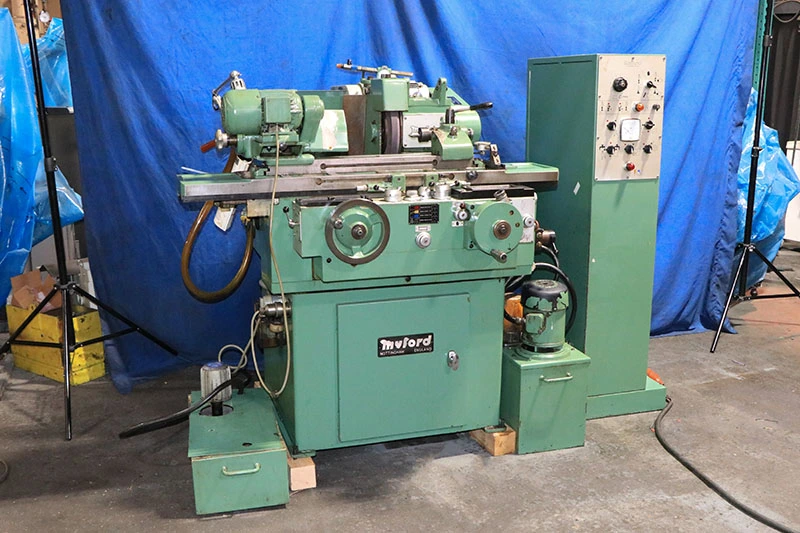

USED 1990 Myford MG12-HPM, NEW 1990, HYD. TABLE, AUTO INFEED,

5" Swing 12" Centers Myford MG12-HPM, NEW 1990, HYD. TABLE, AUTO INFEED, OD GRINDER, DUAL RATE AUTO PLUNGE, RAPID, SPARKOUT, COOLANT

  5" X 12" MYFORD "MADE IN ENGLAND"

        HIGH-PRECISION

  HYDRAULIC CYLINDRICAL GRINDER

** SWING DOWN I.D. ATTACHMENT AVAILABLE **

MODEL: MG12-HPM      HPM-164782      NEW:1990

MAXIMUM GRINDING DIAMETER ............. 3"

SWING OVER TABLE ...................... 5"

CAPACITY BETWEEN CENTERS .............. 12"

MAXIMUM TABLE TRAVEL .................. 13-3/4"

TABLE SWIVELS EITHER WAY .............. 10 DEGREES

TABLE TRAVEL PER REV. OF HANDWHEEL .... 0.44"

HYDRAULIC TABLE TRAVERSE .............. 0 TO 120" IPM

DWELL (CARRIAGE) ...................... 0 TO 8 SECONDS

WHEELHEAD (ALL GRADUATIONS,

 ON WORK DIA.:

TOTAL TRAVEL BY FEED SCREW ............ 3-7/8"

HYDRAULIC RAPID RETRACTION ............ 1-1/8"

INFEED PER REV. OF HANDWHEEL .......... 0.04"

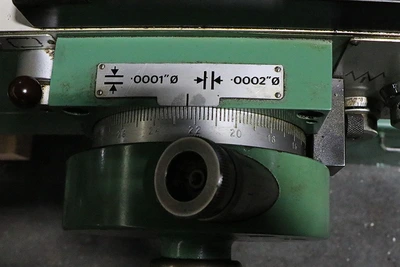

WHEEL FEED GRADUATION ................. 0.0002"

FINE FEED TO DEAD STOP ................ 0.00005"

TOTAL PLUNGE INFEED ................... 0.200"

PLUNGE FEED RATE, MAXIMUM ............. 0.125" IPM

PLUNGE FEED RATE, MINIMUM ............. 0.0025" IPM

INTERMITTENT INFEED, COARSE, MAXIMUM .. 0.002"

INTERMITTENT INFEED, FINE, MINIMUM .... 0.00005"

SPARKOUT .............................. 0 TO 50 SECONDS

WHEEL SPEEDS (2) ...................... 1830 & 1988 RPM

GRINDING WHEEL ........................ 12" X 1-1/2" X 5"

WORKHEAD:

SPINDLE SPEEDS, INFINITELY VARIABLE ... 50 TO 900 RPM

CAPACITY THRU STANDARD DRAW TUBE ...... 3/4"

MAXIMUM COLLET CAPACITY ............... 3/4"

APPROXIMATE WEIGHT .................... 2,226 LBS

MACHINE FEATURES:

HYDRAULIC TABLE TRAVERSE

AUTOMATIC INFEED

PLUNGE INFEED

VARIABLE DWELL @ EACH END OF TABLE MOVEMENT

AUTOMATIC HYDRAULIC RAPID ADVANCE AND RETRACTION

  OF GRINDING WHEELHEAD

SPARKOUT TIMER (1 TO 50 SECONDS)

VISUAL INDICATION OF FEED - A LARGE SCALE MOUNTED ON

  THE TOP OF THE FRONT CONTROL CONSOLE PERMITS

  MONITORING OF THE FEED CYCLE.

DEPTH OF FEED ADJUSTMENT CONTROL (GRADUATED .0001")

AUTOMATIC CYCLE/MANUAL OPERATION SELECTOR

COARSE/FINE FEED CHANGEOVER

INFINITELY VARIABLE WORKHEAD SPINDLE SPEEDS

AUTOMATIC LUBRICATION FOR WHEELHEAD AND CARRIAGE WAYS

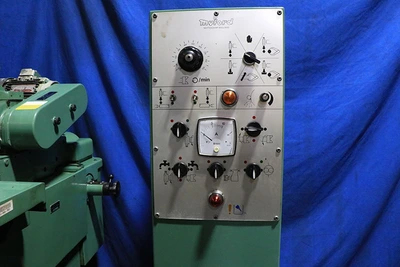

SEPERATE ELECTRICAL CONSOLE CONTROL

EQUIPPED WITH:

COOLANT SYSTEM

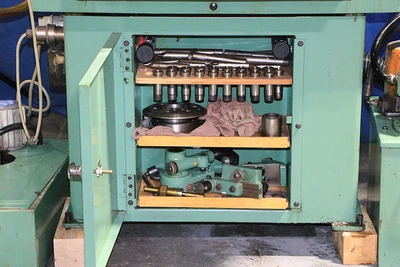

COLLETS IN RACK

DRAW BAR FOR COLLETS

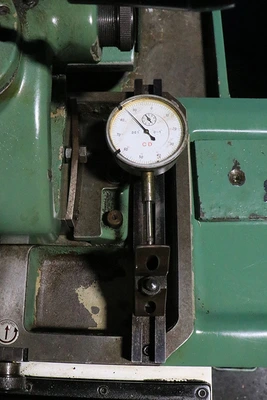

DIAL INDICATOR FOR TABLE SWIVEL

EXTRA WHEEL HUB

TABLE MOUNTED DRESSER

MACHINE IS PRESENTLY WIRED FOR 3/60/440 VOLTS

LINK TO VIDEO: https://youtu.be/zTqpiX-MkNs?si=wzAYY-qsiMlj9xGm

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

** EXCEPTIONAL CONDITION & APPEARANCE - ORIGINAL PAINT **

FOR MORE INFORMATION: Call Andy at 973-497-7600
