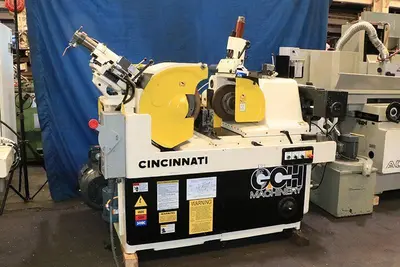

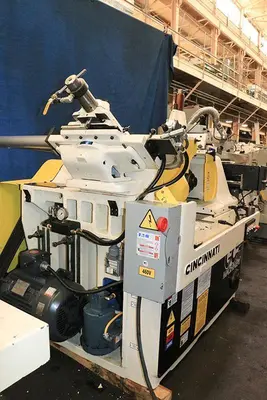

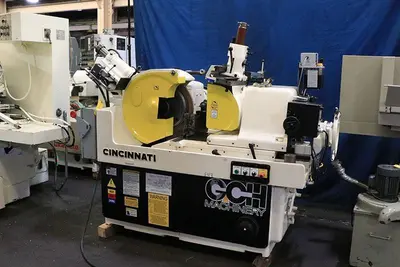

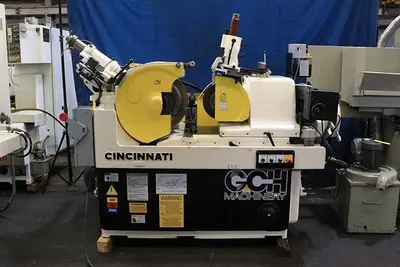

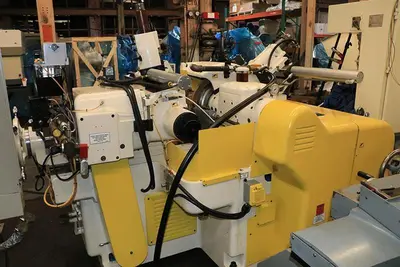

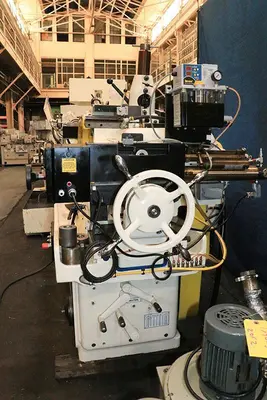

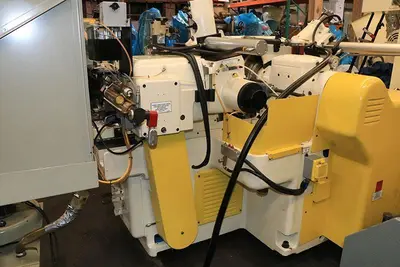

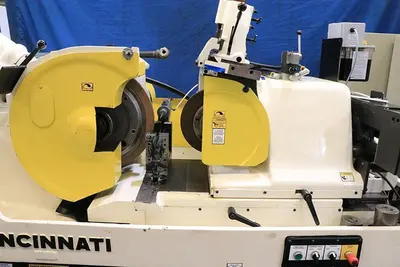

CINCINNATI No. 2 "OM" CENTERLESS GRINDER
SERIAL NO. 2M2H5B-79

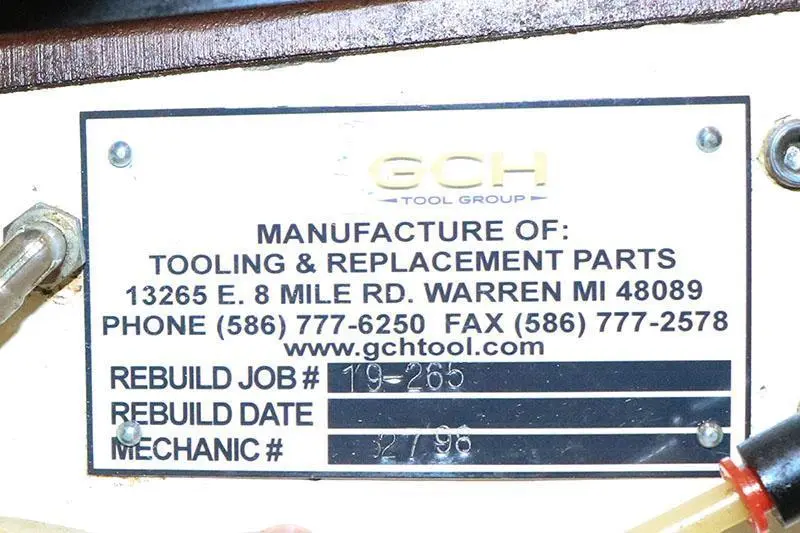

REMANUFACTURED IN 2020 BY GCH MACHINERY
SPECIFICATIONS:
DIAMETER CAPACITY, STD. ........ 1/16" TO 3.5"
LOW THRU FEED WORK REST ........ 2" TO 4.75"
BAR WORK ................. 1/8" TO 2" DIA. 18" LONG

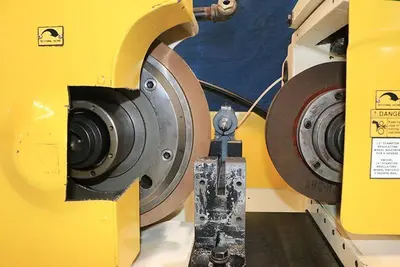

GRINDING WHEEL DIAMETER, MINIMUM ... 16"
GRINDING WHEEL DIAMETER, MAXIMUM ... 20"
GRINDING WHEEL WIDTHS. ........... 4", 6" OR 8"
GRINDING WHEEL HOLE DIAMETER ....... 12"
GRINDING WHEEL MOTOR ............... 20 H.P.
REGULATING WHEEL DIAMETER, MIN. .... 9"
REGULATING WHEEL DIAMETER, MAX. .... 12"
REGULATING WHEEL WIDTH, MAXIMUM .... 8"
REGULATING WHEEL WIDTHS. ........... 4", 6" OR 8"
REGULATING WHEEL HOLE DIAMETER ..... 5"
REGULATING WHEEL SPEEDS, RANGE ..... 12 TO 300 RPM
REGULATING WHEEL MOTOR ............. 1- 1/2 H.P.
APPROX. MACHINE WEIGHT ............. 7,000 LBS.
FLOOR SPACE ........................ 53" x 86"
EQUIPPED WITH:

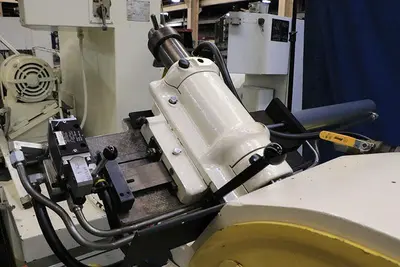

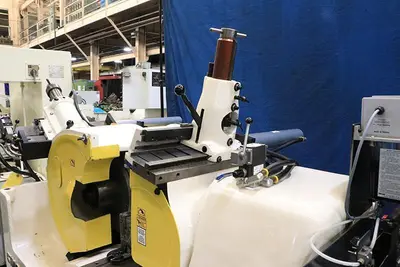

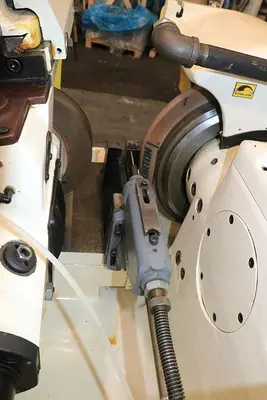

HYDRAULIC CONTOUR DRESSER FOR GRINDING WHEEL,
WITH JOYSTICK

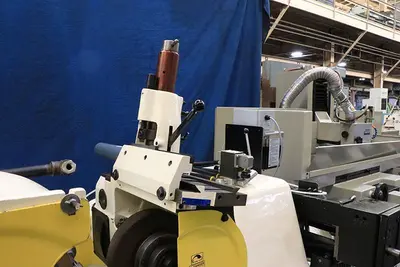

HYDRAULIC CONTOUR DRESSER FOR REGULATING WHEEL,
WITH JOYSTICK

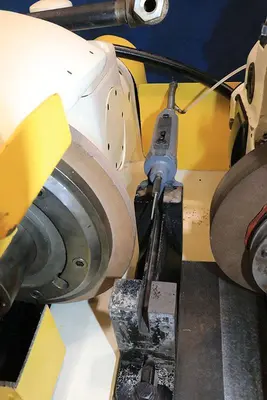

GCH MODEL "CLX" AIR-POWERED AUTO INFEED UNIT

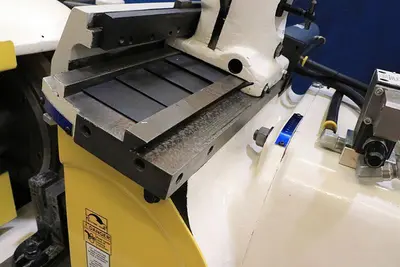

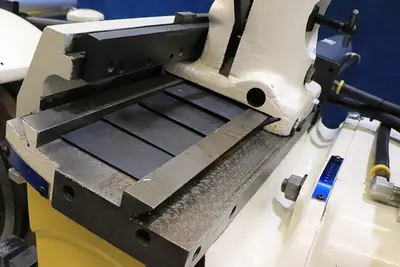

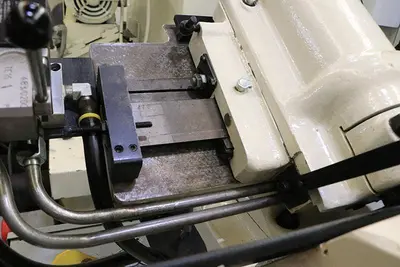

INFEED WORK REST WITHOUT BLADES, FOR 6" WIDE WHEELS
AIR KICKER, SYNCHED WITH THE AUTO INFEED UNIT

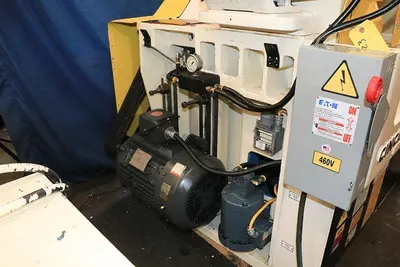

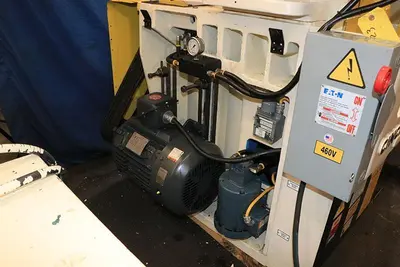

EXTERNAL COOLANT SYSTEM, TANK, WITH "NEW" PUMP
TO BE SUPPLIED
MECHANICAL TRANSMISSION, PROVIDING SET OF SPEEDS,
FOR THE REGULATING WHEEL

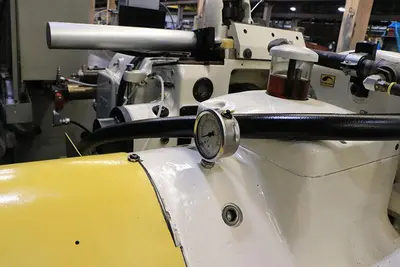

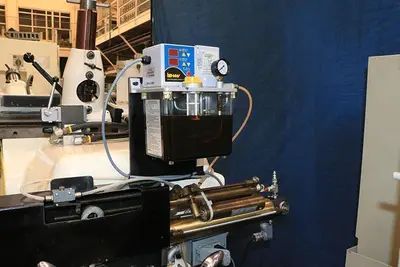

"ISHAW" AUTOMATIC CENTRALIZED LUBRICATION SYSTEM

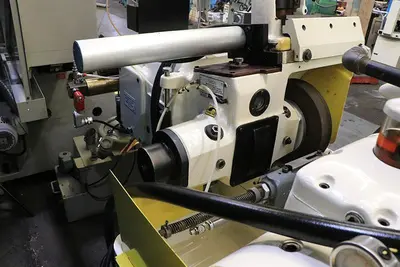

SWIVEL-TYPE REGULATING WHEEL UNIT
- TAPER ADJUSTMENT
FILAMTIC GRINDING WHEEL SPINDLE BEARINGS

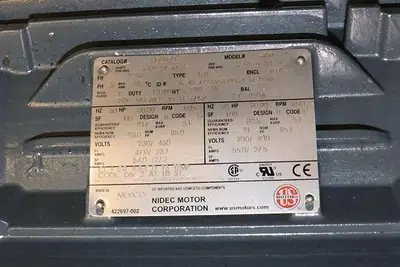

20 H.P./3/60/220-440 VOLT MOTOR
FOR THE GRINDING WHEEL

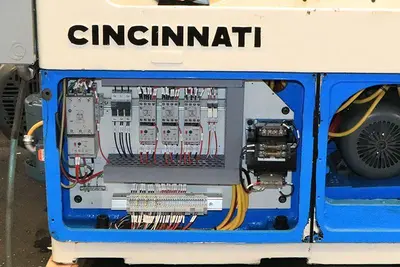

MACHINE IS WIRED FOR 460 VOLTS
