USED 1985 KOMATSU OBS35-2

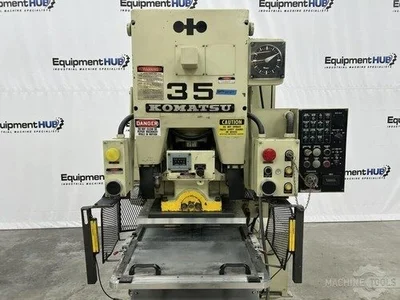

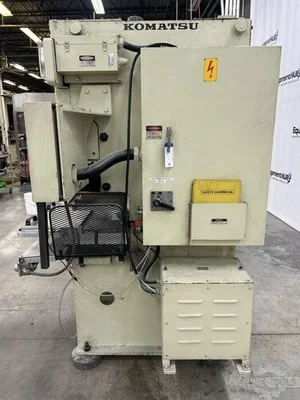

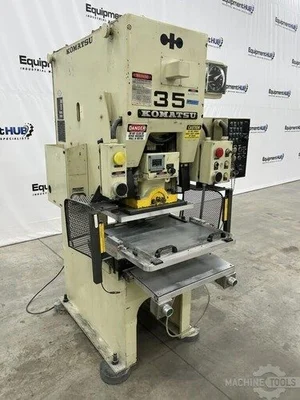

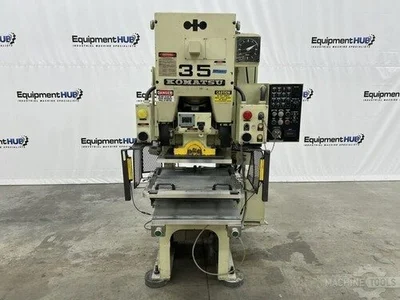

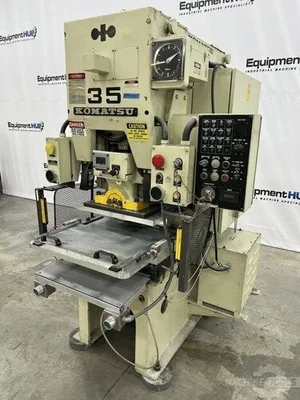

Komatsu OBS35-2 35 Ton Gap Frame Stamping Press

General Info

Stock #: 112260004
Location: Decatur, GA
Brand: Komatsu
Model: OBS35-2
Serial #: 11923
Year: 1985
Approx. Shipping Weight: 5,750 Lbs.
Approx. Shipping Dimensions: 5' L x 4' W x 8' H
Skidding Fee: Skidding Unavailable

Specifications

Stroke: 3.15"
Max Die Height: 8.27" SDAU OVER 3.4" H BOLSTER

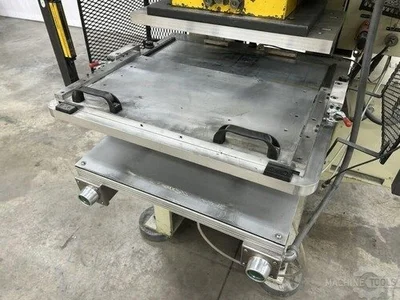

Bolster Dimensions (LRxFBxThickness): 27.56" x 15.75" x 2.95"

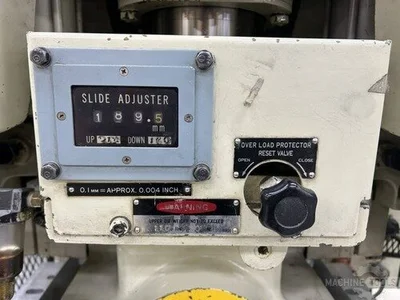

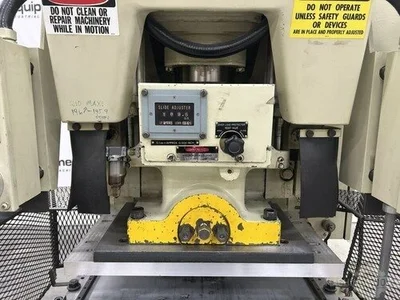

Slide Adjustment: 1.97" - Motorized
Slide Area: 12.99" RL X 9.84" FB
Number of Slide Strokes: 60 - 120 SPM
Clutch: Komatsu Air Clutch / Brake Combination
Motor HP: 5
Electrical: 230/460V(Wired 460)/3PH

Equipped With
Light Curtains

Additional Info
The Komatsu Stamping Press can be demoed upon request.
