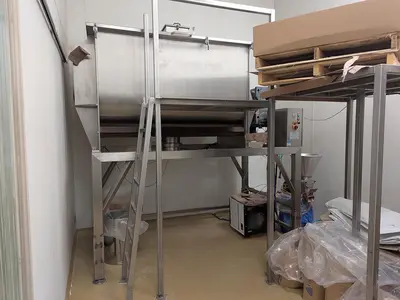

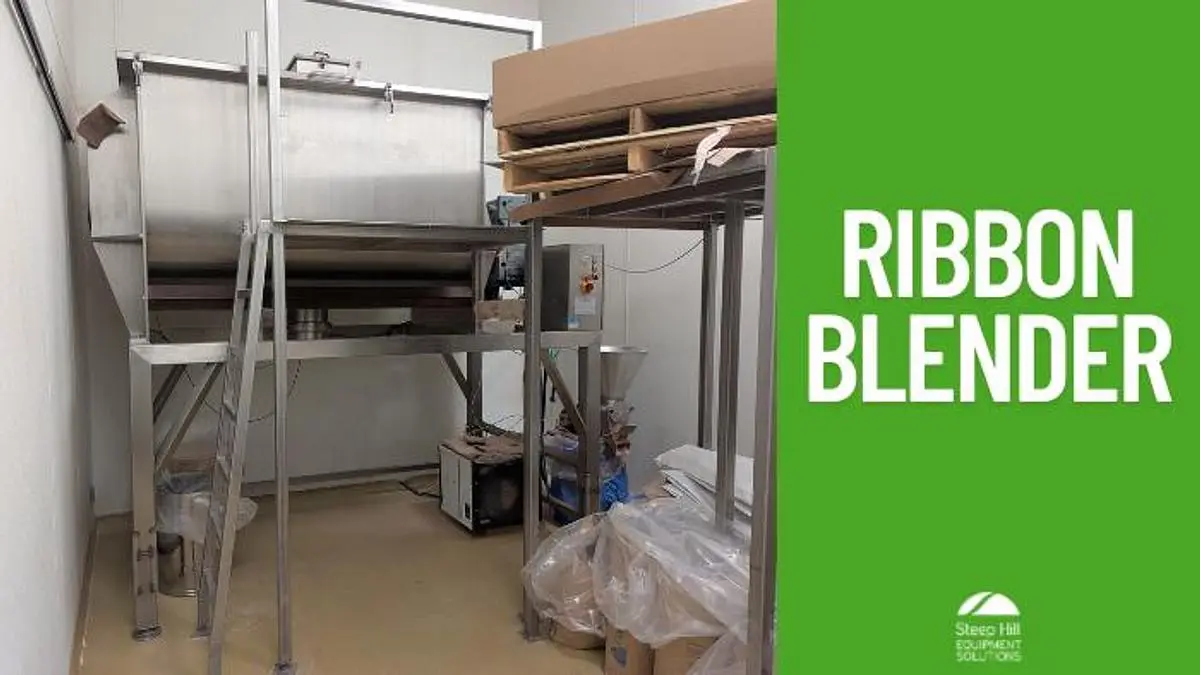

JDA Ribbon Blender

JDA Ribbon Blender
Our ribbon blender is a versatile and widely used mixing equipment designed to blend dry or semi-dry materials uniformly, making it an essential tool in various industries that require efficient and consistent mixing of bulk solids.
It consists of a large, horizontal trough-shaped container with a set of inner and outer helical agitators, often referred to as ribbons, that move the materials in opposite directions. The ribbons are shaped like a double helix and are designed to efficiently mix and blend ingredients.
Specs:

Commonly used in the food, chemical, and Pharma industries for quick mixing of dry granular & powders
Heavy gauge 304 stainless steel construction with welded end plates
Standard packing shaft sealing thus avoiding any type of contamination

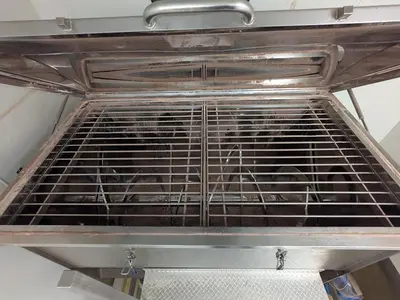

Blending area comes with hinged cover

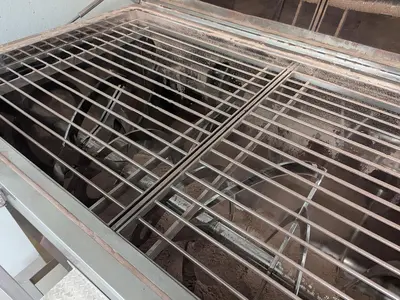

Operator safety grid in stainless steel with safety sensor standard
Butterfly valve for product discharge at bottom centre
Complete stainless steel construction (no paint)
Direct drive heavy duty helicoil drive system
All welds ground smooth for high quality uniform finish
Power: 220, 3 phase, 50/60 Hz. is most common (other voltage available upon request)
Mixing Capacity (kg/lbs): 175/350, 250/500, 400/800, 700/1400, 1060/2120, 1400/2800
Mixing Capacity (liter): 200, 300, 500, 1000, 1500, 2000
Horsepower: 5, 7.5, 10, 15, 20, 30
Power: 220 VAC & 550 VAC
