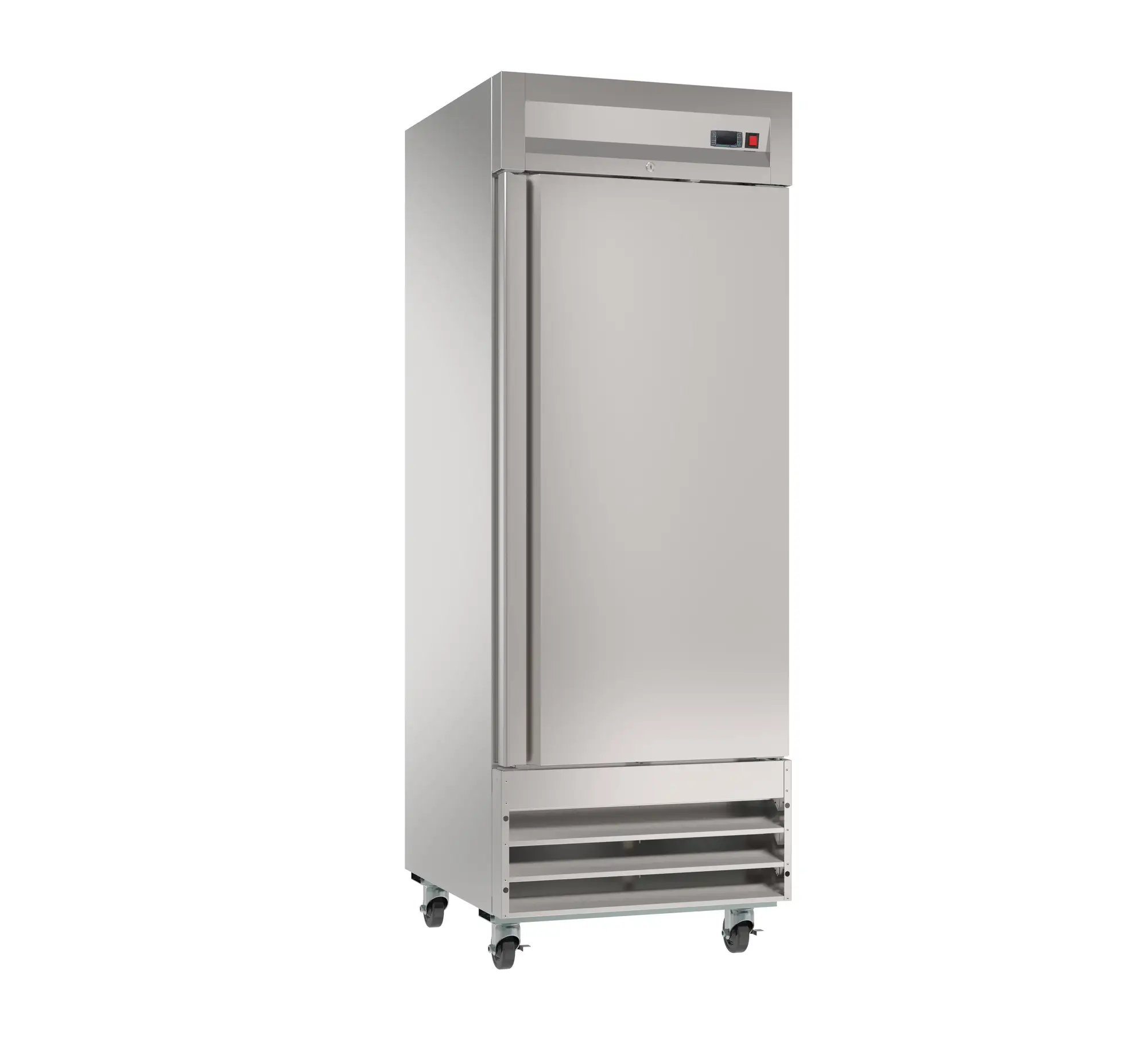

Compass SD19R - 29" One Section Reach In Refrigerator - (1) Solid Door, 115v

The Compass SD19R represents exceptional value in commercial refrigeration, delivering professional-grade performance for restaurants, cafes, and institutional kitchens. This compact 29-inch single-door reach-in refrigerator combines durable stainless steel construction with efficient refrigeration technology to provide reliable cold storage in a space-saving footprint. Engineered for demanding commercial applications, the SD19R offers precise temperature control, easy maintenance access, and energy-efficient operation with environmentally friendly R290 refrigerant.

Professional Refrigeration System

33°F to 41°F Temperature Range - Adjustable temperature control for proper food storage
Digital Display - External digital readout allows easy temperature monitoring
Solid-State Thermostat - Precise electronic controls for consistent performance
R290 Hydrocarbon Refrigerant - Environmentally friendly cooling system
Bottom-Mounted Compressor - 1/5 HP compressor for reliable cooling
Capillary-Tube System - Efficient refrigeration design

Durable Construction

Stainless Steel Exterior - Front and sides feature corrosion-resistant stainless steel
Aluminum Interior - Aluminum back and interior for durability and easy cleaning
High-Density Polyurethane Insulation - Superior insulation retains cold air efficiently
Full-Length Door Handle - Integral stainless steel handle for comfortable access

Convenient Storage & Access

Three Adjustable Shelves - Heavy-duty PVC-coated wire shelves for flexible storage
Self-Closing Door - Door automatically closes to prevent energy loss
90-Degree Door Stay - Door stays open past 90 degrees for easy loading and inventory
Solid Door Design - Right-hinged solid door with secure operation

Easy Maintenance & Service

Removable Rear Panel - Quick access to condenser for cleaning and service
Zero-Clearance Design - Can be placed flush against walls and adjacent equipment
Bottom-Mount Access - Condenser components easily accessible for maintenance

Ideal Applications

This versatile commercial reach-in refrigerator is perfectly suited for:

Quick-Service Restaurants - Compact footprint for limited kitchen space
Cafes and Coffee Shops - Ingredient and beverage storage
Convenience Stores - Prepared food and beverage merchandising
Catering Operations - Mobile food service and event preparation
Institutional Kitchens - Schools, hospitals, and care facilities
Bar and Beverage Service - Ingredient and mixer storage

Performance Specifications

Model: Compass SD19R
Type: Single-door reach-in refrigerator
Width: 29 inches
Depth: 25.5 inches
Height: 82.5 inches
Overall Dimensions: 29"W x 25.5"D x 82.5"H
Number of Doors: 1 solid door (right-hinged)
Shelves: 3 adjustable PVC-coated wire shelves
Temperature Range: 33°F to 41°F
Temperature Control: Solid-state thermostat with digital display
Refrigerant: R290 Hydrocarbon (environmentally friendly)
Compressor: 1/5 HP, bottom-mounted
Electrical: 115V/60Hz/1-phase
Amperage: 2.8 amps
Cord Length: 10 feet
Plug Type: NEMA 5-15P
Exterior Finish: Stainless steel front and sides
Interior Finish: Aluminum back and interior
Insulation: High-density polyurethane foam
Door Handle: Full-length stainless steel integral handle
Certifications: cETLus, ETL-Sanitation
Warranty: 2-year parts and labor; 5-year compressor

Why Choose the Compass SD19R?

The Compass SD19R delivers professional commercial refrigeration performance in a compact, space-efficient design. The solid-state thermostat with digital external display makes temperature monitoring effortless, while the adjustable temperature range from 33 to 41 degrees Fahrenheit ensures proper food safety compliance for a variety of products. The self-closing door design prevents energy waste by automatically closing when opened at angles less than 90 degrees, yet stays conveniently open past 90 degrees to simplify loading and inventory management.

Built with durability in mind, the SD19R features stainless steel construction on the front and sides for excellent corrosion resistance and easy cleaning, while the aluminum back and interior provide additional protection and longevity. The high-density polyurethane foam insulation delivers superior thermal efficiency, reducing energy costs while maintaining consistent internal temperatures. Three heavy-duty, PVC-coated wire shelves offer flexible storage configurations that adapt to your changing inventory needs.

The bottom-mounted 1/5 HP compressor uses environmentally friendly R290 hydrocarbon refrigerant and features a removable rear panel that provides quick access for cleaning and routine maintenance. This zero-clearance design allows the unit to be placed flush against walls and adjacent equipment, maximizing valuable kitchen space. Whether you're operating a busy quick-service restaurant, a growing cafe, or an institutional kitchen, the Compass SD19R combines reliability, efficiency, and value.

Choose Compass for dependable commercial refrigeration that delivers professional performance at an exceptional value.
