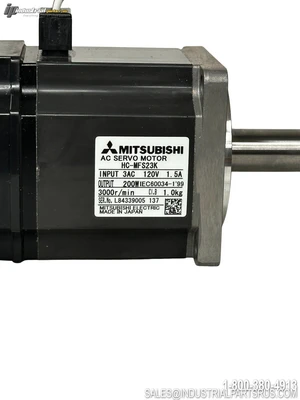

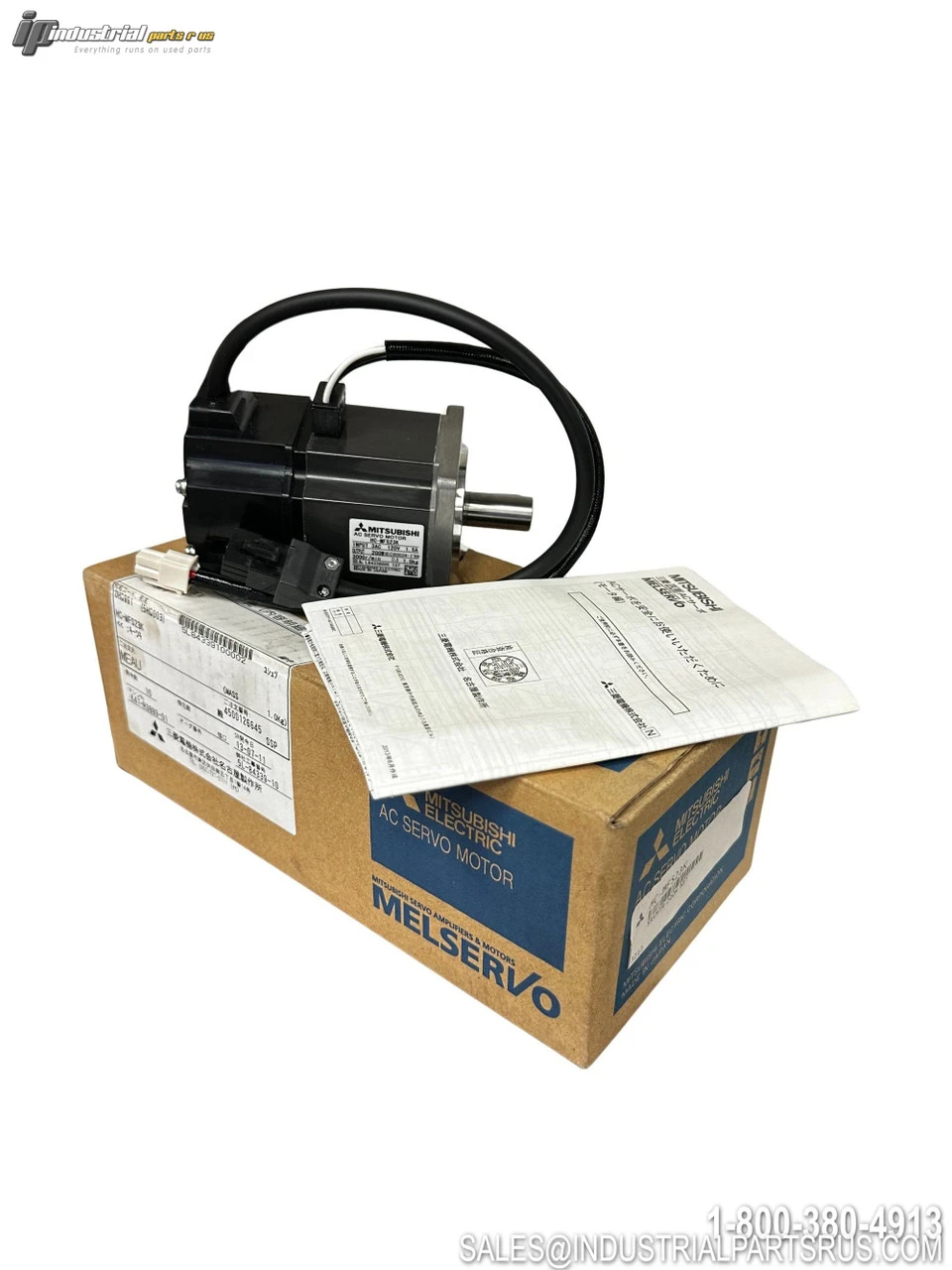

NEW MITSUBISHI HC-MFS23K

The Mitsubishi HC-MFS23K is a precision AC servo motor from the MELSERVO J2S series, designed for ultra low inertia and high-frequency operation applications. This 200W servo motor features a keyway shaft for secure mechanical coupling, making it ideal for positioning systems, packaging equipment, and automated assembly lines requiring precise motion control.
Specification
Value
Brand
Mitsubishi
Model/Part Number
HC-MFS23K
Series
HC-MF/HC-MFS
System
MELSERVO J2S
Motor Type
AC Brushless Rotary Servo Motor
Rated Output Power
200W / 0.2kW
Rated Speed
3000 RPM
Voltage
120VAC (3-Phase)
Rated Current
1.5A
Shaft Type
D-cut Shaft (with flat)
Brake
Built-in Electromagnetic Brake
Encoder
Built-in Absolute Feedback Encoder (17-bit)
Production Status
Discontinued
We warranty all items for 30 days from date of purchase.

SKU: AI0715
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 4.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Stall Torque: 1.9 Nm
Manufacturer: Mitsubishi
Shaft Diameter: 11 mm
Part Number: HC-MFS23K
Shelf: H-11
Model: HC-MFS23K
MPN: HC-MFS23K
Type: AC Servo Motor
