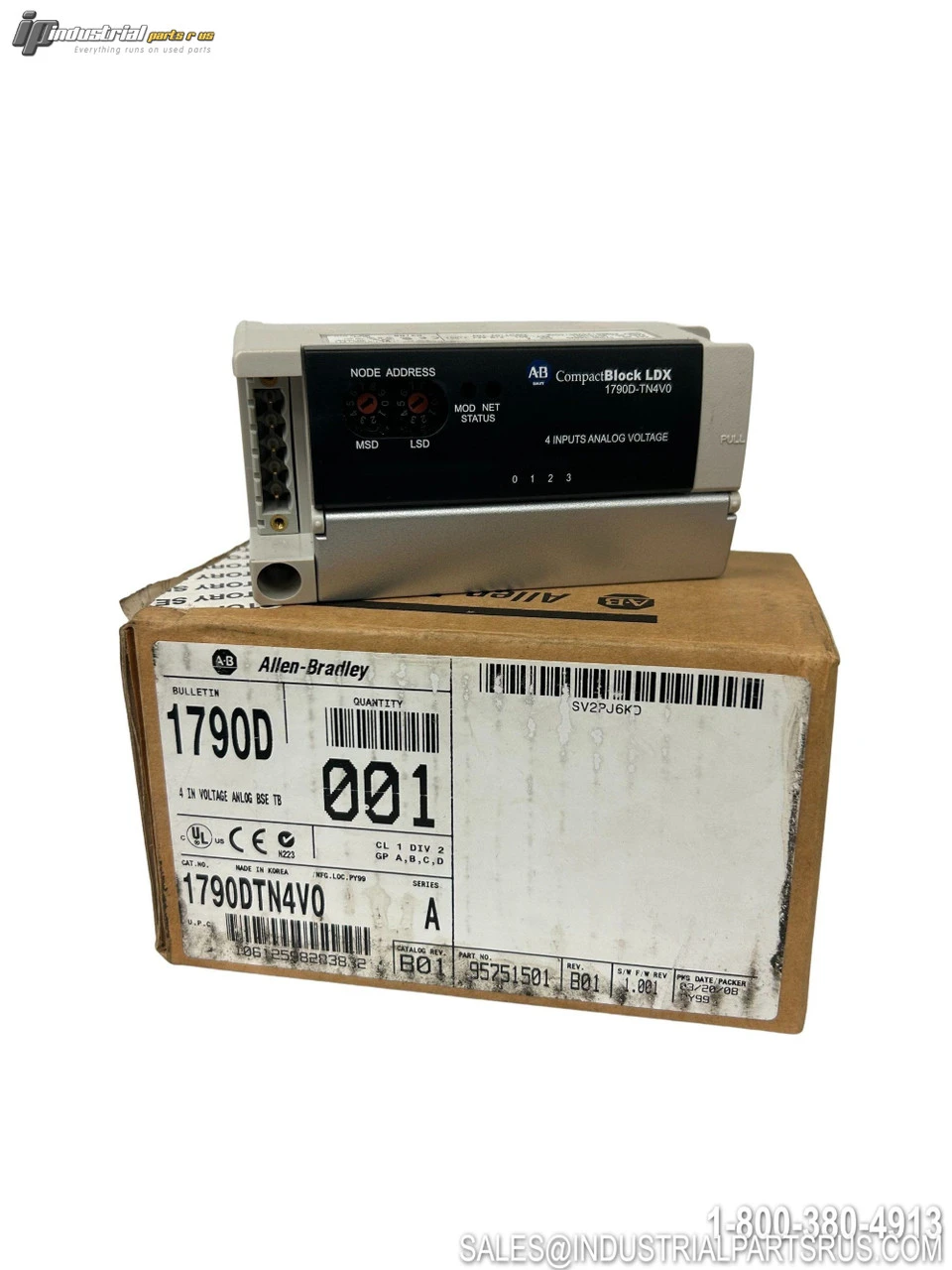

NEW ALLEN-BRADLEY 1790DTN4V0
Overview
Description
The Allen-Bradley 1790DTN4V0 is a CompactBlock LDX analog input base module that provides four single-ended voltage input channels for industrial automation applications. This module features DeviceNet communication protocol and supports up to two discrete expansion modules for flexible system configuration.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
1790DTN4V0
Type
I/O Module
Platform
CompactBlock LDX
Input Points
4
Input Voltage Range
0-10V DC
Input Type
Single-ended Analog Voltage
Resolution
12-bit (4096 counts)
Communication Standard
DeviceNet
Power Supply
24V DC (21.6-26.4V)
Operating Temperature
0-55°C (32-131°F)
Enclosure Type
IP20
Mounting Type
DIN-rail, Panel
Connection Type
Screw-clamp
Expansion Capability
Up to 2 discrete expansion modules
Non-Isolated
Yes
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI0697
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Allen-Bradley
Enclosure Type: IP20
Part Number: 1790DTN4V0
Controller Platform: CompactBlock LDX
Shelf: K-49
Model: 1790DTN4V0
MPN: 1790DTN4V0
Type: I/O Module
